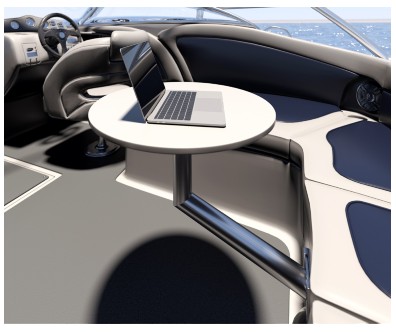

Ottawa™ Table Leg
Part#: OTLX-FF-LL
INSTALLATION INSTRUCTIONS
PARTS/TOOLS NEEDED:
 |  |  |  |

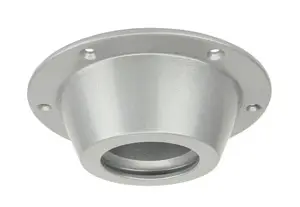

| Table Leg & Wall Base | Table Base (Purchased Separately) | Screws (Not Provided) | Power Drill (Not Provided) |
INSTALLATION CONSIDERATIONS
- To avoid a hazard to children, account for all parts and destroy all packing materials.
- Do not sit on or lean on table, intended for use as a table only.
- The stiffness and rigidity of the wall mounting substrate has a direct effect on the sturdiness of the entire table system.
- 50lb load limit. Do not sit, stand, or lean on table.

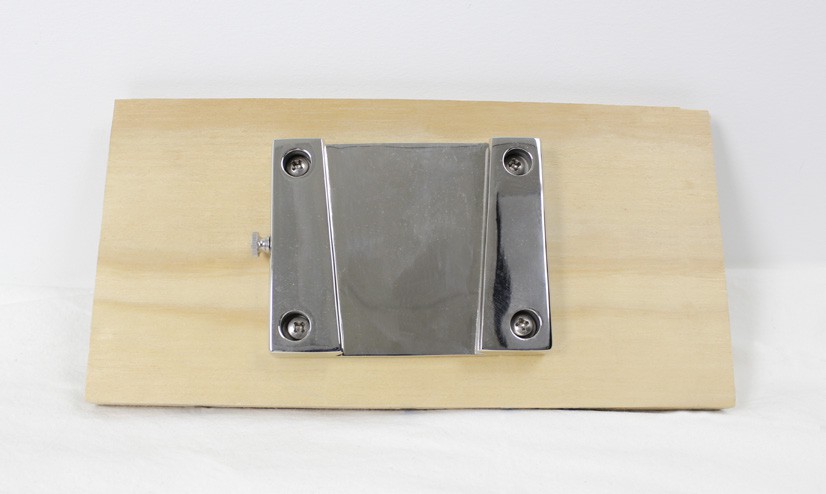

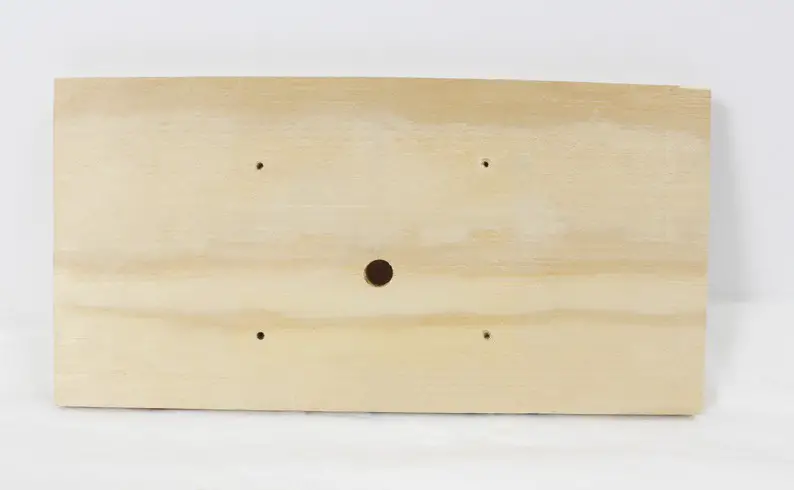

- Find a solid, secure wall to mount your Ottawa leg system. Place the wall base and mark the screw holes, pre-drill. Screw in the base, using screws (not provided) appropriate for mounting substrate.

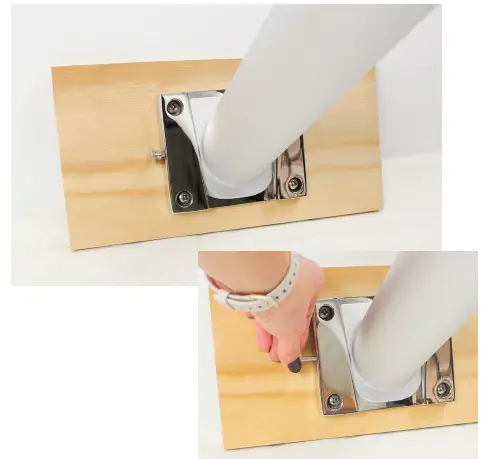

- Slide the leg into the wall base. To remove the leg, pull the locking tab and slide the leg out.
- Mount the table base onto table top (customer provided) using designated screws based on material of the top. Make sure the weight of the table top is evenly supported over the table leg.
Then align the table base to the leg and push down.
3030 Corporate Grove Dr. Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
For warranty information please visit www.itc-us.com/warranty-return-policy
DOC #: 710-00215 • Rev A • 11/15/22
