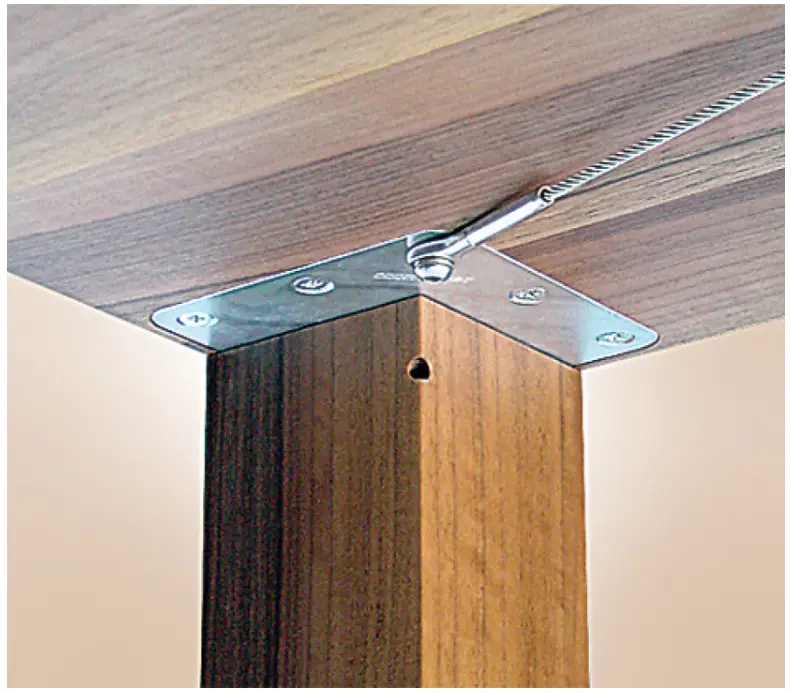

HAFELE 641.06.913 Table Leg
Table leg assembly 120 x 120 mm, hollow, centric

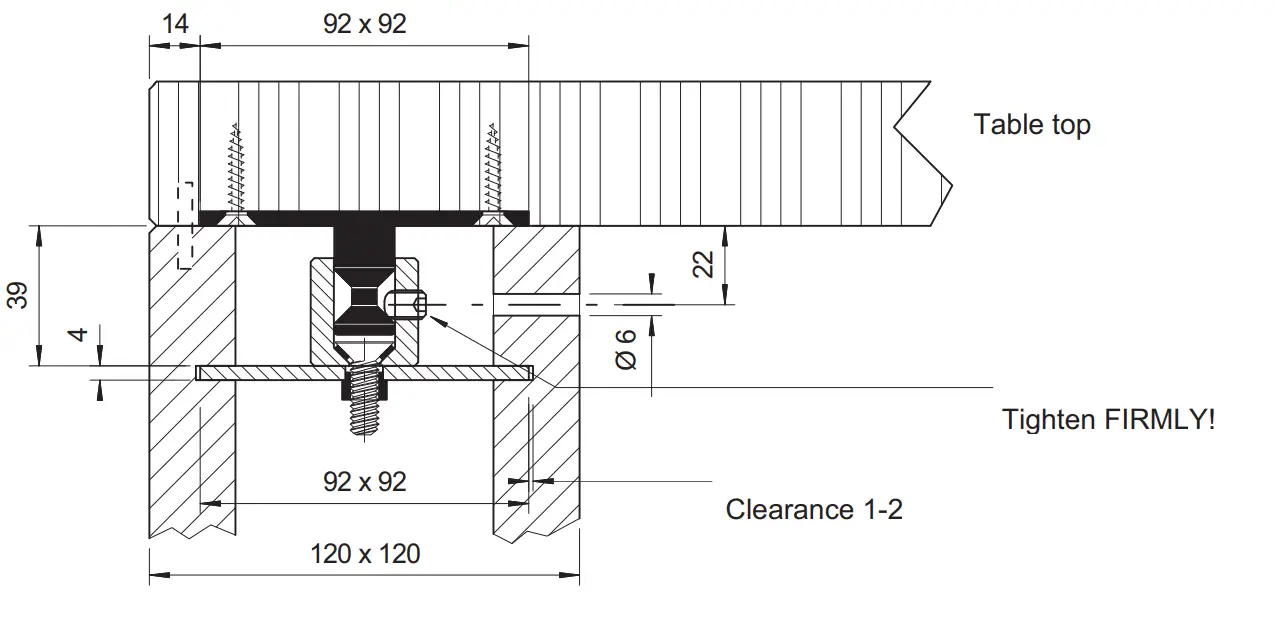

Variant: Inlaid plate

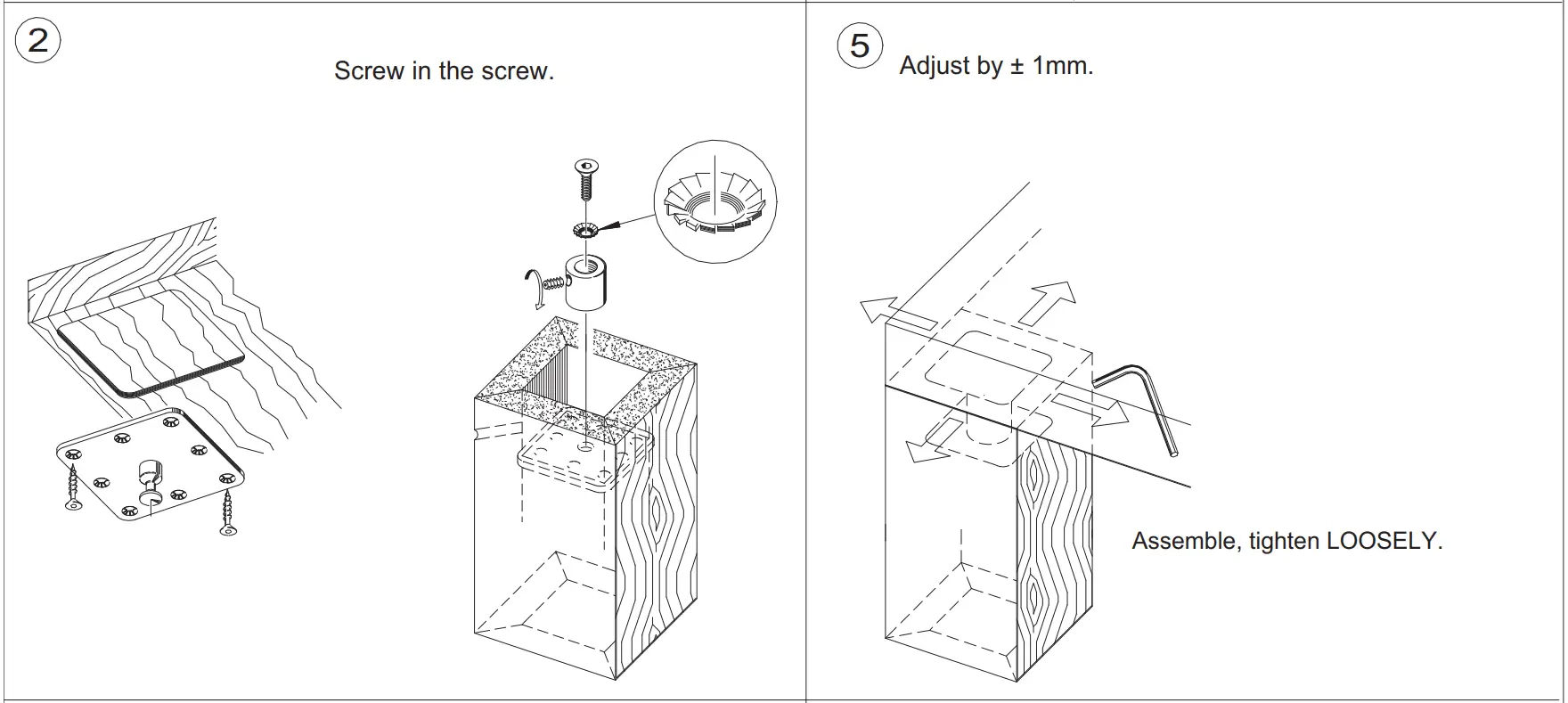

Variant: Screwed-on plate

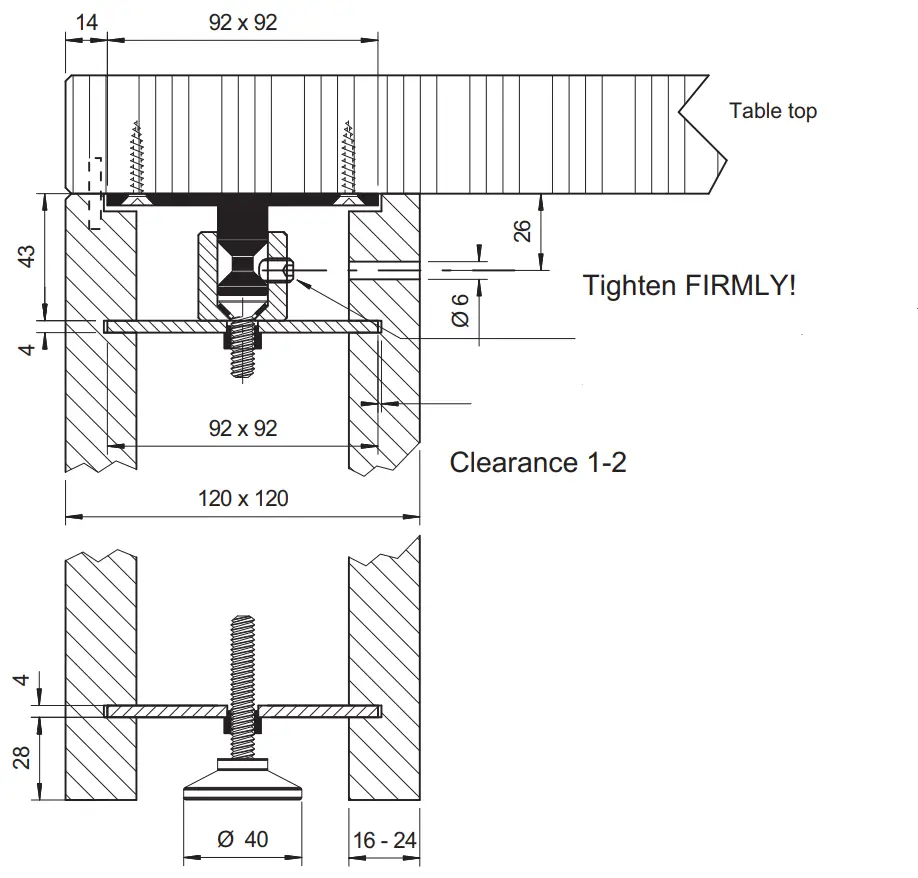

Height adjuster

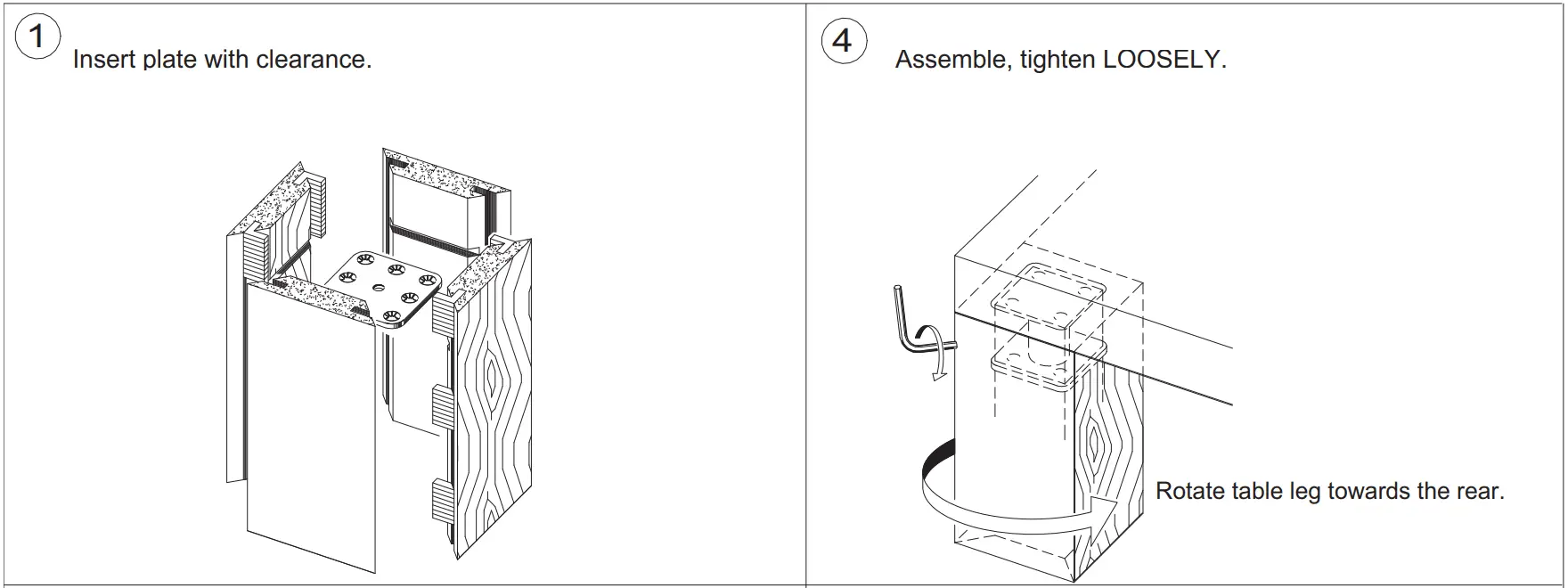

Insert plate when gluing the leg. Plate must have clearance in the groove to avoid cracks in the leg! The clearance allows the leg to be accurately aligned during assembly. If the legs are large or the foot and the table top have a slippery surface (lacquer on lacquer), the outer edge can be secured with a dowel or Lamello connector to prevent twisting.
