ZENDURE SuperMini 10000mAh20W PD Portable Power Bank

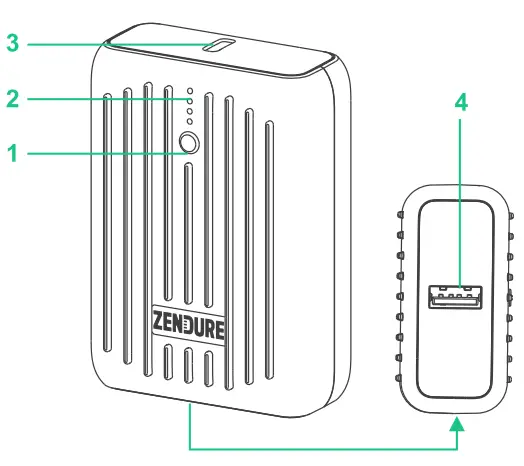

Product Overview
- Power Button
- Digital LED Indicator
- USB-C Port ( Input &Output)
- USB Port (Output)
Check the Power Level
Press the power button, and the LED indicator will display current power level.
 | 0% |
 | <5% |
 | 6%-25% |
 | 26%-50% |
 | 51%-75% |
 | 76%-100% |

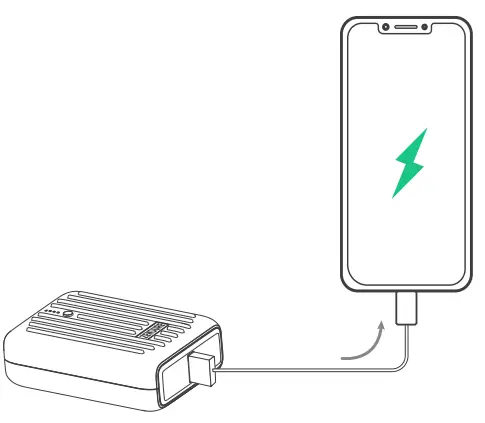

Charger Your Device
- Charge your device with USB-A port
Connect your device to the USB-A output port of SuperMini with a charge/sync cable. As the device is being charged, the LED indicator displays the power level. - Charger Your devices with USB-C PD Port
Connect your device to the USB-C output port of SuperMini with a charge/sync cable. As the device is being charged, the LED indicator displays the power level.

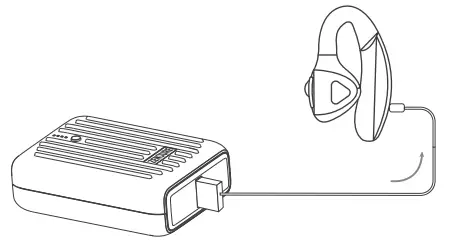

Low Power Mode
Connect your low power device with a charge/sync cable. Double press the power button and the battery will enter low power mode, you can charge an almost unlimited range of low power devices such as smartwatches, bluetooth earphones, fitness bands, etc. Double press again to turn off low power mode.

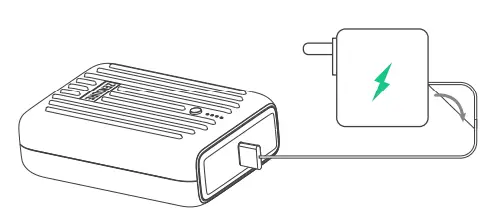

Recharge Your Supermini
Connect the power adapter to the USB-C port of your SuperMini with a USB-C charge/sync cable. During charging, the LED Indicator will flash and display the charging power level.
Caution
Fully charge your Zendureexternal battery before using it for the first time.
Storage in a cool and dry place. Recommend storage temperature: – lOC to 45 C; Operating temperature: o·c to3s·c.
Use origin or certified cables.
Please dispose of discarded products properly according to local regulations.
Stop using and contact manufacturer if the product is excessively hot, is emitting odor, deformed or any other abnormalities.
Be cautious of drops, bumps, abrasions, or other impacts.
Do not clean with harmful chemicals or detergents.
Do not operate your battery in an enclosed or unventilated environment, such as a carrying bag, pocket or purse, to prevent overheating.
Avoid strenuous vibration, impact, extrusion on transportation, and keep the product away from intense sunlight and rain.
Do not expose to moisture or submerge it in liquid.
Keep it away from children under3years old for safety.
Do not disassemble or attempt to re-purpose or modify it in any manner.
Specifications
| Model | ZDSMlOPD |
| Battery Cell | High-Density Lithium Battery |
| Capacity | 10,000mAh /36Wh |
| Input | USB-C: 5V⎓3A, 9V⎓2.22A, 20WMax |
| Output | USB-C: 5V⎓3A, 9V ⎓2.22A, 12V⎓1.5A, 20W Max USB-A: SV=3A, 9V⎓2A, 12V⎓1.SA, 18W Max(ZEN+2.0) USB-C+USB-A: 5V⎓3A |
| Dimensions | 3.1″x2.2″x1.0″ 79mm x 56mm x 26mm |
| Weight | 6.35oz/180g |
ZendureUSAlnc:.
Phone: (800) 219-0960 {US)
Office Hours: Mon – Fri 9:00 17:00 PST
Support/ Contact: www.zendure.com/support
Website: www.zendure.c:om
