Jasiway Vb2130d 78.7 Inch Beige Tv Stand Instruction Manual

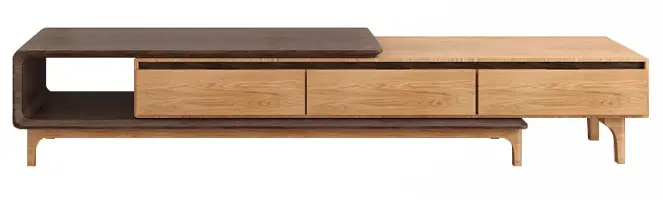

JASIWAY vB2130D 78.7 Inch Beige TV Stand

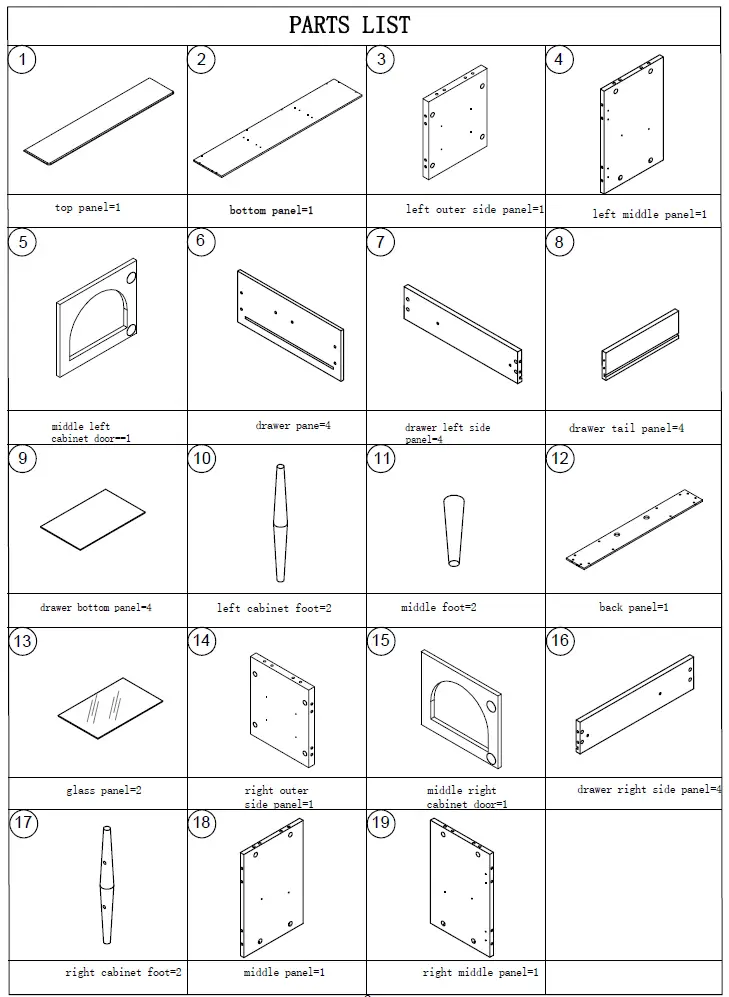

PARTS LIST

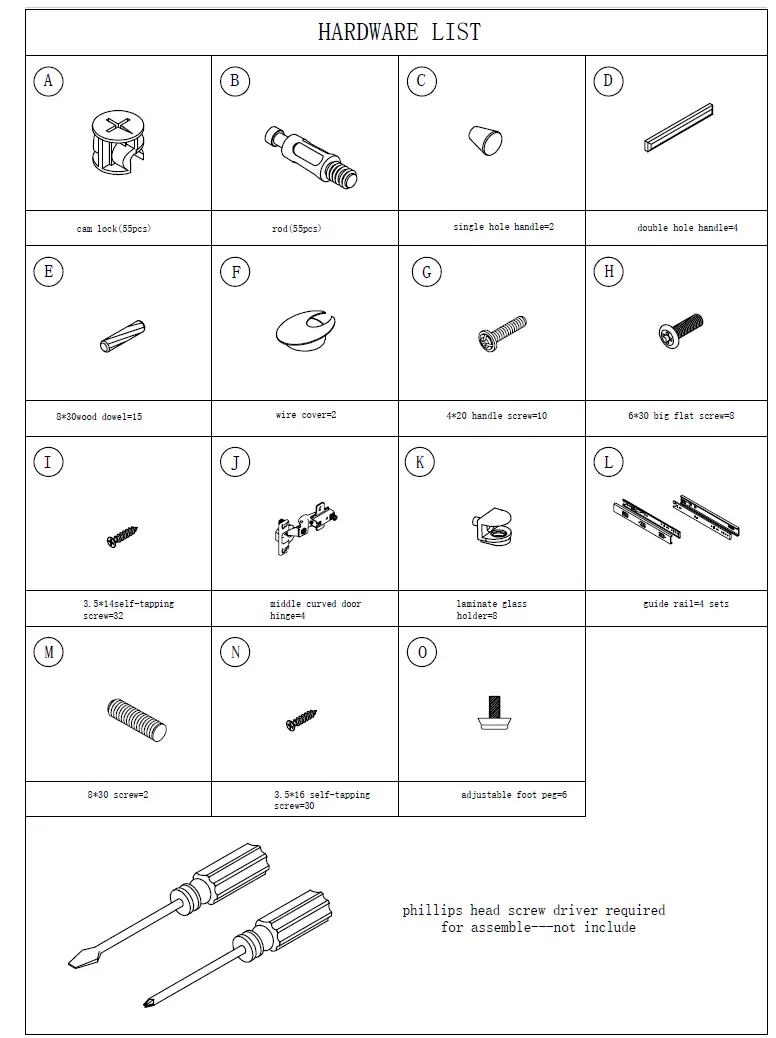

HARDWARE LIST

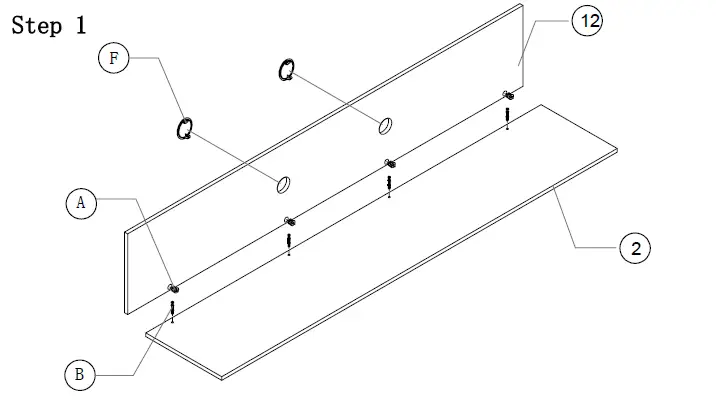

Assemble the bottom panel, back panel

1. Use four pcs(A)cam locks, four pcs(B)rods to connect the back panel and
2. bottom panel.
   Noted: After installation,⑫back panel needs to cover(F)wire cover.

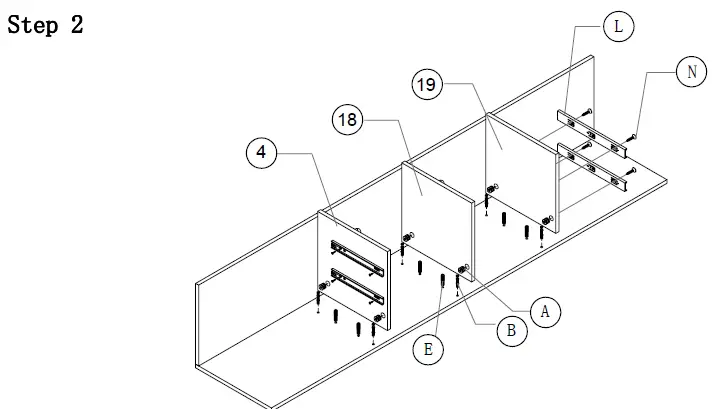

3. Assemble ④left middle panel,⑱middle panel,⑲right middle panel：
   1. Use six pcs(A)cam locks, six pcs(B)rods,four pcs(E)8*30 wood dowels to connect the ④left middle panel、⑱middle panel、⑲right middle panel.
      Noted: Use eight pcs(N)3.5*16 self-tapping screws to install （L）guide rails on the ④left middle panel and ⑲right middle panel.
4. Assemble ③left outer side panel,⑭right outer side panel, ⑩left cabinet foot,⑰right cabinet foot:
   1. Use four pcs(H)6*30 big flat screws to fix two pcs ⑩left cabinet feet on the ③left outer side panel.
   2. Use four pcs(H)6*30 big flat screws to fix two pcs ⑰right cabinet feet on the ⑭right outer side panel.
      Noted: When installing the outer feet, you must distinguish the
      direction.
   3. Use four pcs(I)3.5*14self-tapping screws to install two pcs(L) guide rails on the inside of the ③⑭outer side panel respectively.

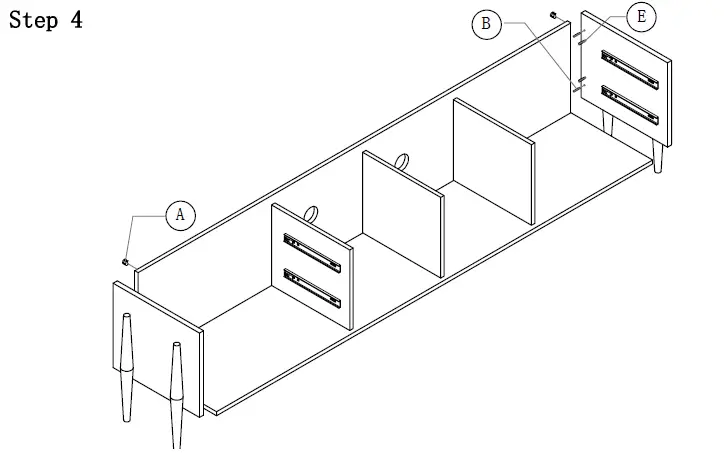

Assemble the outer side panel

1. Use four pcs(A)cam locks,four pcs(B)rods,four pcs(E)8*30wood dowels to connect

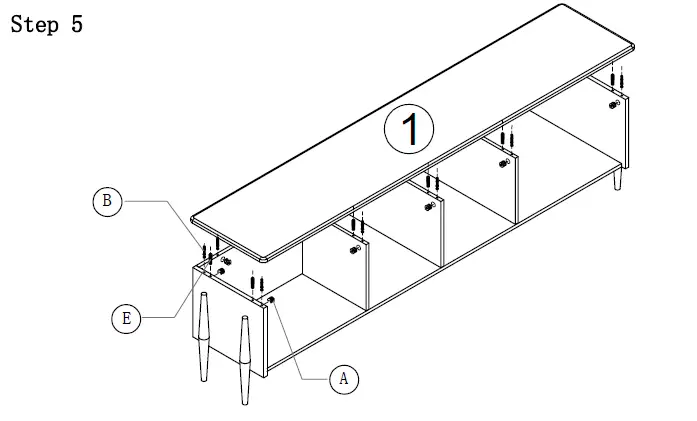

2. Assemble the ①top panel :
   1. Use 14 pcs(A)cam locks,14 pcs(B)rods, and 10 pcs(E)8*30wood dowels to fix the ①top panel.

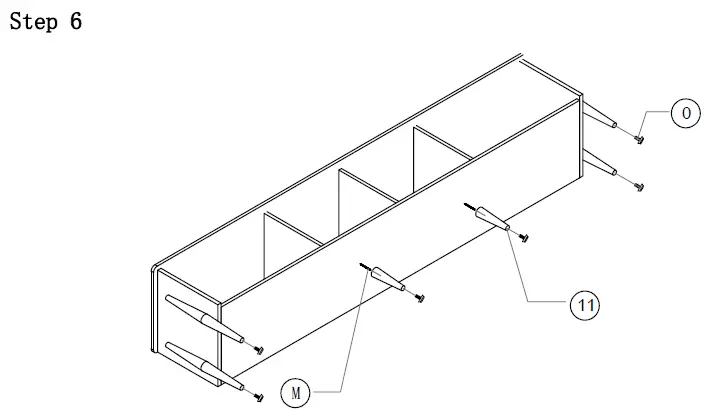

Assemble cabinet feet

1. Use two pcs(M)8*30 screws to fix ⑪ middle feet on ②bottom panel.
2. install (O)adjustable foot peg on each cabinet foot.

Assemble drawers

1. Use four pcs(A)cam locks,four pcs(B)rods to fix ⑦drawer left side panel⑧drawer tail panel，⑯drawer right side panel.
2. Place ⑨drawer bottom panel along the slot of ⑦drawer left side panel,⑧drawer tail panel，⑯drawer right side panel, then use four pcs(A)cam locks, four pcs(B)rods to tighten up ⑥drawer panel.
3. Use four pcs(N)3.5*16 self-tapping screws to install two pcs(L)guide rails on the outside of⑦drawer left-side panel and ⑯drawer right-side panel respectively.
4. Use two pcs(G)4*20 handle screws to install(D)double hole handle on ⑥drawer panel.

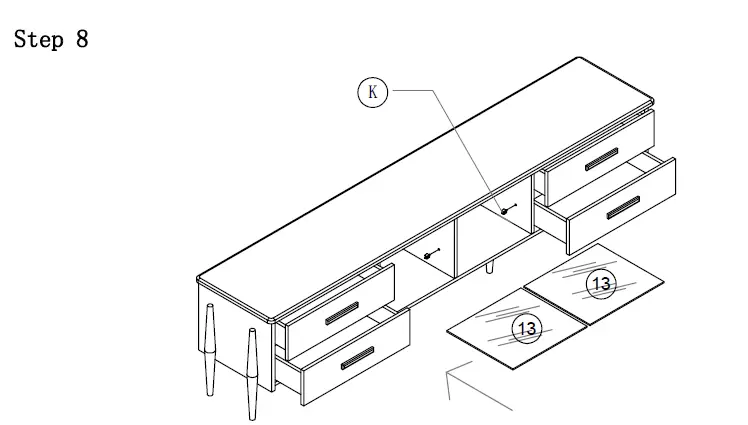

Glass panel installation

1. Install eight pcs(K)laminate glass holders on the ④left middle panel ,⑱middle panel, and ⑲right middle panel.
2. Put in ⑬glass panel, then tighten up the screws of(K)laminate glass holder.

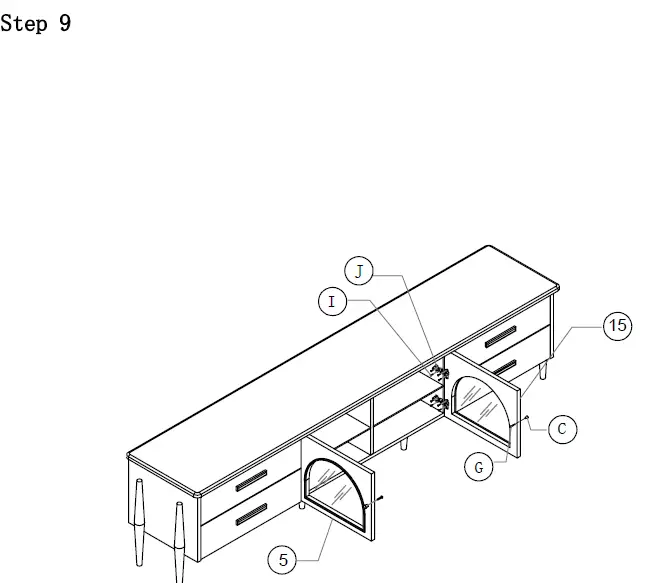

Left or right cabinet door installation

1. Use 16 pcs(I)3.5*14self-tapping screws and four pcs(J)middle curved door hinges to install ⑤middle left cabinet door, ⑮ middle right cabinet door on
   ④left middle panel, and ⑲right middle panel.(one cabinet door use 8 pcs(I)and2pcs(J)to install).
2. Then use two pcs(G)4*20 handle screws to install(C)single hole handle on ⑤ middle left cabinet door and ⑮middle right cabinet door.
