PT4500-SDI High Bright Beam Splitter Teleprompter

Quick Start Guide

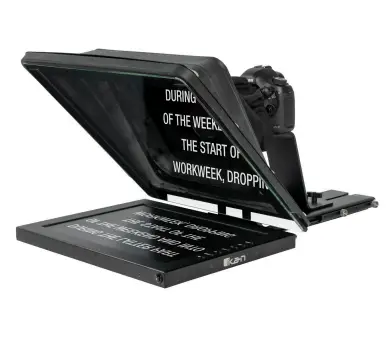

PT4500-SDI / PT4700-SDI
High Bright Beam Splitter Teleprompter w/ 3G-SDI, HDMI, & VGA

What’s Included

1 x Teleprompter Base
1 x Bracket with Glass
1 x Teleprompter Hood with Boot
1 x Monitor
1 x AC Adapter with Cord
1 x PrompterPro Software
1 x Counterweight Set (2 x 2.5 lbs)
2 x D-Ring ¼-20″ Screws
2 x Hex Keys
3 x Different Height Risers

www.ikancorp.com | 1.713.272.8822 | [email protected]

because we’re filmmakers too

Teleprompter Assembly Setup

Step 1

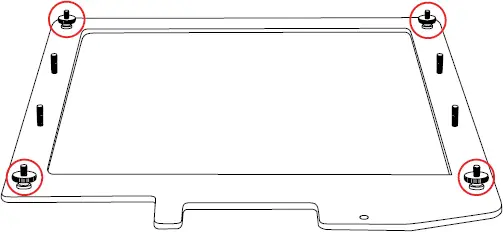

Place the teleprompter glass frame on a flat surface and remove the four screws as shown.

Step 2

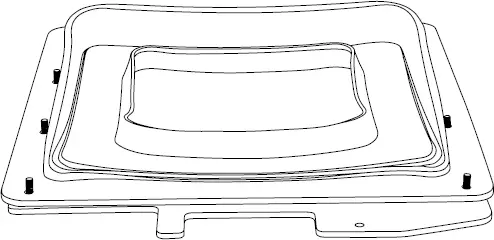

Align and attach the teleprompter hood with the 8 screw pegs from the teleprompter frame.

Step 3

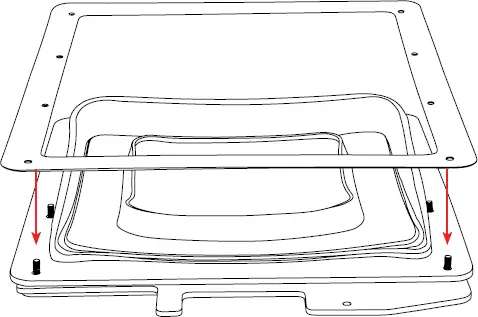

The metal frame is directional. Make sure the thicker side is on top and the slimmer side is on the bottom.

Step 4

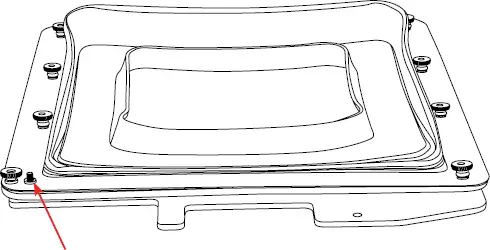

Put the washers on before tightening the screws. The washers and 4 additional screws are inside a bag on the bottom foam.

www.ikancorp.com | 1.713.272.8822 | [email protected]

because we’re filmmakers too

Step 5

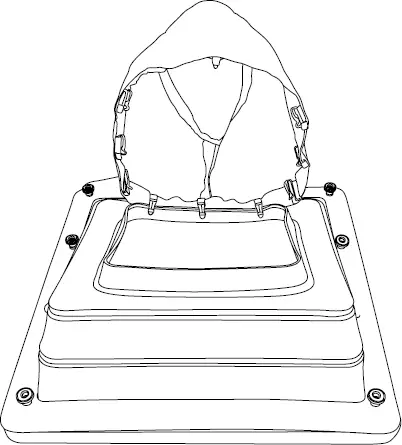

Extend the teleprompter hood open and attach teleprompter boot using the clips. It is suggested to align the seam with the bottom of the teleprompter hood.

Step 6

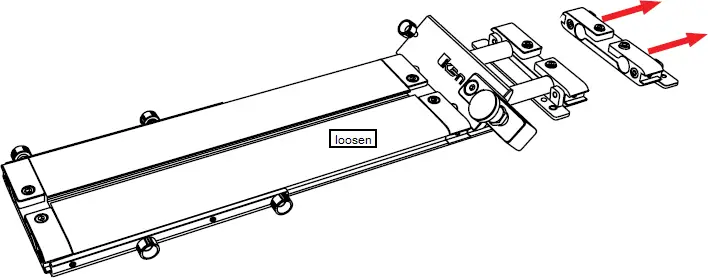

Remove the monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.

Step 7

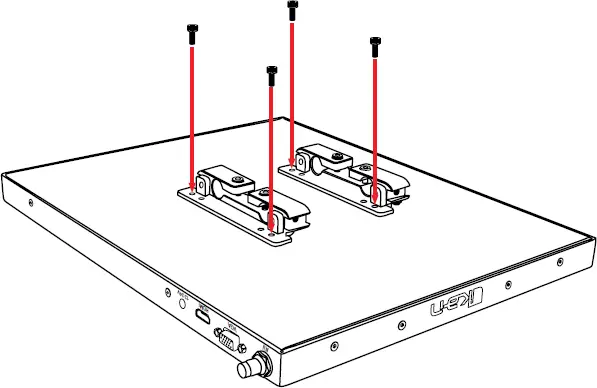

Attach the monitor mounts on the back of the monitor’s VESA compatible threads using the 4 included screws and provided 2mm hex key.

Step 8

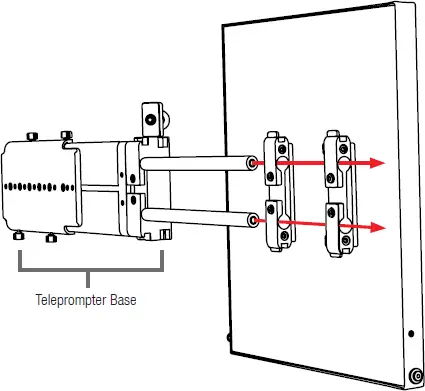

After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor.

*SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.

Teleprompter Base www.ikancorp.com | 1.713.272.8822 | [email protected]

because we’re filmmakers too

Step 9

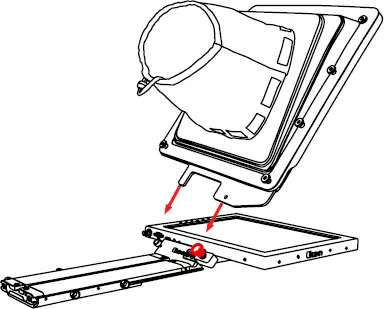

While sliding the teleprompter bracket into the slot of the teleprompter base pull on the red knob to allow the bracket to fully slide in.

Step 10
Once the bracket is in place, tighten the side screw to lock in place. Double check and make sure all the screws are tightened with the included hex keys.

Step 11 (optional)
Should the teleprompter be too front heavy, you can attach the included counter weight on the back of the teleprompter base.

Foam Case
To make your teleprompter more portable, we packed it in a reusable, high-quality foam. The shape and size of the foam was designed to fit into Ikan’s PT-CASE-V2.

** DO NOT THROW AWAY FOAM CASE **

www.ikancorp.com | 1.713.272.8822 | [email protected]

because we’re filmmakers too

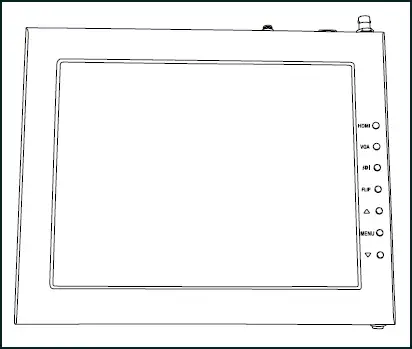

Monitor Ports

3G-SDI – Serial Digital Interface Connection
VGA – Video Graphics Array DE15 Connection
HDMI – High-Definition Multimedia Interface Input Connection
Power Port – 12-24v Input

HDMI – Switch HDMI input
VGA – Switch to VGA input
SDI – Switch to 3G-SDI input
Flip – Toggle image flip
(Can be set to horizontal, vertical, or both via menu)
Up Arrow – Toggle up to adjust setting
Menu – Access to monitor settings
Down Arrow – Toggle down to adjust setting

Monitor Menu Settings

Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma Hue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGB Setup – Manually configure RGB
Return
System Config
Menu Duration – Set duration of how long menu stays
on screen
Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is
native resolution, 16:9 will create black bars)
Flip-H – Assign toggle button to flip image horizontally
Flip-V – Assign toggle button to flip image vertically
Reset – Factory reset
Return
PC Setup (Only available for VGA)
H-Position – Adjust horizontal position
V-Position – Adjust vertical position
Auto – Monitor automatically adjust position
Return
Exit

How to set-up FLIP button feature:

1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to “ON”
5. Exit MENU
6. The FLIP button should now be activated and can be
   pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both
   Horizontal and Vertical flip

Watch our VIDEO TUTORIAL on how to assemble Ikan Professional Telepromopters:
https://youtu.be/5TjIxzBc_Vc

Specifications

PT4500-SDI

PT4700-SDI

Optional Accessories

PT4500-G Replacement Glass for both PT4500-SDI / PT4700-SDI
PT-CASE-V2 Rolling Hard Case for PT4500-SDI / PT4700-SDI Teleprompter

Replacement Glass for both PT4500-SDI / PT4700-SDI Rolling Hard Case for PT4500-SDI / PT4700-SDI Teleprompter

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re filmmakers too

Learn More

More dynamic information at official website: www.ikancorp.com

Support

Contact email: [email protected]
