PT4900-PTZ Professional 19 Inch High Bright PTZ Compatible Teleprompter
User Guide Quick Start Guide

PT4900-PTZ Professional 19 Inch High Bright PTZ Compatible Teleprompter

PToH900-PTZ
Profesional 19” High-Bright PTZ-Compatible Teleprompter

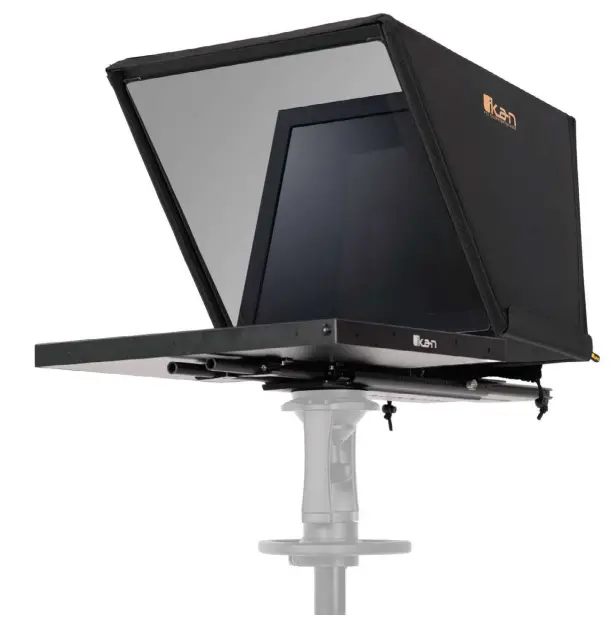

OVERVIEW

The 19” PTZ Teleprompter from Ikan is a professional solution for teleprompting with PTZ cameras. The package provides an extra-wide hood assembly to allow considerable movement of the camera within the wide beam splitter glass. The PTZ Teleprompter features a 19” 1000 cd/ mz? monitor, 70/30 20”-wide beamsplitter glass, and a 25’ reading range. The teleprompter is designed for use with a wide range of PTZ cameras, a s the wide beamsplitter provides for a wide amount of left-right panning. The teleprompter includes a base system that can be easily shifted forward and backwards, which enables mounting the camera to the prompter without requiring counterweights.
Please note that the PTZ4900-PTZ includes parts to build two types of teleprompter systems, a standard 19” Teleprompter that is compatible with various types of mirrorless and broadcast cameras, and a 19” PTZ teleprompter that is compatible with a wide range of PTZ cameras. This Quick Start Guide will show you how to set up the 19” Teleprompter for PTZ cameras. For instructions on how to set up the PT4900 for broadcast o r mirrorless cameras, please refer to the PT4900 Quick Start Guide on our website.

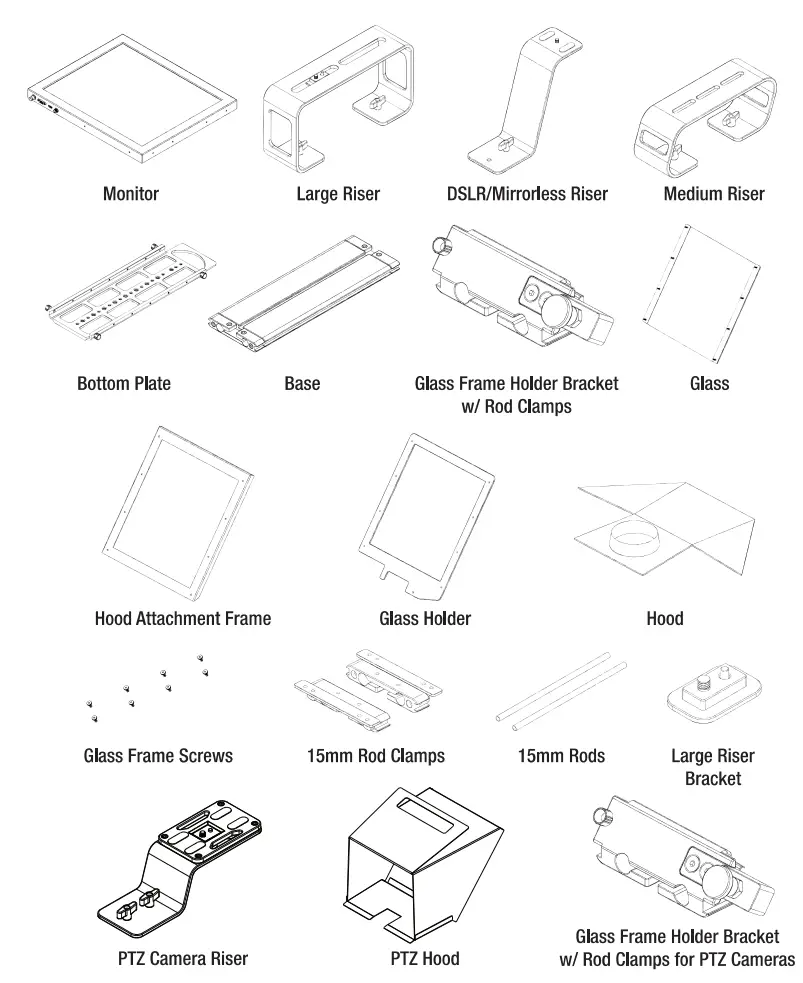

What’s Included

Teleprompter Assmebly Setup

Step 1

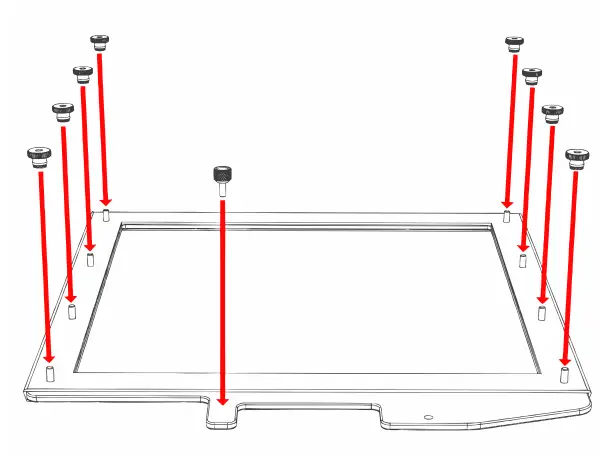

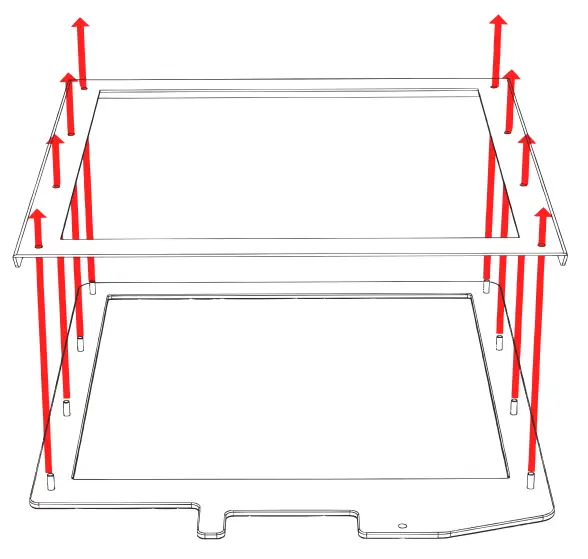

Place the Hood Attachment Frame over the Glass Holder. Then place the glass against the Glass Holder. Make sure the screws pass through the holes on the both the Hood Attachment Frame and the Glass Holder.Step 2
Secure the Glass Holder b y fastening the knurled nuts to the screws as pictured below. Step 3

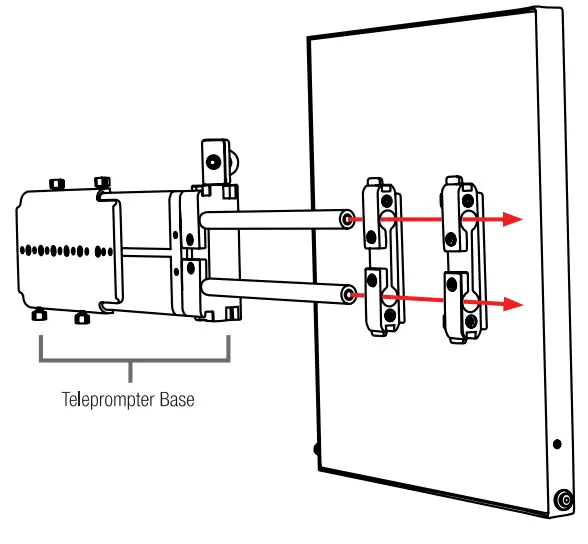

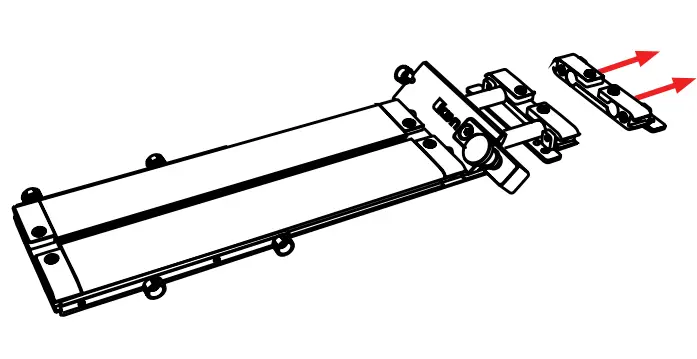

Remove the monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.

Step 4

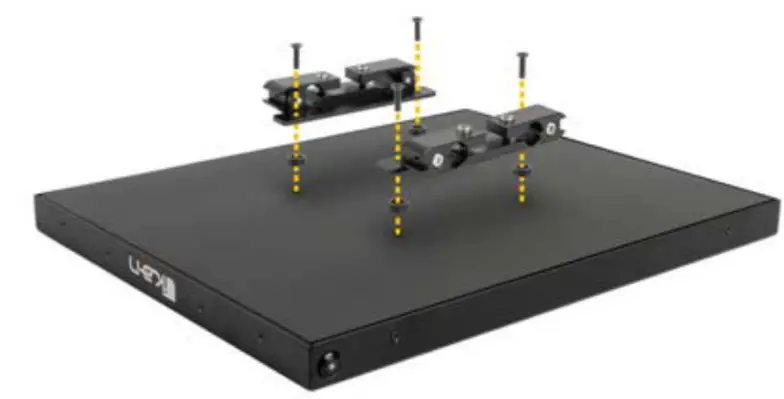

Put the washers on before tightening the screws. The washers and 4 additional screws are inside a bag on the bottom foam.

Step 5
After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor. *SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base. Step 6

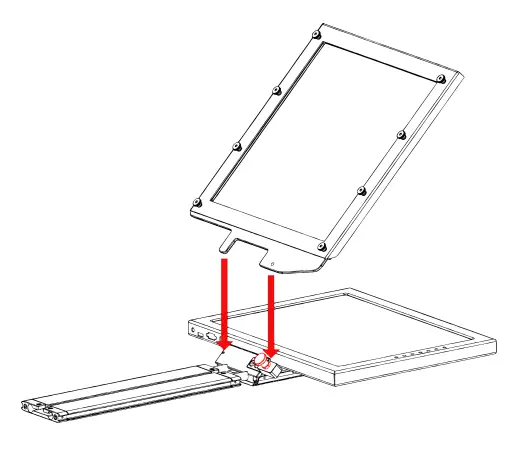

While sliding the teleprompter bracket into the slot of the Glass Frame Holder Bracket, pull on the red knob to allow the bracket to fully slide in. Step 7

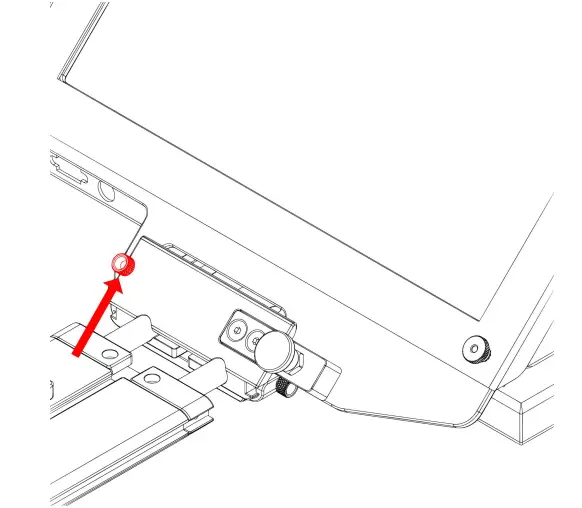

Once the bracket is in place, tighten the side screw to lock i n place. Double check and make sure all the screws are tightened with the included hex keys.
Step 8

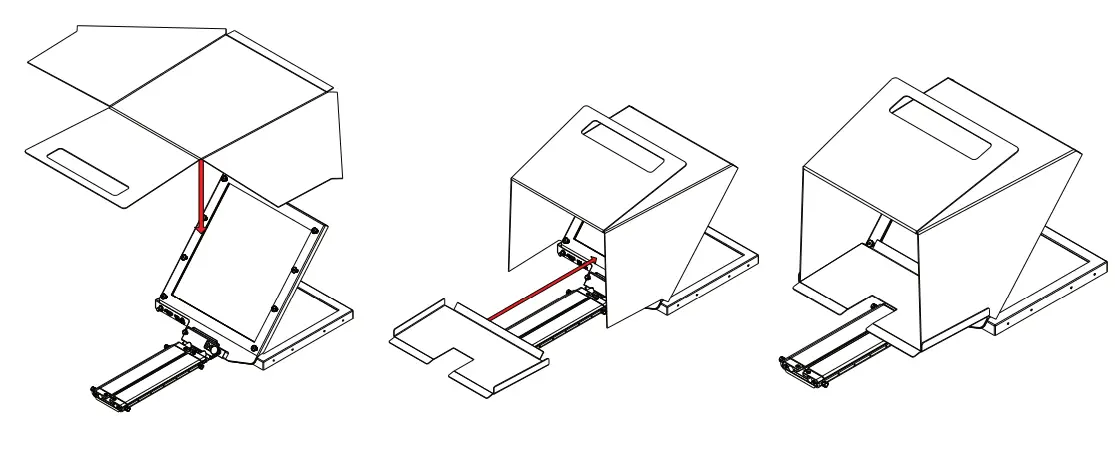

Fold the flaps of the Hood alongside the edges of the Hood Attachment Frame. The flaps of the Hood are magnetic so they will automatically attach. Connect the bottom part of the hood by attaching the magnetic flap to glass frame holder. Connect the velcro straps to the sides of the hood.

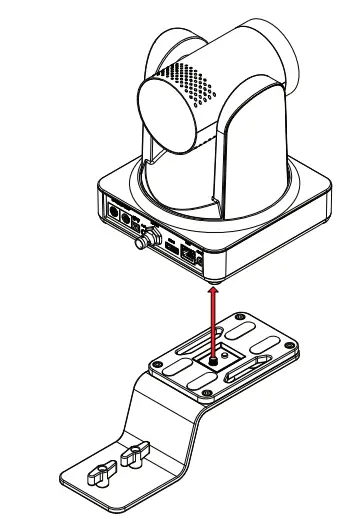

Step 9-A: Connecting the PTZ Riser to the Ikan OTTICA
To connect the PTZ Camera Riser to the Ikan OTTICA camera, fasten the %4-20 screw on the PTZ Riser Plate to the thread on the bottom of the OTTICA camera.

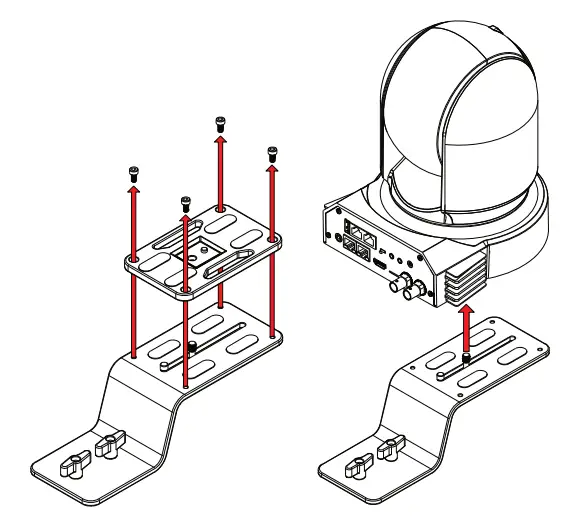

Step 9-B: Connecting the PTZ Riser to other PTZ Cameras
To connect the PTZ Camera Riser to the other PTZ cameras, Remove the plate on top of the PTZ Riser by unfastening the f o u r screws on the surface of the plate. Once the plate has been removed, fasten the 4-20 screw on the PTZ Riser Plate to the thread on the bottom of the PTZ camera. Step 10

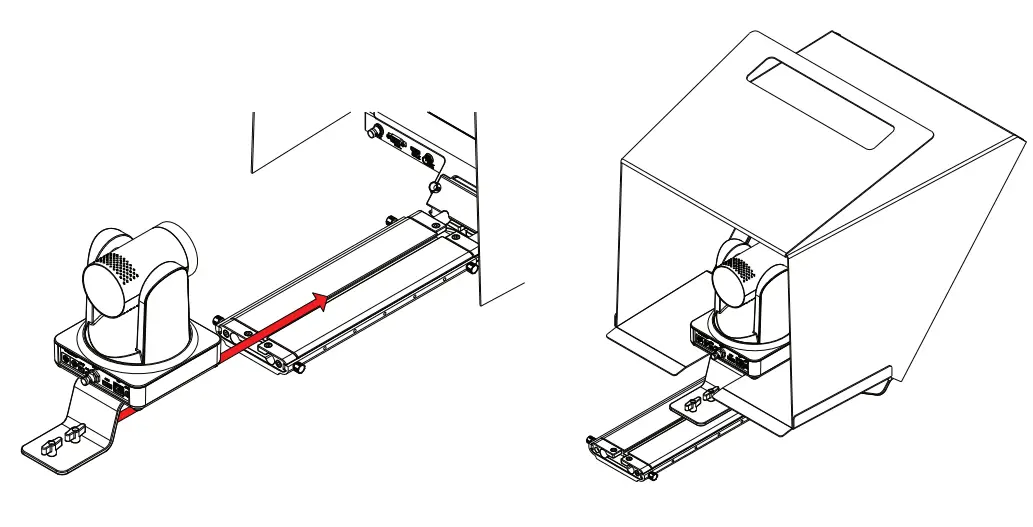

Set the PTZ camera inside the hood b y aligning the screws on the riserplate to the slot on the Base. O n c e the screws are aligned, S l i d e the r i s e r plate
into the Base.

Step 11

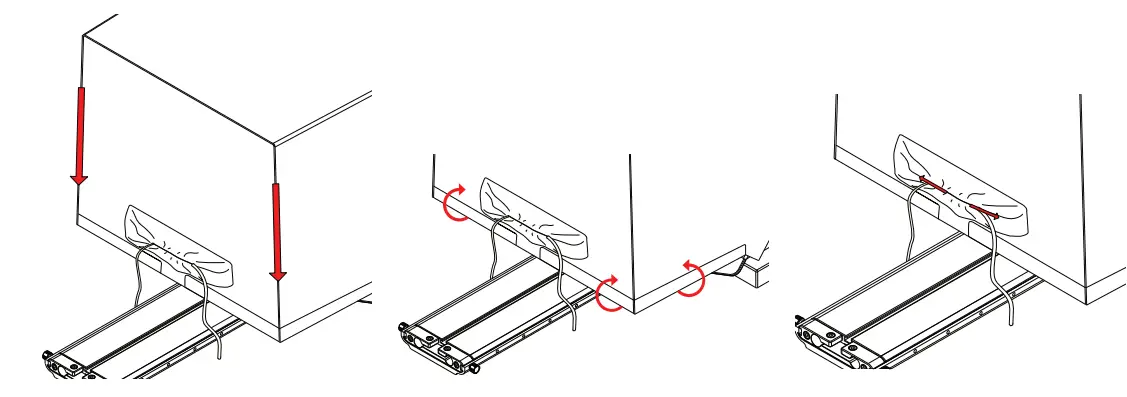

To prevent light from leaking through the hood, seal both zippers down, attach the velcro straps along the back and sides of the hood. Connect the cables to the back of your PTZ camera by putting the m through the slot on the back of the PTZ Hood. Once your cables are connected, tighten the draw string on the back of the PTZ Hood.

Step 12

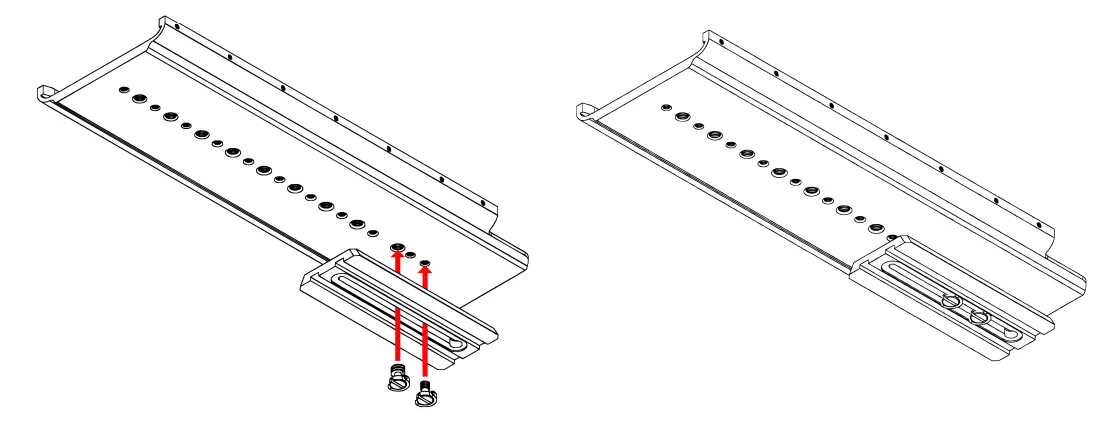

Mount your own tripod plate to the bottom plate by aligning the 1/4-20 and/or 3/8-16 screws and fastening them to the Bottom Plate . It is recommended that you connect your tripod plate to front of the Bottom Plateso that you can balance your teleprompter easier. Once your tripod plate is connected to the Bottom Plate , mount the tripod plate to your tripod head.

Step 13

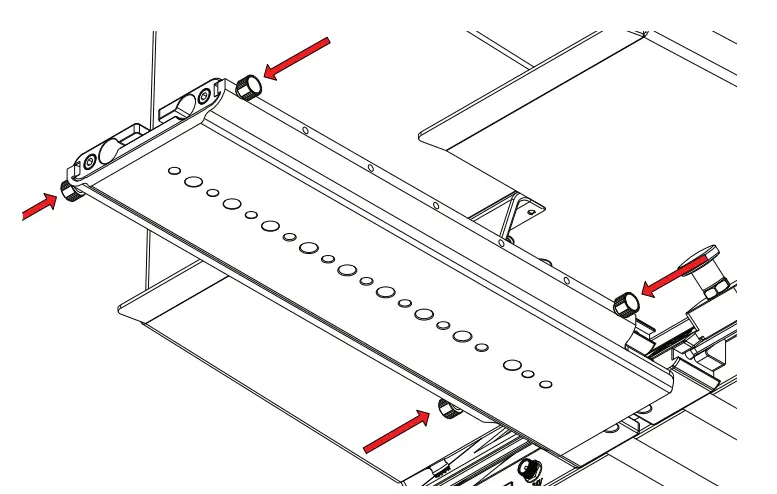

In order to properly balance the teleprompter , loosen the 4 screws on the bottom plate and slide the entire teleprompter system back or forward until the center of gravity has been determined. Once the center of gravity has been determined, tighten the thumb screws to keep the base from sliding. Step 14

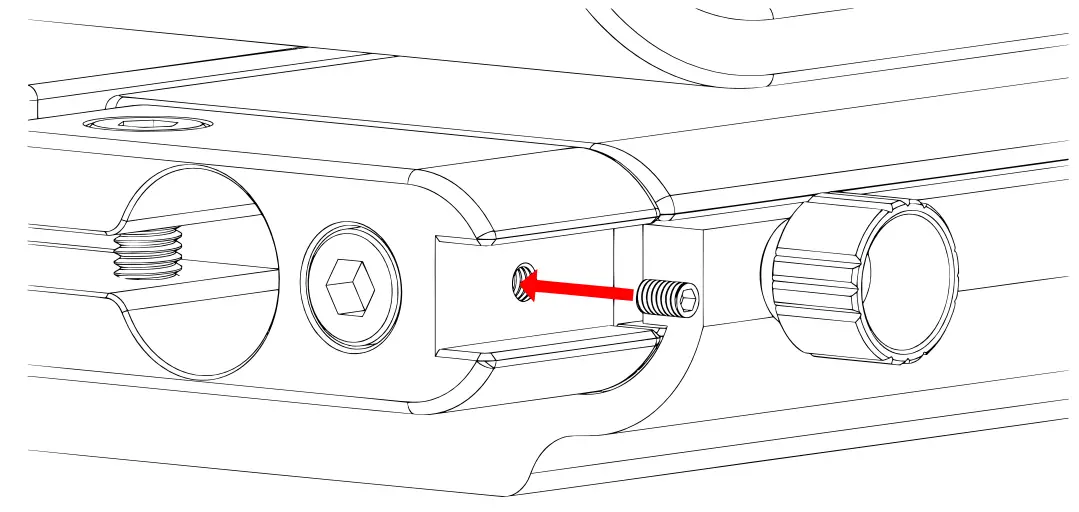

To secure your teleprompter system, insert the included headless screws into the threads behind and in front of the Base.

Step 15
The headless screws should be inserted to the threads as pictured below.

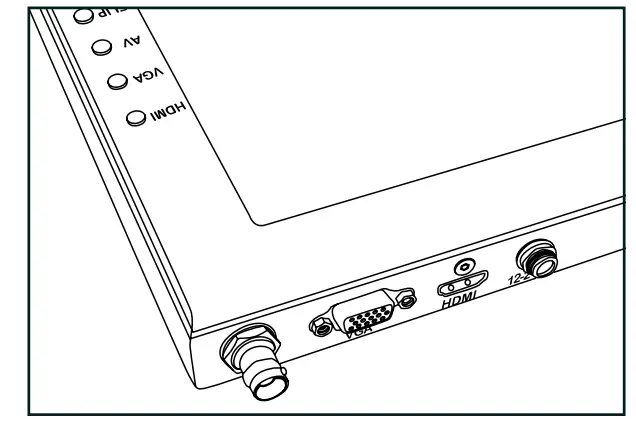

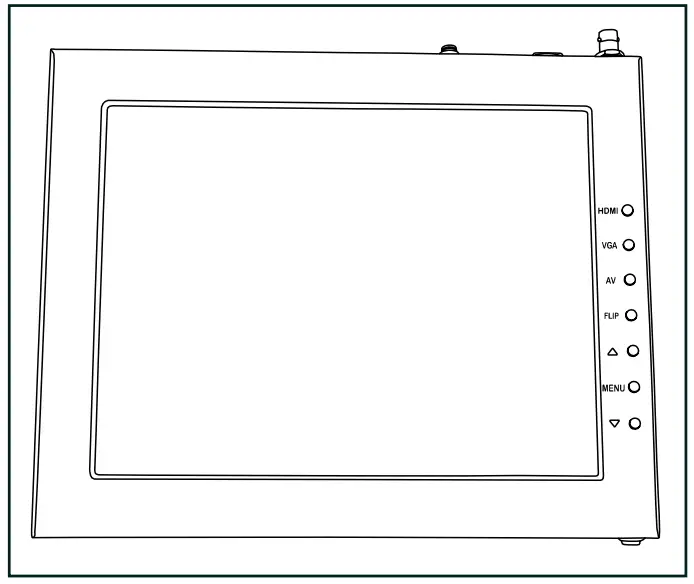

Monitor Ports

BNC — AV Composite Input
VGA — Video Graphics Array D E 1 5 Connection
HDMI — High-Definition Multimedia Interface Input Connection
Power Port — 12-24v Input

HDMI — Switch HDMI input
VGA — Switch to VGA input
AV — Switch to composite BNC input
Flip — Toggle image flip( Can be set to horizontal , vertical, o r both via menu)
Up Arrow — Toggle u p to adjust setting
Menu — Access to monitor settings
Down Arrow — Toggle down to adjust setting

Monitor Menu Settings

Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma Hue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGB Setup — Manually configure RGB Return
System Contig
Menu Duration — Set duration of how long menu stays on screen
Video Ratio — Set screen aspect ratio 16:9 o r 4:3 (4:3 is native resolution, 16:9 will create black bars)
Flip-H — Assign toggle button to flip image horizontally
Flip-V — Assign toggle button to flip image vertically
Reset — Factory reset Return
PC Set up (Only available for VGA)
H-Position — Adjust horizontal position
V-Position — Adjust vertical position
Auto — Monitor automatically adjust position Return Exit

How to set-up FLIP button feature:

1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to “ON”
5. Exit MENU
6. The FLIP button should now be activated and can be pressed t o mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both Horizontal and Vertical flip

Watch our VIDEO TUTORIAL o n how to assemble Ikan Professional Telepromopters:
https://youtube.com/playlist?list=PLcjaK5n9Y8ctrbYS3t2g4nyx2uADOXjuFSpecifications for PT4900-PTZ

TELEPROMPTER SPECS

MONITOR SPECS

Optional Accessories

PT4900-GM- Replacement Glass for PT4900
PT19W-TALLY – 19” Widescreen Talent Monitor w/ Tally Add-on Kit for PT4900
PT-PEDAL -Teleprompter Foot Control Pedal
PT-CASE-V2 – Rolling Hard Case for PT4900 Teleprompter

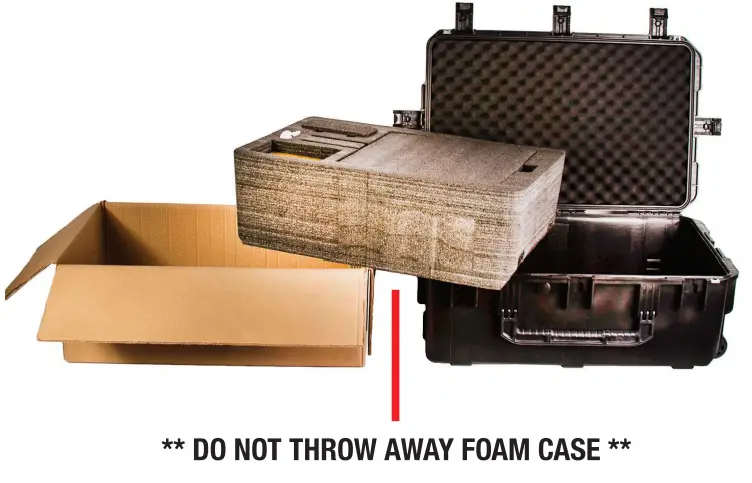

Foam Case
To make your teleprompter m o r e portable, we packed it in are usable, high-quality foam.
The shape and size of the foam was designed to fit into Ikan’s PT-CASE-V2.

Talent Monitor Add On Kit for PT4900

What’s Included

• 1 x Teleprompter Monitor w/ Aluminum Chassis
• 1 x Power Adapter with Cable
• 1 x VESA Monitor Mount
• 1x 15mm Rod Adapter
• 1x Mounting Knob
• 4x 10mm Screws
• 4x 15mm Screws
• 2x Large Screws
• 4x Riser Washers
• 1 x Adjustable Plate

Assembly Steps

Setting Up the Talent Monitor

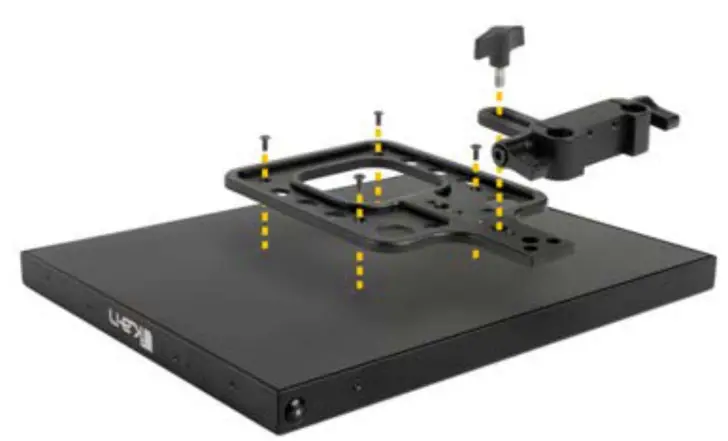

Using the shorter 4 x 10mm Screws, attach the VESA Monitor Mount. Make sure that the long end of the VESA Monitor Mount is pointing i n the direction  of the power button like the image above. Use the Mounting Knob to tighten the 15mm Rod Adapter to the VESA Monitor Mount.

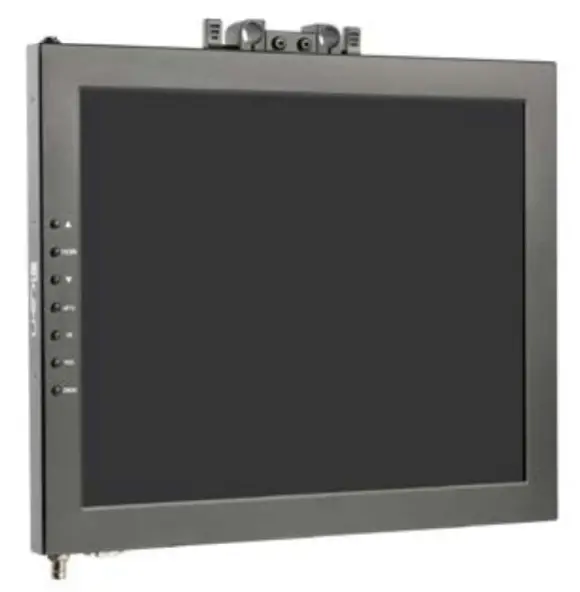

Setting Up the Teleprompter Monitor (Monitor from the PT4900)

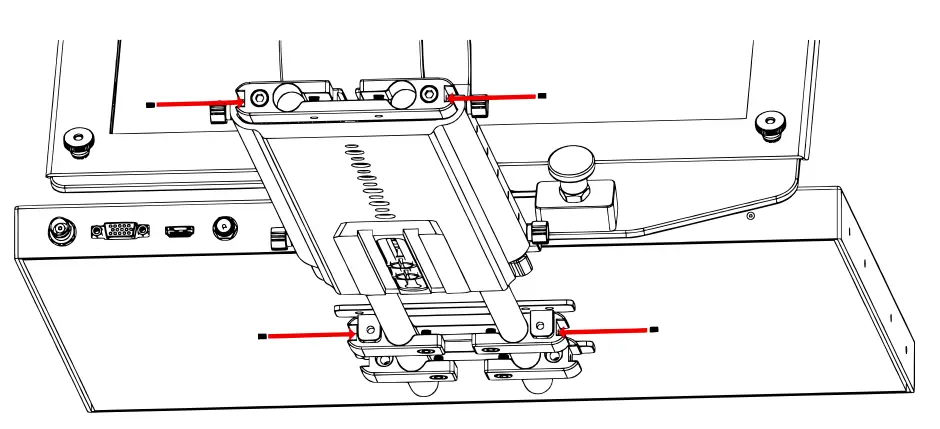

If the mounting brackets where previously installed on the teleprompter monitor, r e m o v e those screws. Using the longer 4 x 15mm Screws and 4x Riser  ashers attach the mounting brackets with the washers between the bracket and monitor like the image below.

Attaching the Talent Monitor

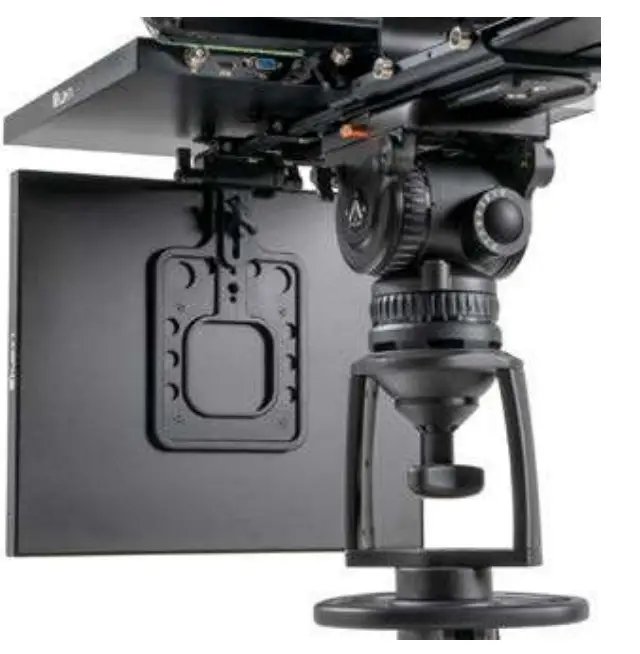

After both the talent monitor and teleprompter monitor are set up, slide the talent monitor on to the PT4900.
*WARNING* We recommend at least1 inch of rod should be left inside the teleprompter base.

Specifications

PT19-TM
19” High-Bright Teleprompter Monitor

Supported Video Signals
HDMI
720x480i & 720x480p @ 59.94, 6 0 Hz
720x576i & 720x576p @ 50 Hz
1280x720p @ 50, 59.94, 6 0 Hz
1 9 2 0 x 1 0 8 0 i @ 50, 59.94, 6 0 H z
1920x1080psf @ 24, 25, 29.97, 30 Hz
1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz

Optional Accessories

Some other products that work well with this item a vailable from Ikaninclude:
PT4900 19” High Bright Beam Splitter Teleprompter

Learn More
More dynamic information at official website: www.ikancorp.com
Support
Contact email: [email protected]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused b y manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even i f the product is still within the warranty period.)

• Damage caused b y abuse o r misuse, dismantling, or changes to the product not made by the company.
• Damage caused b y natural disaster, abnormal voltage, and environmental factors, etc.
