PRO SPLITTER 2 DS 20
Passive 1-In / 2-Out Signal Splitter with MIDAS Transformer and Extended Dynamic Range

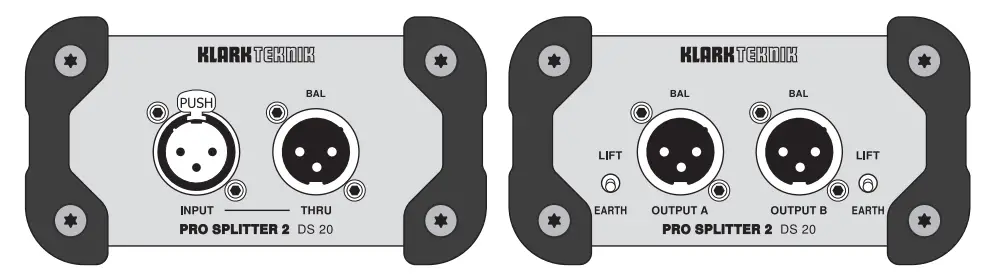

INPUT – connection accepts balanced and unbalanced signals over cables with XLR connectors.
THRU – output sends out a copy of the INPUT signal and accepts connections from balanced audio cables with XLR connectors.
LIFT / EARTH – the switch can be used to connect or disconnect the ground link between the INPUT and OUTPUT A/B jacks in order to reduce hum or prevent group loops. The LIFT / EARTH switch’s ability to reduce hum or prevent ground loops depends on the grounding of connected devices. When the switch is in the LIFT position, the ground connection between INPUT and OUTPUT is disconnected. The OUTPUT A and OUTPUT B jacks each have their own dedicated LIFT / EARTH switch.
Specifications
| Audio Connections | |
| Input | 1 x XLR, balanced |
| Input impedance | 1.9 kΩ, balanced |
| Thru | 1 x XLR, balanced |
| Output A/B | 2 x XLR, balanced |
| System | |
| Frequency response | 30 Hz to 45 kHz, ±3 dB |
| Dynamic range | +124 dB |
| THD+N | < 0.03 % @ 1 kHz, +4 dBu |
| S/N ratio | > 100 dB @ +4 dBu |
| Dimension / Weight | |
| Dimensions (W x D x H) | 118 x 120 x 64 mm (4.6 x 4.7 x 2.5″) |
| Weight | 0.6 kg (1.3 lbs) |
LEGAL DISCLAIMER
Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly on or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances, and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Oberheim, Auratone, Aston Microphones, and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd.
© Music Tribe Global Brands Ltd. 2021 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete details online at musictribe.com/warranty.
Hereby, Music Tribe declares that this product is in compliance with Directive
2014/30/EU, Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/ EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC.
The full text of the EU DoC is available at https://community.musictribe.com/
EU Representative: Music Tribe Brands DK A/S
Address: Ib Spang Olsens Gade 17, DK – 8200 Aarhus N, Denmark
