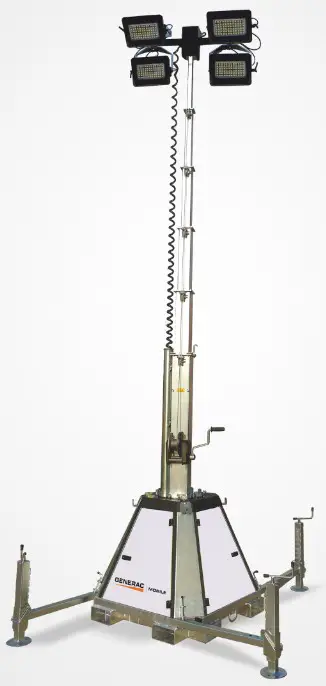

CTF-10
LED LIGHT TOWER
The ideal solution for long-term illumination of medium to large-sized working areas, the CTF-10 stationery LED light tower features a compact, durable chassis for maximum space-saving and transportation efficiency. Powered by utility power, the CTF-10 provides reliable lighting, with minimal operating costs and no scheduled maintenance. Tall 33 ft (10 m) mast allows for wide illumination area.
WIDE COVERAGE
- The tall 33 ft (10 m) mast provides a wider illumination area at maximum height
NO ENGINE
- No scheduled maintenance
- No engine emissions
- Silent operation
- Power from utility power, mobile generator or a diesel light tower
LINKABLE
- Optional linking configuration for maximum versatility in lighting
STATIONARY
- Stable skidded design with leveling outriggers
- Minimizes unauthorized relocation and tampering
- Ideal for long-term applications
EASY TRANSPORT
- Integrated fork pockets and central lifting eye for loading and unloading
APPLICATIONS
| • Music and Special Events • Industrial Plants • Manufacturing • Warehousing • Worksite Lighting • Sporting Events | • Parking Lot Lighting • Municipal Projects • Auto Dealers • Construction • General Rental |
SPECIFICATIONS
Additional options available
| Technical Data | USA (Metric) |

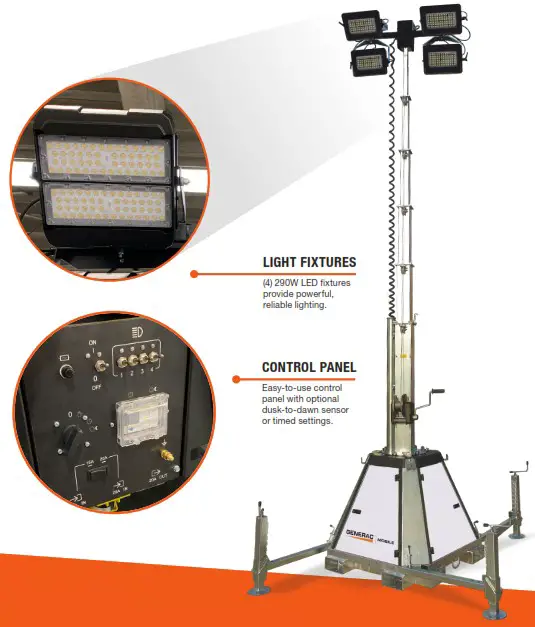

| Light Fixtures | (4) 290W LED |
| Type | LED |
| Total lumens Lm | 139,200 |
| Max Mast Height ft (m) | 33 (10) |
| Winch | Manual |
| Outlet Socket (Optional) A/V/Hz | 16/220/50 – 16/240/60 |
| Inlet Plug A/V/Hz | 16/220/50 – 16/240/60 |
| Minimum Dimensions L x W x H in. (mm) | 46 x 46 x 101 (1150 x 1150 x 2552) |
| Maximum Dimensions L x W x H in. (mm) | 75 x 75 x 394 (1903 x 1903 x 10000) |
| Dry Weight lb (kg) | 849 (385) |
| Wind Speed Rating mph (kph) | 49 (80) |
Generac Mobile Products, LLC.
215 Power Drive, Berlin WI 54923
GeneracMobileProducts.com
800-926-9768 | +1 920-361-4442
201901443 REV 06/20
©2019 Generac Power Systems. All rights reserved. Specifications are subject to change without notice.
