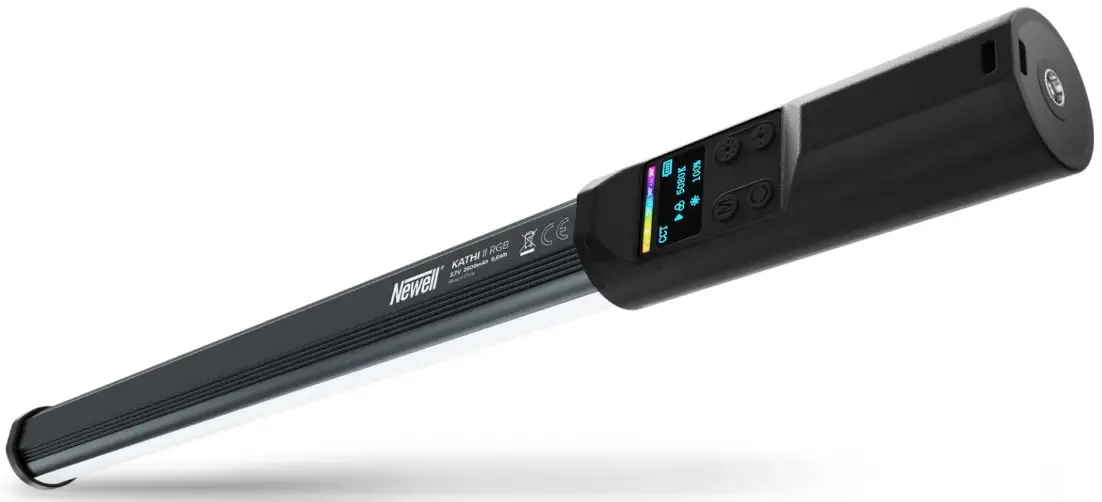

Newell Kathi II LED Light User Manual
SAFETY INSTRUCTIONS
Before using the product, please read the following | instruction manual carefully and keep it for future reference. When transferring the product to a third party, it is advisable to include the instructions.
- . The lamp is a precision device. Do not drop, hit, crush o expose to any shock
- The unit s not dustproof or waterproo. Store in a dry, cool and ventiated place. Do not expose to water or other Sources of moisture.
- Do not use near flammable materlals and solvents,
- Do not use the lamp oo close to objects. Do not cover the ventiation holes. Do not insert metal parts into the lamp. Do not touch the electrical parts with conductive materlas.
- The lamp can operate in a temperature range of 0°C – 40°C.
- The lamp will heat up slightly, but it is normal.
- Do not stare directly at the LED panel that is tuned on, it may cause eye damage.
- Do not use the LED outside In direct sunlight for a long time.
- Disconnect the power supply for storage or transportation.
- Allow the unitto cool down before placing it In the package. 1. For use by adults
- 1f you notice smoke or a strange smell coming from the device, immediately disconnect the power. Do not disassemble. Disassembling the unit will void the warranty. If there are problems with the lamp, bring it o an authorized service center.
Maintenance
Use a dry and soft cloth to clean the unit. Do ot clean with water. A litle neutral detergent on the cloth to remove stubborn it Do not use strong detergents such as thinner, benzine or alcohol as they may damage the protective coatings.

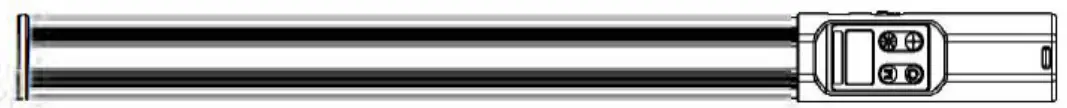

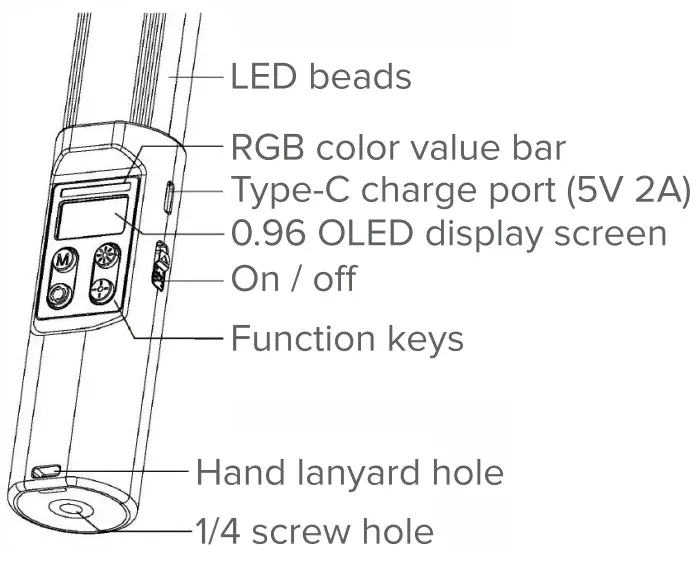

CONSTRUCTION
FUNCTIONS AND USAGE
Display Zone
In CCT mode, press the function internal switch button to switch the color temperature and brightness. Press the adjustment button to adjust the current value, Colar temperature range: 2500-9000K, brightness range: 0-100%.

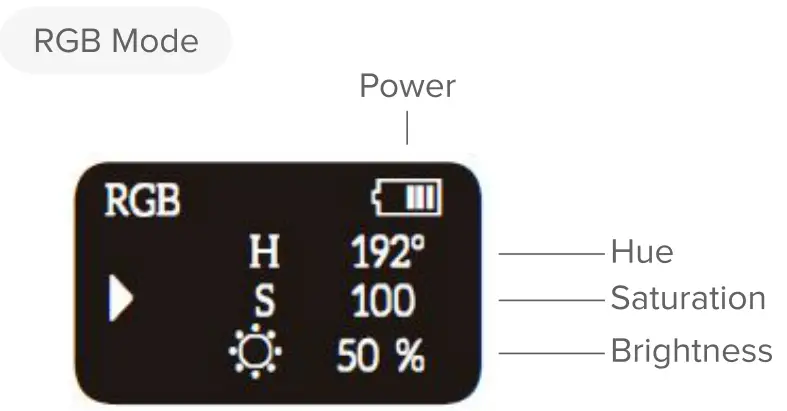

In RGB mode, press the function internal switch button to switch the hue, saturation and brightness. Press the adjustment bution to adjust the current value. Hue range: 0-360″, saturation range: 0-100%, brightness range: 0-100%,
I effects mode press the function Intemal switch button to switch the effects category and brightness. Press the adjustment button to adjust the current value, Special effect categories: 20 types, brightness range: 0-100%,
EFFECTS MODE
| 1 | Cop Car | 11 | Strobe |
| 2 | Ambulance | 12 | RGB Strobe |
| 3 | Fire Engine | 13 | Paparazzi |
| 4 | Lightning | 14 | Emergency |
| 5 | Fireworks | 15 | H/L Beam |
| 6 | TV | 16 | Red Flash |
| 7 | Candle | 17 | Green Flash |
| 8 | Party | 18 | Blue Flash |
| 9 | Fault Bulb | 19 | HSI Slow |
| 10 | Pulsing | 20 | HSI Fastf |
SPECIFICATION
| Color temperature | .2500K – 9000K ± 200K |
| Beads | White 50pcs; Yellow 50pcs; RGB 50pcs |
| Work time | Strongest brightnes :70 |
| CRI | 395 |
| Power | 8W |
| Voltage | 3.7V |
| Charge port | Type – C |
| Battery campacity | 2600mAh |
| Beam angle | 120° |
| Illuminance | Distance 0.3m / 0.5m / 1m |
| Brightness 708 LUX / 344 LUX /105 LUX | |
| Charging time | 2H (5V/2A) |
The dataof the lghts o the base of verage, sligh iference 1| Cop Car M | Swobe shall exist among different ights 2 | Ambuence 12 | Rea suobe
SET CONTENT
Newell LED Light 1pcs
Type – C Charge Cable 1pcs
Hand Lanyard 1pcs
User Manual 1pcs
The manufacturer reserves the right to change the information contained in this manual without prior notice.
WASTE MANAGEMENT
The crossed-out trashcan symbol means that waste electrical and electronic, batteries and packagings must not be placed with other household waste. They must be handed over to a separate waste collection system.
WARRANTY
Newell products are covered by a 40-month manufacturer’s warranty.
Made in China
