Feitengshike Intelligent Technology FM2 Smart Home Gym Machine
Product description
Mirror glass+display/touch+3D camera+Bluetooth wifi speaker, etc. It can be installed on wall and floor stand.
Function description
- Before power-on: It is a whole mirror.
- After power-on: The machine plays fitness instruction videos (such as yoga), and the user exercises against the machine. The machine camera captures human body motion information and performs real-time calculations to guide and correct human body movements. At the same time, it can count the amount of human exercise information.
Operation process

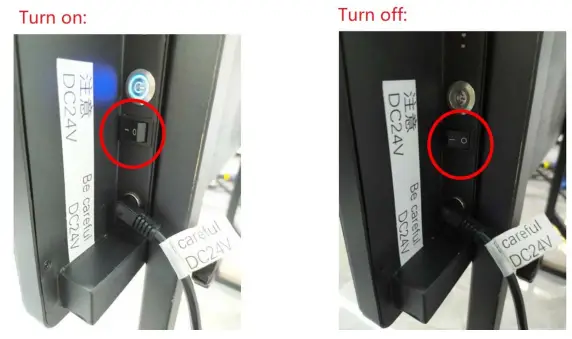

Turn on and turn off
- Turn off: Press the rocker switch on the machine to shut down
- Turn on:
- Press the rocker switch on the machine to start it;
- Connect to Wifi through touch screen operation;
- Through the touch screen operation, select the required exercise course and play it.
Bluetooth connection
Use the Bluetooth connection method commonly used for Android machines.
Wifi connection
Use Wifi connection method commonly used by Android machines.
Specifications
| Item | FN2-C4-31B | FN2-C3-31B | FN2-C2-31B |
| CPU | Rockchip RK3399 | ||
| CPU Core | Cortex A72 x 2 + A53 x 4 | ||
| GPU | ARM Mali-T864 | ||
| GPU Core | 1 | ||
| Memory | 4GB DDR4 | ||
| Hard Disk | 32GB SSD | ||
| Camera(3D Depth) | 1280×1024@7FPS; 640×480@30FPS | ||
| Camera(2D RGB) | 1280×960@7FPS; 640×480@30FPS | ||
| Mic | MIC x 1 | ||
| Power(Adapter) | Input: AC110~220V 50~60Hz; Output: DC24V6A | ||
| Power(Machine) | Input: DC24V6A | ||
| OS | Android 7.1 | ||
| Language | Multi-language | ||
| USB | USB3.0 x 2 | ||
| Audio output interface | TRS 3.5mm | ||
| Network port | RJ-45 100M/1000Mbps Adaptive | ||
| Wifi | Yes | ||
| Bluetooth | 4.0 | ||
| TF Card | Yes | ||
| Material(Front) | Mirror glass | ||
| Material(Architecture) | Carbon steel | ||
| Touch | Ten-point touch | ||
| Video format | wmv, avi, rmvb, mpeg , mp4 etc. | ||
| Image Format | BMP, JPEG, PNG, GIF etc. | ||
| Display(Pixels) | 1920 x 1080 | ||
| Display(View Angle) | +80/-80 (H), +80/-80 (V) (Typ. @CR>=10) | ||
| Speaker | 2 x 10 watt | 2 x 5 watt | 2 x 5 watt |
FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits fora Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
