Sunny Health Fitness Sf-e3912_smart Smart Pre-programmed Elliptical Trainer User Manual

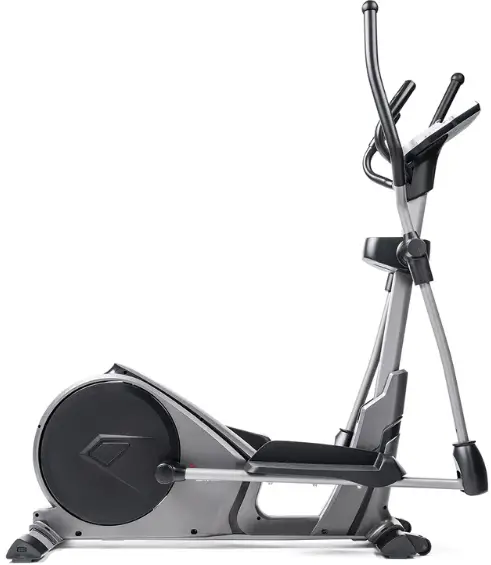

SUNNY HEALTH FITNESS SF-E3912_SMART Smart Pre-Programmed Elliptical Trainer

IMPORTANT! Please retain the owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: [email protected] or 1- 877 – 90SUNNY (877-907-8669).

IMPORTANT SAFETY INFORMATION

We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

1. Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician’s advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these conditions, you should consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat-level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 feet (60CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during exercise, discontinue use of the equipment immediately and do not use it until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 330 pounds (150 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme cold, hot, or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.

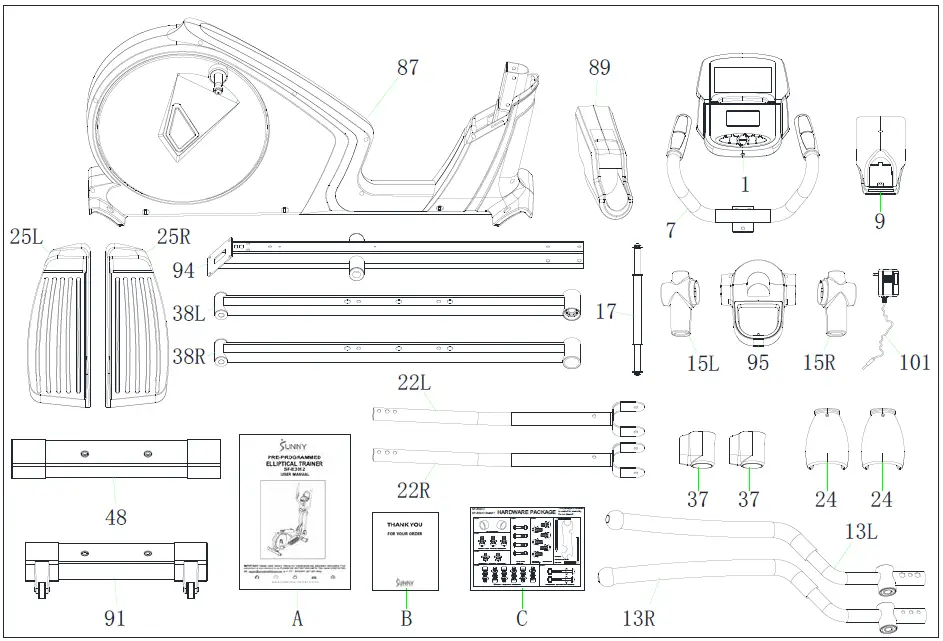

PRE-ASSEMBLY CHECKLIST

Before you start to assemble, please make sure all parts are included.

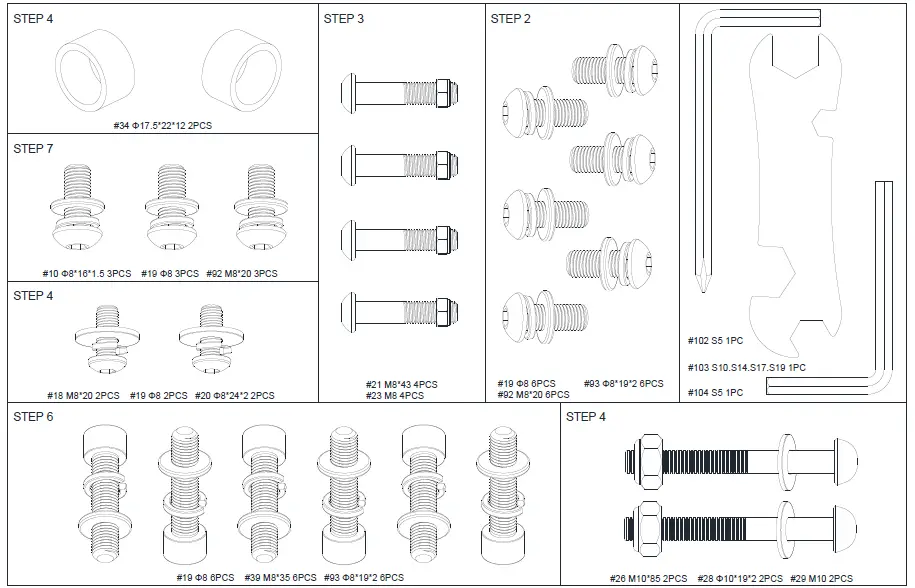

HARDWARE PACKAGE

Please provide the following information in order for us to accurately identify the part(s) needed:

• The model number (found on the cover of the manual)
• The product name (found on the cover of the manual)
• The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of the manual)

Please contact us at [email protected] or 1- 877 – 90SUNNY (877-907-8669).

ASSEMBLY INSTRUCTIONS

We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).

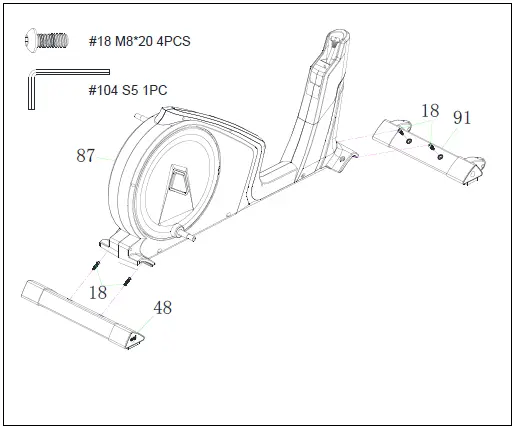

STEP 1

• Remove 2 Bolts (No. 18) from the Front Stabilizer (No. 91).
• Attach the Front Stabilizer (No. 91) to the Main Frame (No. 87) with 2 Bolts (No. 18) that were removed. Tighten and secure with Allen Wrench (No. 104).
• Remove 2 Bolts (No. 18) from the Rear Stabilizer (No. 48).
• Attach the Rear Stabilizer (No. 48) to the Main Frame (No. 87) with 2 Bolts (No. 18) that were removed. Tighten and secure with Allen Wrench (No. 104).

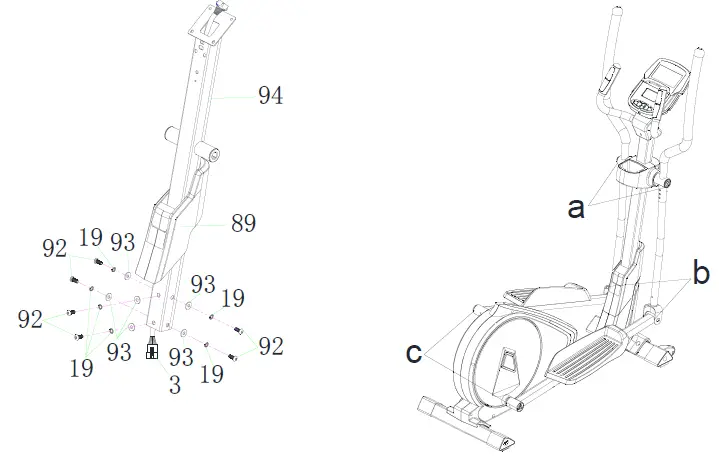

STEP 2

• Put the Front Plastic Cover (No. 89) through the Handlebar Post (No. 94).
• Connect the Lower Computer Cable (No. 88) with the Upper Computer Cable (No. 3).
• Attach the Handlebar Post (No. 94) to the Main Frame (No. 87) with 6 Spring Washers (No. 19), 6 Washers (No. 93), and 6 Bolts (No. 92). Tighten and secure with Allen Wrench (No. 102). Then, place the Front Plastic Cover (No. 89) into position.
• We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).

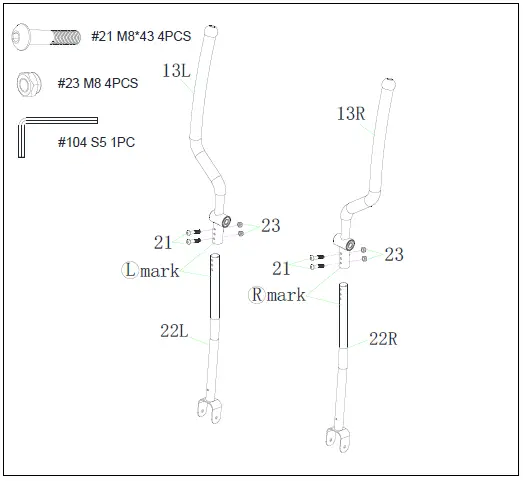

STEP 3
Attach the Left Upper Swing Bar (No. 13L) to Left Lower Swing Bar (No. 22L) with 2 Bolts (No. 21) and 2 Nylon Nuts (No. 23). Tighten and secure with Allen Wrench (No. 104). Note: The L/R mark on the Left & Right Upper Swing Bars (No. 13L & No. 13R) and Left & Right Lower Swing Bars (No. 22L & No. 22R) should always be assembled facing the front direction. Please repeat this assembly step to the Right side.

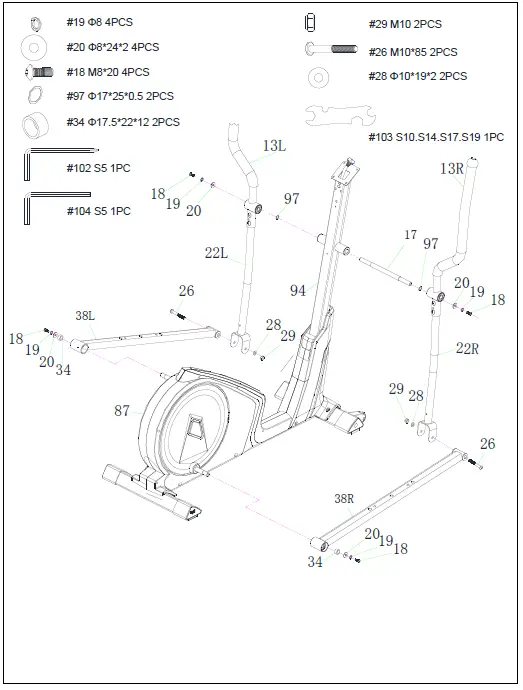

STEP 4

• Remove 2 Wave Washers (No. 97), 2 Washers (No. 20), 2 Spring Washers (No. 19), and 2 Bolts (No. 18) from the Axis (No. 17).
• Attach the Left & Right Lower Swing Bars (No. 22L & No. 22R) and the Axis (No. 17) to the Handlebar Post (No. 94) with 2 Wave Washers (No. 97), 2 Washers (No. 20), 2 Spring Washers (No. 19), and 2 Bolts (No. 18) that were removed. Tighten and secure with Allen Wrenches (No. 102 & No. 104).
• Attach the Left & Right Lower Swing Bars (No. 22L & No. 22R) to the Left & Right Pedal Support Bars (No. 38L & No. 38R) with 2 Nylon Nuts (No. 29), 2 Washers (No. 28), and 2 Bolts (No. 26). Tighten and secure with Allen Wrench (No. 102) and Spanner (No. 103).
• Note: For the Left & Right Pedal Support Bars (No. 38L & No. 38R), the side with more holes needs to face up to attach Left & Right Lower Swing Bars (No. 22L & No. 22R).
• Attach the Left & Right Pedal Support Bars (No. 38L & No. 38R) to the Main Frame (No. 87) with 2 Washers (No. 20), 2 Spring Washers (No. 19), 2 Bolts (No. 18), and 2 Tubes (No. 34). Tighten and secure with Allen Wrench (No. 104).

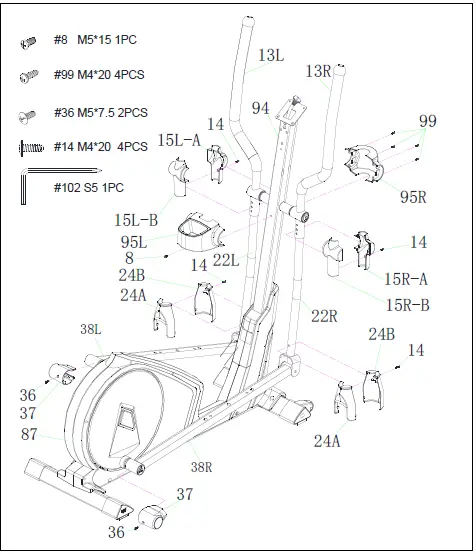

STEP 5

• Remove 2 Screws (No. 36) from the Left & Right Pedal Support Bars (No. 38L & No. 38R).
• Attach the M Plastic Cover (No. 37) to the Left & Right Pedal Support Bars (No. 38L & No. 38R) with 2 Screws (No. 36) that were removed. Tighten and secure with Allen Wrench (No.102).
• Remove 2 Screws (No. 14) from the Lower Swing Plastic Covers (No. 24A & No. 24B).
• Attach the Lower Swing Plastic Covers (No. 24A & No. 24B) to the Left & Right Lower Swing Bars (No. 22L & No. 22R) with 2 Screws (No. 14) that were removed. Tighten and secure with Allen Wrench (No. 102).
• Remove 2 Screws (No. 14) from the Left & Right Upper Central Shaft Plastic Covers (No. 15L-A/B & No. 15R-A/B). Attach the Left & Right Upper Central Shaft Plastic Covers (No.15L-A/B & No. 15R-A/B) to the Left & Right Upper Swing Bars (No. 13L & No. 13R) with 2 Screws (No. 14) that were removed. Tighten and secure with Allen Wrench (No. 102).
• Remove 4 Self-tapping Screws (No. 99) from the Left & Right Axis Plastic Covers (No. 95L & No. 95R).
• Remove 1 Screw (No. 8) from the Handlebar Post (No. 94). Attach the Left & Right Axis Plastic Covers (No. 95L & No. 95R) to the Handlebar Post (No. 94) by using 4 Self-tapping Screws (No. 99) and 1 Screw (No. 8) that were removed. Tighten and secure with Allen Wrench (No. 102).

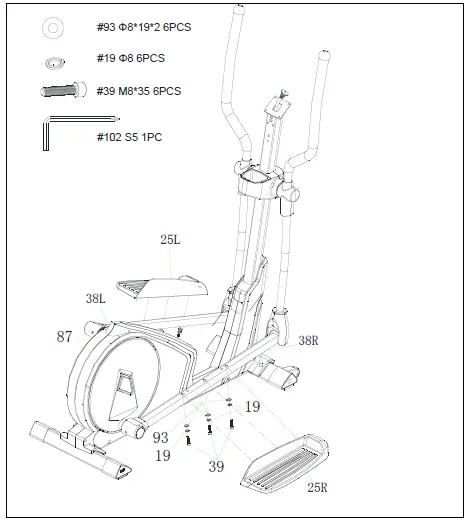

STEP 6

• Attach the Right Pedal (No. 25R) to Right Pedal Support Bar (No. 38R) by using 3 Washers (No. 93), 3 Spring Washers (No. 19), and 3 Screws (No. 39). Tighten and secure with Allen Wrench (No. 102).
• Please repeat this assembly step to the Left side.

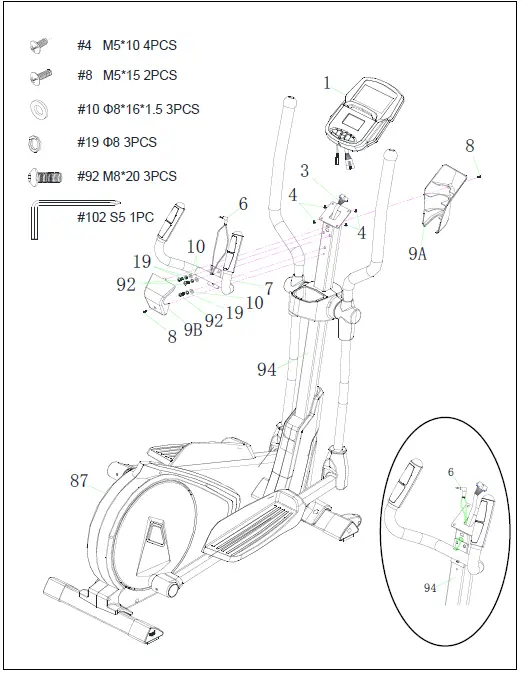

STEP 7

• Attach Handlebar (No. 7) to the Handlebar Post (No. 94) with 3 Spring Washers (No. 19), 3 Washers (No. 10), and 3 Bolts (No. 92). Tighten and secure with Allen Wrench (No. 102). Insert the Hand Pulse Cable (No. 6) into the front hole of the Handlebar Post (No. 94) and pull up the Hand Pulse Cable (No. 6) from the top hole of the Handlebar Post (No. 94).
• Remove 4 Screws (No. 4) from the back of the Computer (No. 1).
• Connect the Upper Computer Cable (No. 3) and Hand Pulse Cable (No. 6) to the wires of the Computer (No. 1).
• Attach the Computer (No. 1) onto the top end of the Handlebar Post (No. 94) by using 4 Screws (No. 4) that were removed. Tighten and secure with Allen Wrench (No. 102).
• Remove 2 Screws (No. 8) from the Handlebar Post (No. 94).
• Attach the Front /Rear Handlebar Post Cover (No. 9A & No. 9B) to the Handlebar Post (No. 94) by using 2 Screws (No. 8) that were removed. Tighten and secure with Allen Wrench (No. 102).

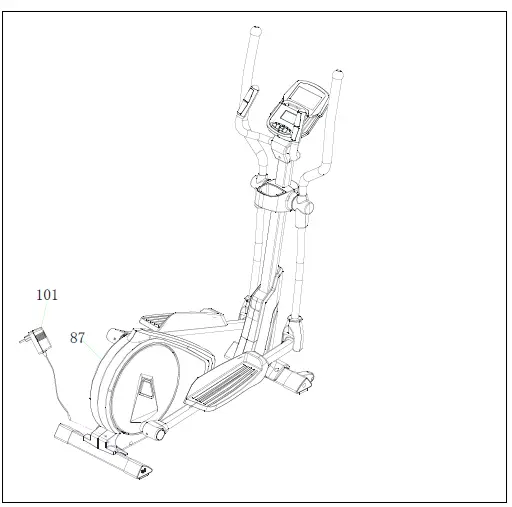

STEP 8

• Before plugging in the elliptical, make sure to check the specifications carefully on the Adapter (No. 101).
• Plug one end of the Adapter (No. 101) into the power plug at the end of the Main Frame (No. 87).
• The assembly is complete!

ADJUSTMENTS & USAGE GUIDE

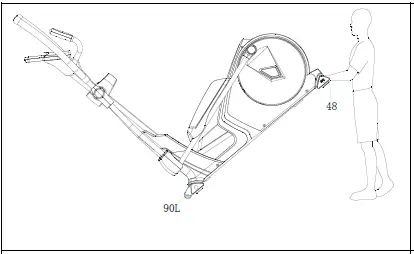

HOW TO MOVE THE ELLIPTICAL
The wheels on the Left & Right Front Stabilizer Caps (No. 90L & No. 90R) are movable. Hold the Rear Stabilizer (No. 48) and pull forward to lift the rear end of the elliptical off the floor. Now you can move the elliptical.

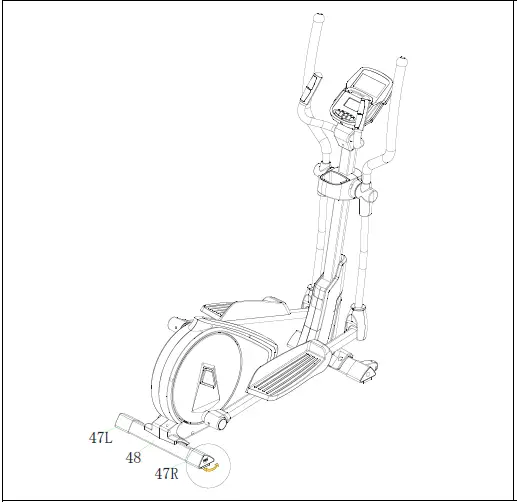

ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride, you must ensure that the elliptical is stable. If you notice that the elliptical is unbalanced during use, you should adjust the Left & Right Rear Stabilizer End Caps (No. 47L & No. 47R) located beneath the Rear Stabilizer (No. 48).

CLEANING AND MAINTENANCE

The elliptical can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the elliptical after each use. Be careful not get excessive moisture on the computer display panel, as this may cause electrical hazards or cause electronics to fail. Please keep the elliptical and the computer out of direct sunlight to prevent screen damage. Please inspect all assembly bolts and pedals on the machine for proper tightness every week, especially 6pcs of Bolts (No. 92) in order to avoid noise. Check a/b/c total 6 joints every 3 months. And add lubricating oil if needed.

STORAGE
Store the elliptical in a clean and dry environment away from children.

IMPORTANT ELECTRICAL INFORMATION

WARNING: This elliptical trainer requires a power source of 1 amp (100-240V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and or user.

OPERATING INSTRUCTIONS

• Plug the adaptor into the elliptical trainer and into the outlet. The computer will turn on.
• The computer will turn off if there is no activity for 4 minutes. Press any key on the computer to turn it on again.

NOTE: You can still use the elliptical trainer when it is not plugged in. However, the computer will not be working and you cannot adjust the resistance level or use any of the functions.

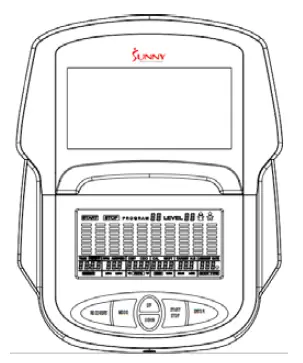

EXERCISE COMPUTER

KEY FUNCTIONS

WORKOUT SELECTION

• After turning the computer on by plugging in the adaptor or if already plugged in, pressing any button on the computer, use the UP or DOWN button to make a selection. Then press the ENTER button to choose the desired mode.
• There are 7 basic workout modes:
• Manual, Pre-set Programs, Watt Programs, Body Fat Programs, Target Heart Rate Programs, Heart Rate Control Programs, and User Programs.

FUNCTIONS

• SPEED: Displays current training speed. Maximum speed is 99.9 MPH.
• RPM: Displays current rotation per minute.
• TIME: Accumulates the workout time from 00:00 to 99:59. Users can preset the target time they want.
• DIST: Accumulates the workout distance from 0.00 to 999.9 miles. Users can preset the target distance they want to reach.
• ODO: Displays the total accumulated distance from 0 to 9999 miles.
• CAL: Accumulates the calories burned from 0 to 9999. Users can preset the target Calories they want to burn.
• WATT: Displays current watt.
• HEART RATE: Displays the current heart rate in beats per minute.
• TARGET HR.: Users can preset their Target Heart Rate.
• PROGRAM: There are 24 different programs to choose from for training.
• LEVEL: The program has 10 columns of bars and 8 bars in each column. Each column represents a 1-minute workout and each bar represents 2 resistance levels.

WORKOUT PARAMETERS

TIME / DISTANCE / CALORIES / AGE / WATT / TARGET HEART RATE
Setting Workout Parameters

• After selecting the desired workout mode: Manual Programs, Pre-set Programs, Watt Control Programs, Body Fat Programs, Target Heart Rate Programs, Heart Rate Control Programs, and User Programs. You may pre-set several workout parameters for desired results.

Note: Some parameters are not adjustable in certain programs. Time and Distance cannot be set up at the same time. Once a program has been selected, press ENTER, and TIME will flash.
Using the UP or DOWN button, you may select the desired time value. Press ENTER to input the values. The flashing prompt will move to the next parameter. Continue using the UP or DOWN button. Press the START/STOP button to begin the workout.

More About Setting Workout Parameters

PROGRAM OPERATION

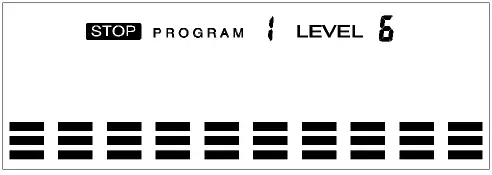

• Manual (P1)

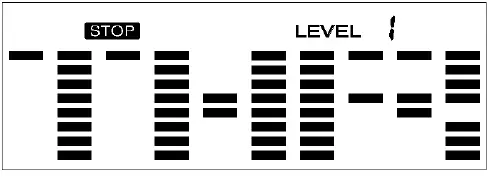

• Program profile

SETTING PARAMETERS FOR MANUAL PROGRAM

1. Select Manual Program (P1) using the UP or DOWN button, then press ENTER.
2. TIME will flash so the value can be adjusted using the UP or DOWN button.
3. Press the ENTER button to save the value and move to the next parameter to be adjusted.
   Note: If you set up the target time for the workout, then the next parameter of Distance cannot be adjusted.
4. Continue through all desired parameters and press the START/STOP button to begin the workout.
   Note: Once the workout parameter counts down to zero, it will beep and stop the workout automatically. Press the START button to continue the workout to reach the unfinished workout parameter.

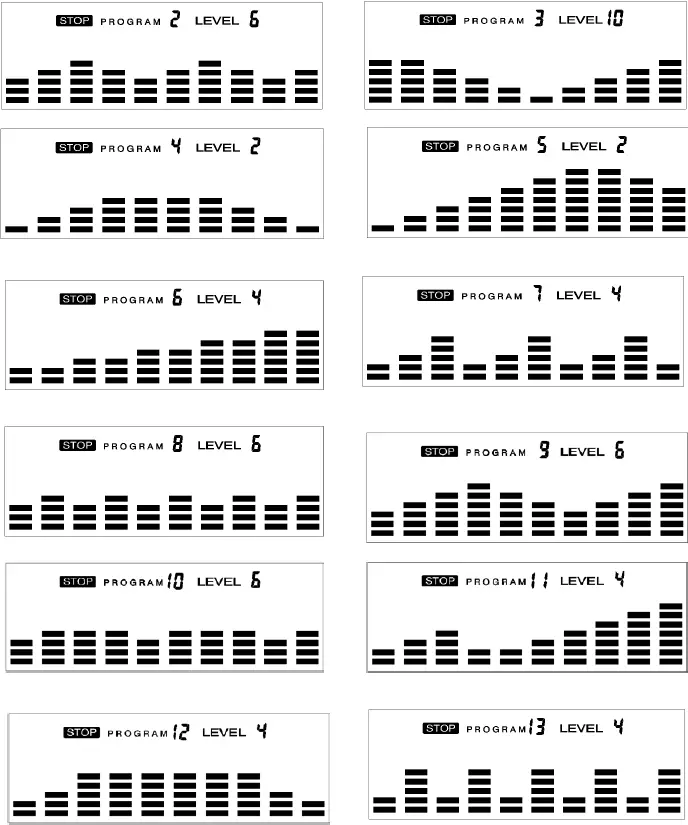

Pre-set programs (P2~P13)

Program profile

There are 12 pre-set programs ready for use. All program profiles have 16 levels of resistance.
SETTING PARAMETERS FOR PRE-SET PROGRAMS

1. Select one of the Pre-set Programs using the UP or DOWN button, then press ENTER. TIME will flash so the value can be adjusted using the UP or DOWN key.
2. Press the ENTER button to save the value and move to the next parameter to be adjusted. Continue through all desired parameters, pressing the START/STOP button to begin the workout.

Workout in any pre-set program
You can adjust the level of resistance by pressing the UP or DOWN button during the workout.
Note: If you set up the target time for the workout, then the next parameter of Distance cannot be adjusted. Once the workout parameter counts down to zero, it will beep and stop the workout automatically. Press the START button to continue the unfinished parameter.

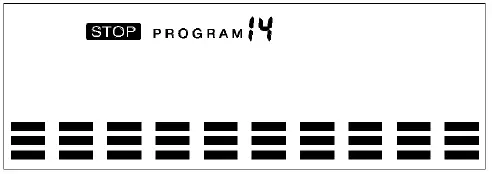

Watt Control Program (P14)

Program profile

SETTING PARAMETERS FOR THE WATT CONTROL PROGRAM

1. Select Watt Control Program (P14) using the UP or DOWN button, then press ENTER.
2. TIME will flash so the value can be adjusted using the UP or DOWN button.
3. Press the ENTER button to save the value and move to the next parameter to be adjusted.
   Note: If you set up the target time for the workout, then the next parameter of Distance cannot be adjusted.
4. Continue through all desired parameters, pressing the START/STOP button to start the workout.
   Note: Once the workout parameters count down to zero, it will beep and stop the workout automatically.
5. Press the START button to continue the workout to reach the unfinished workout parameter.
   The computer will adjust the resistance load automatically depending on the speed to maintain the constant watt value. You can use the UP or DOWN button to adjust the watt value during the workout.

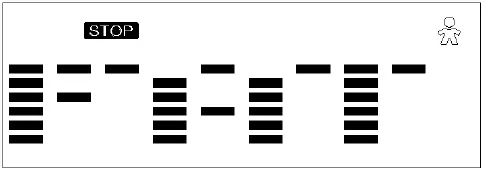

BODY FAT Program (P15) Program profile

SETTING DATA FOR BODY FAT

• Select BODY FAT Program (P15) using the UP or DOWN button, then press ENTER. “MALE” will flash so Gender can be adjusted using the UP or DOWN button. Press the ENTER button to save gender and move to the next data.
• “5’8 (inches)” of Height will flash so Height can be adjusted using the UP or DOWN button. Press ENTER to save the value and move to the next data.
• “154 (lbs.)” of Weight will flash so Weight can be adjusted using the UP or DOWN button. Press ENTER to save the value and move to the next data.
• “30” of Age will flash so Age can be adjusted using the UP or DOWN button. Press ENTER to save the value.
• Press the START/STOP button to start the measurement. Please also remember to grasp the hand pulse grips. After 15 seconds, the display will show Body Fat %, BMR, BMI, & BODY TYPE.

Body Types
There are 9 body types divided according to the FAT % calculated.

• BMR: Basal Metabolism Ratio
• BMI: Body Mass Index
• Press the START/STOP button to return the main display.

TARGET HEART RATE Program (P16)
Program profile

SETTING PARAMETERS FOR TARGET HEART RATE PROGRAM

1. Select TARGET HR (P16) using the UP or DOWN button, then press ENTER.
2. TIME will flash. The value can be adjusted using the UP or DOWN button.
3. Press the ENTER button to save the value and move to the next parameter to be adjusted.
   Note: If you set up the target time to work out, then the next parameter of Distance cannot be adjusted.
4. Continue through all desired parameters, pressing the START/STOP button to start the workout.
   Note: If Pulse is above the set TARGET HR, the Pulse value will flash to remind the user.

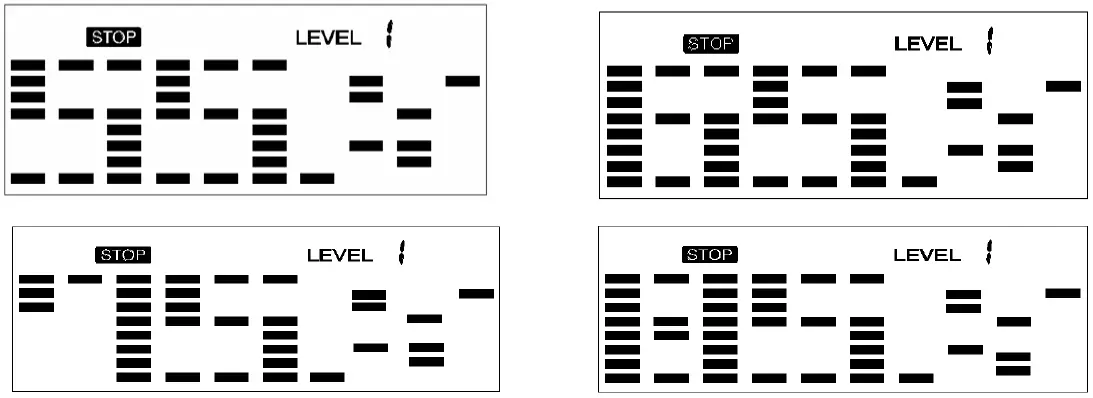

HEART RATE CONTROL Program (P17-P20)

Program profile

There are 4 selections for target pulse (HR)

• HRC – 55% TARGET HR= 55% of (220-AGE)
• HRC – 65% TARGET HR= 65% of (220-AGE)
• HRC – 75% TARGET HR= 75% of (220-AGE)
• HRC – 85% TARGET HR= 85% of (220-AGE)

SETTING PARAMETERS FOR HEART RATE CONTROL

1. Select one of the Heart Rate Control Programs using the UP or DOWN button, then press ENTER.
2. TIME will flash. The value can be adjusted using the UP or DOWN button.
3. Press the ENTER button to save the value and move to the next parameter to be adjusted.
   Note: If you set up the target time to work out, then the next parameter of Distance cannot be adjusted.
4. Continue through all desired parameters, pressing the START/STOP button to start the workout.
   Note: If Pulse is above or below (± 5) the TARGET HR, the computer will adjust the resistance load automatically. It will check every 20 seconds approx. 1 resistance load will increase or decrease (Note: each resistance load represents 2 levels of loading).
   If one of the workout parameters counts down to be zero, it will beep and stop the workout automatically. Press the START/STOP button to continue the workout to reach the unfinished workout parameter.

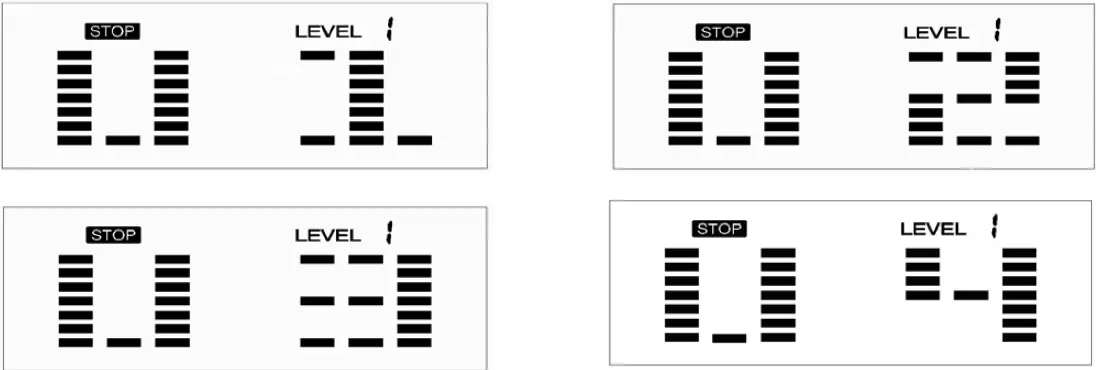

User Program
Program profile (P21-P24)

The 4 user programs allow the user to set their own program that can be used immediately.
SETTING PARAMETERS FOR USER PROGRAM

1. Select the User Program using the UP or DOWN button then press ENTER.
2. TIME will flash so the value can be adjusted using the UP or DOWN button.
3. Press the ENTER button to save the values and move to the next parameter to be adjusted.
   Note: If you set up the target time to work out, then the next parameter of Distance cannot be adjusted.
4. Continue through all desired parameters.
5. After finishing the setup of the desired parameters, level 1 will flash. Use the UP or DOWN button to adjust, then press the ENTER button until finished. (There are 10 times total). Press the START/STOP button to begin the workout.
   Note: Once the workout parameter counts down to zero, it will beep and stop the workout automatically. Press the START/STOP button to continue the workout to reach the unfinished workout parameter.

APP CONNECTION

1. Scan the QR code below to download the SunnyFit app onto your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
   • From the “Workout” tab, press the “Search” button to search for your equipment.
   • Once your equipment appears on the list, tap the “Select” button to confirm.
   • Note: If your equipment does not appear on the “Searching for Equipment” list, check the EXERCISE COMPUTER on your equipment to ensure that it is not in sleep mode and your phone’s Bluetooth function is on, then tap “Retry” to search again.
   • Once your equipment shows up on the “Workout” tab as “Currently Selected”, your equipment is now ready to display, track, and record your equipment’s workout stats on the app!
5. If you are unable to replicate these steps or have any other issues with the SunnyFit app, please contact SunnyFit support at [email protected], or use the in-app “Contact Us” form to request a support (“Me” tab -> “Contact Us”).

TROUBLESHOOTING

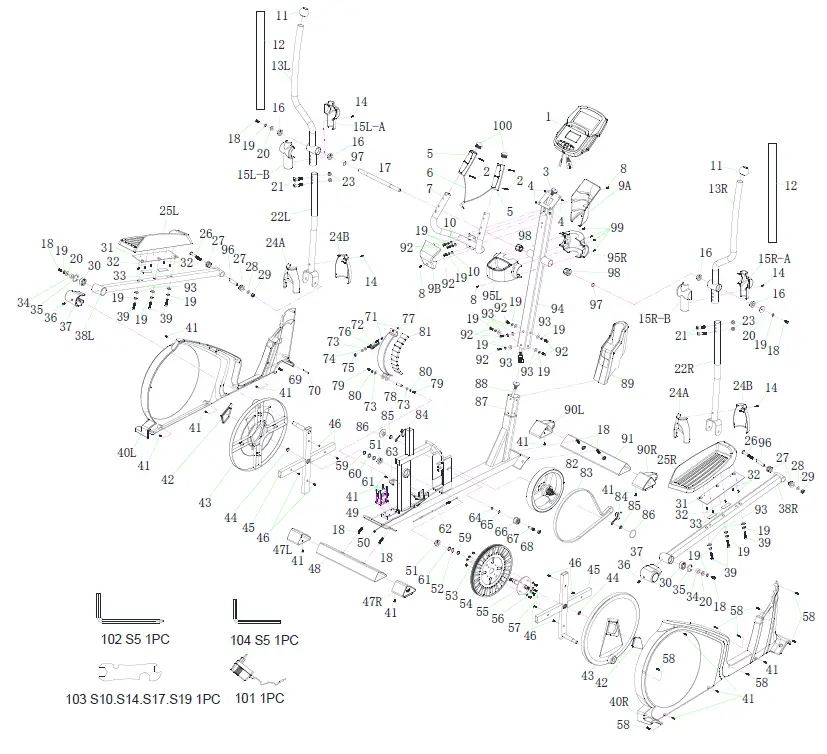

EXPLODED DIAGRAM

PARTS LIST
