Sdncie Br08 Smart Bluetooth Receiver Instruction Manual

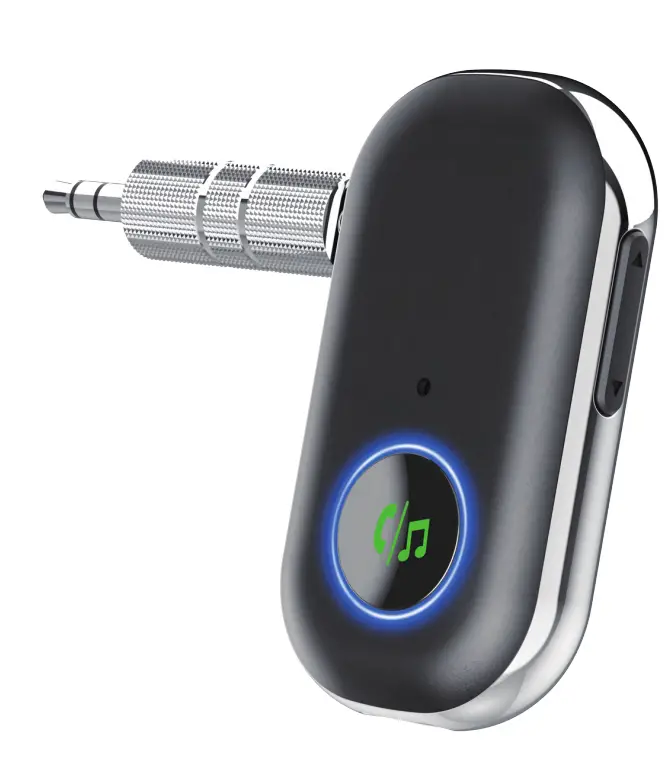

SDNCIE BR08 Smart Bluetooth Receiver

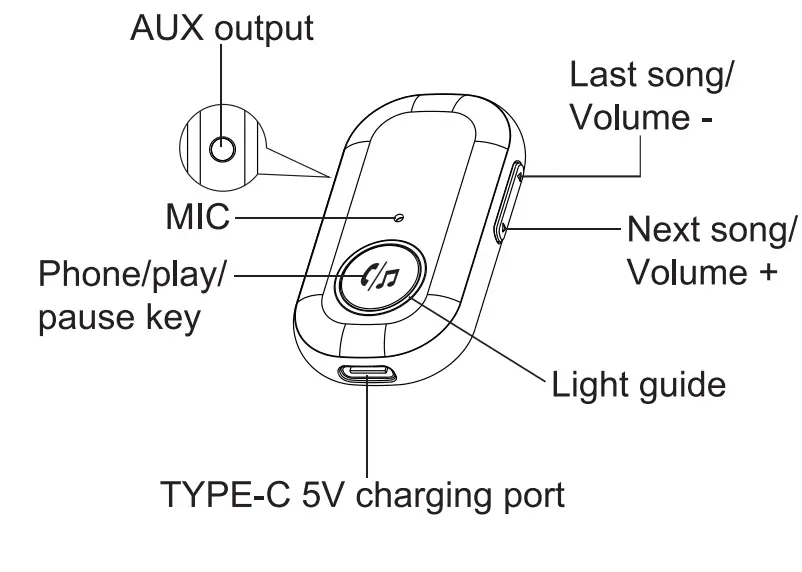

Schematic illustration

Product features

1. Bluetooth V5.1
2. Automatically connect the paired Bluetooth device after power on
3. Five minutes no device connection, automatic shutdown
4. Built-in 250MA rechargeable battery, environmental protection and energy saving
5. Play time: about 16 hours after full charge
6. Support Bluetooth DSP technology of stereo music
7. Aux output
8. Voice broadcast caller number
9. Private answer
10. Bluetooth playback distance within 10 meters of barrier-free

Operating instructions

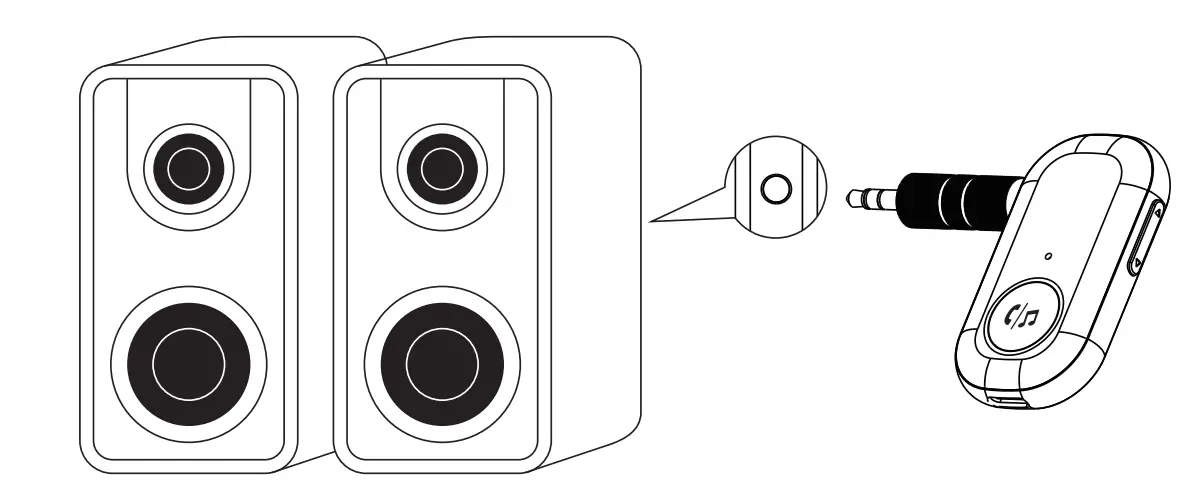

1. Pairing for the first time: Insert the audio adapter into the audio output hole, and plug the other end into the audio input hole of loudspeaker, or the aux port of car audio.

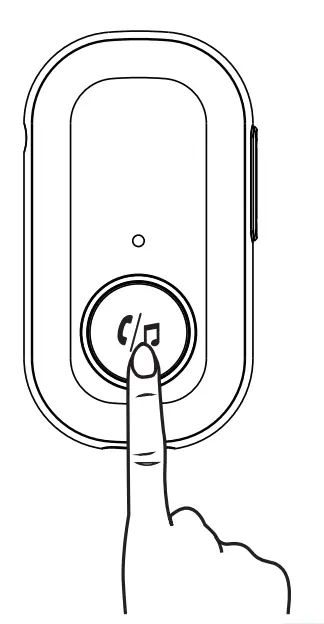

2. Long press” “3 seconds to power on. the blue light flashing quickly, enter Bluetooth searching.

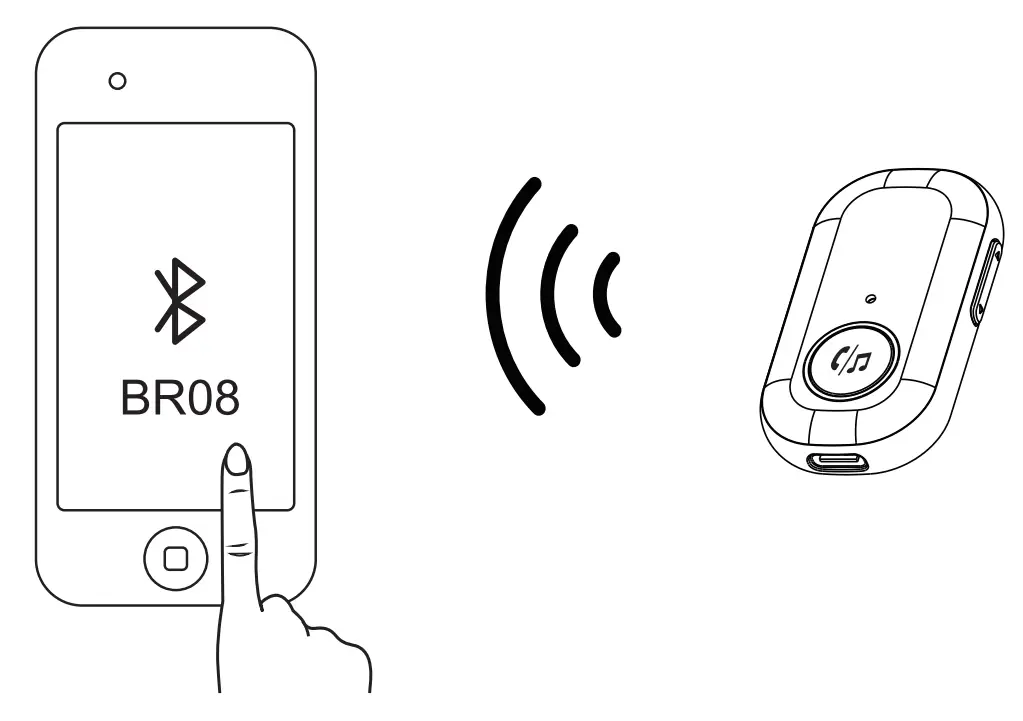

3. Open Bluetooth of phone, search ” BROS “and connect, after the pairing is successful, prompt ” Bluetooth connection is successful “, and the blue light flash slowly.
4. Use Bluetooth hands-free calling.
5. Answering the Cal .I Press” “lo answer, during a call press” ” to hang up.
6. Rejecting the call Long press ” ” two seconds to reject call.
7. Private answer During call, long press the ” ” button for 2 seconds to switch between the phone and Bluetooth
8. Double click ” ” to call the last calling number in your log.
9. Play music via Bluetooth Short press ” ◄ ” for last song; Short press ” ► ” for next song ; Short press ” ” for pause/play.
10. Adjust volume Long press ” ◄ ” for volume -; Long press ” ► ” for volume+, max volume have prompt.
11. Automatic shutdown II will automatically shut down if without any device connection or any operations within 5 minutes.
12. Charging The red light is always on when charging; light goes out when it is fully charged.
13. Low voltage alarm When the battery power is too low, the red light flashes and the voice prompts ” low power” every minute, ii will automatically shut down at the fourth lime. Shut down directly when the battery voltage is lower than 3.2V

Troubleshooting

Warm tips

1. Do not use this product in a dusty and humid environment with extremely high and low temperatures.
2. Do not drop the product to avoid surface damage or breakdown.
3. Do not disassemble the product, if you have any questions, please contact your dealer
4. Due to continuous improvement and enhancement of technology, changes in product performance and functionality are subject to change without notice.

Packaging

1. Manual
2. Main product
3. Charging cable
4. Audio connector
5. Audio cable
