MIWI350 REMOTE PULSAR QUICK START GUIDE
Product Overview

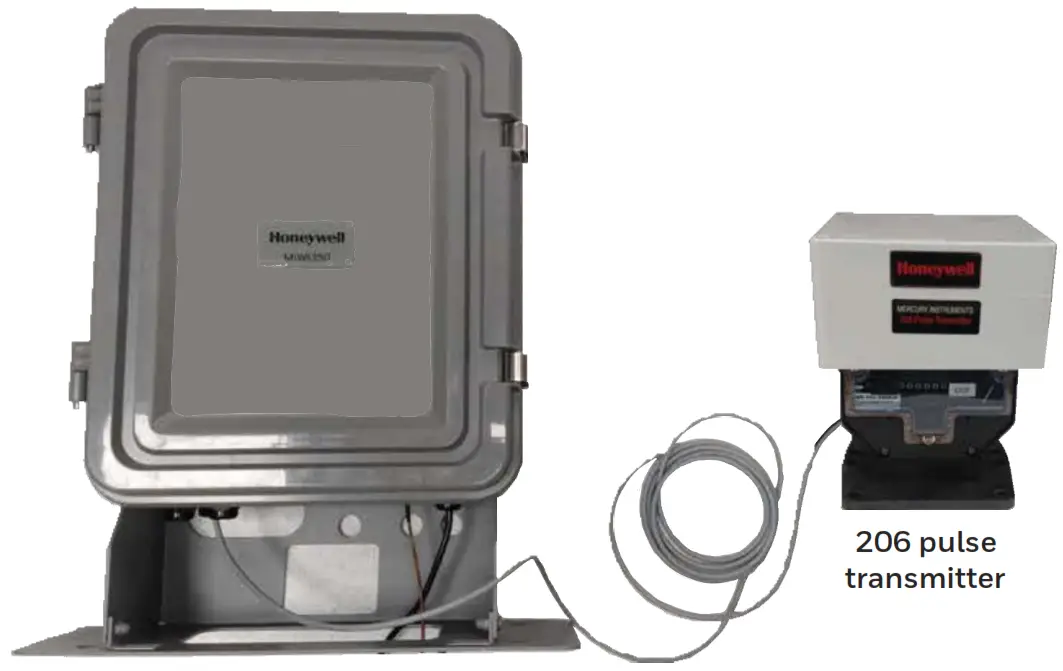

The Model 206 Pulse Transmitter from Mercury Instruments is an adaptable solution for transmitting uncorrected volume pulses to a remote EVC. Refer to the below pulse input wiring for the interface drawing connections from 206 Pulsar to MIWI350.

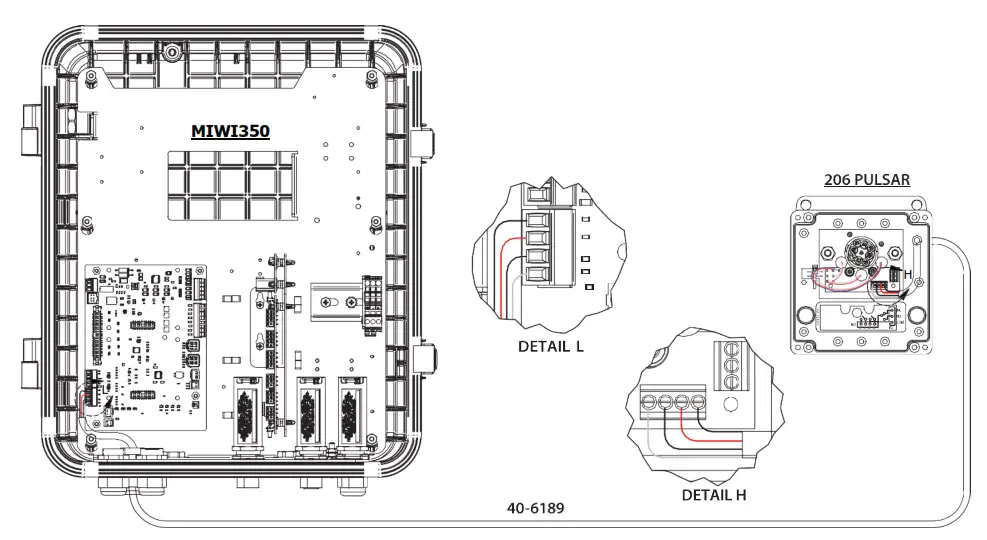

Electrical Wiring – Remote Pulsar to MIWI350 device

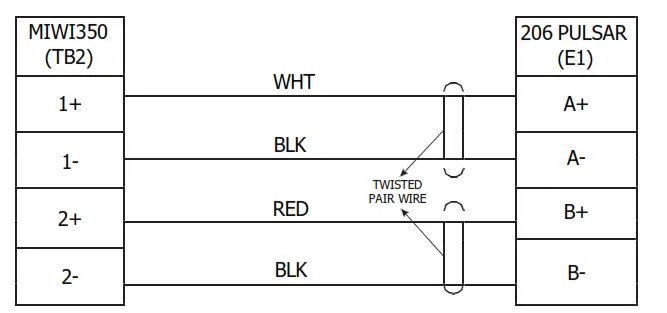

40-6189 Wiring Diagram
Pulsar to MIWI cable connections
Pulsar to MIWI cable connectionsFollow the below steps carefully to interface the Pulsar and MIWI350.

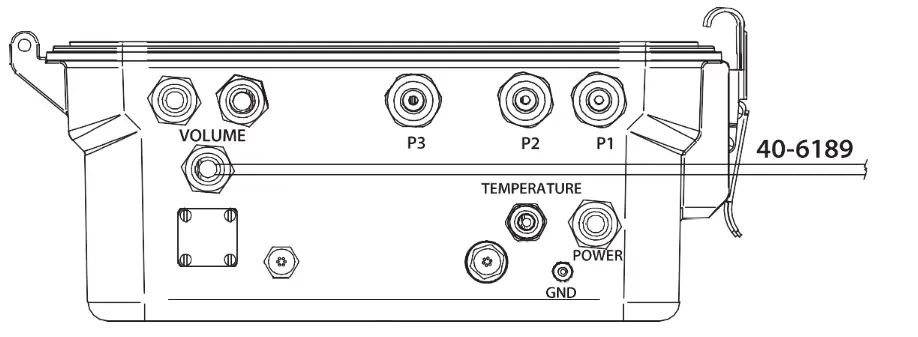

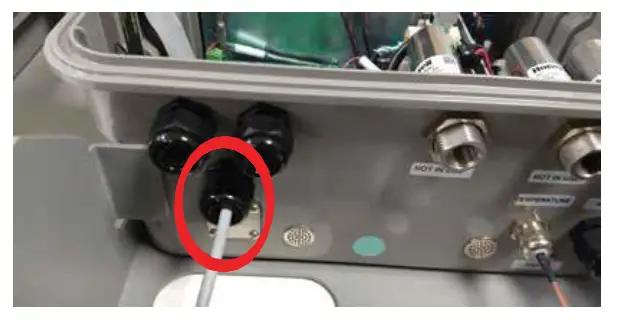

- Insert the interfacing cable (40-6189) from the Pulsar through the Pulse Input Gland on MIWI350 device.

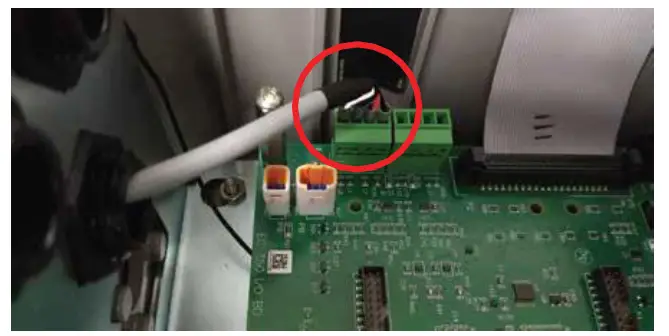

- Plug the interfacing cable (40-6189) to the 4-pin connector of the IO Board (TB2).
Refer to Detail L & 40-6189 Wiring Diagram from page 2.
- The other end of the interfacing cable (40-6189) runs to the Pulsar Output gland.

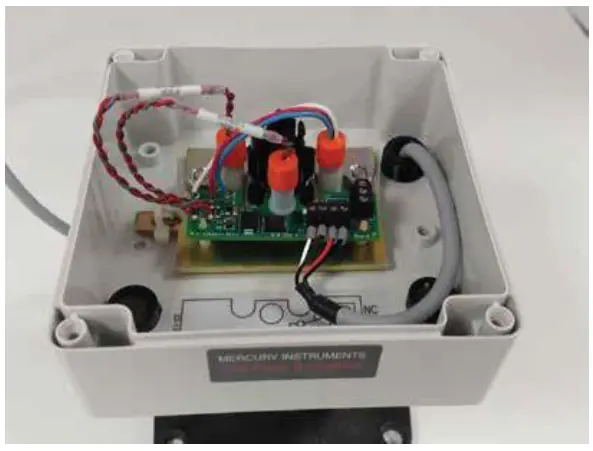

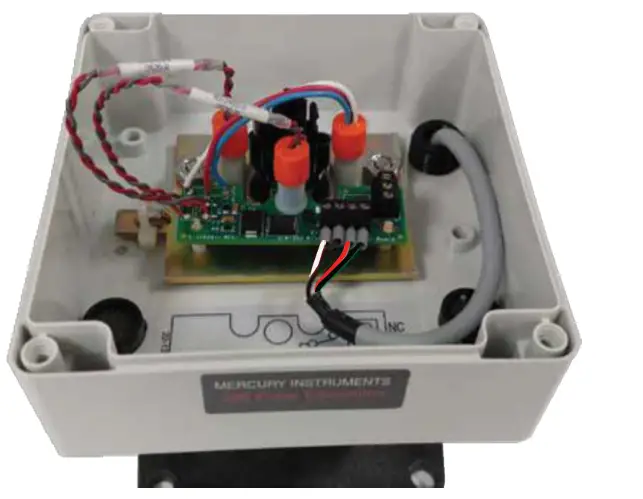

- The connector must be inserted into the Pulsar Board as per the Electrical Wiring diagram. Refer to Detail H & 40-6189 Wiring Diagram from page 2.

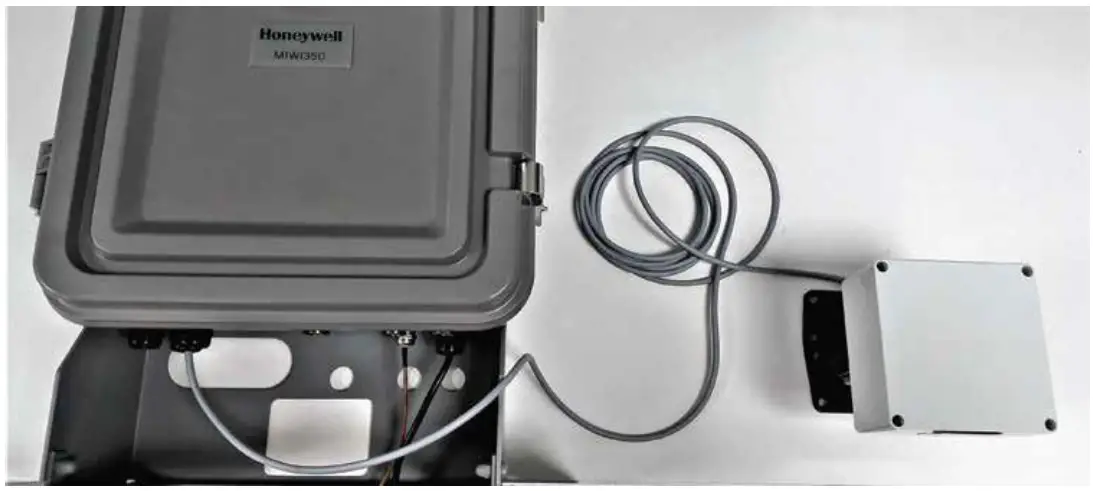

- The final wiring arrangement will be as below. Cross check each connection with the Remote Pulsar Electrical wiring explained in page 2 in detail.
List of associated cable assemblies pre-installed in the device
| Part Number | Description |
| 22-3194-KIT | KIT, ASSY, MECHANICAL UNCORR SW INPUT BOARD |
| 40-1583-KIT | WIRE-3 COND.24 AWG BELD 9533 |
| 40-6189-KIT | KIT, PULSE OUTPUT CABLE 206 PULSER TO MIWI350 |
