H-293

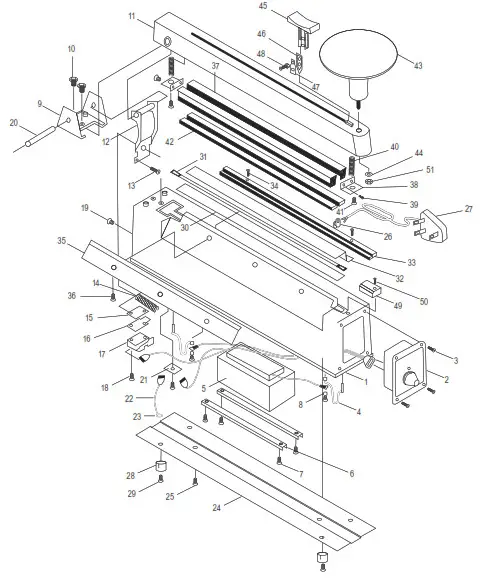

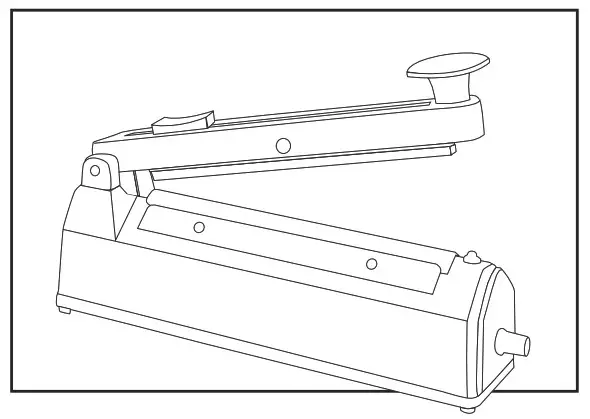

IMPULSE SEALER WITH CUTTER
1-800-295-5510
uline.com
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Body | 1 | ———- | KF-300HC-1 |
| 2 | Timer | 1 | H-293-011 | KF-300HC-2 |
| 3 | Screw | 4 | H-293-003 | KF-200HC-3 |
| 4 | Bow Spring | 2 | H-6678 | KF-300HC-4 |
| 5 | Transformer | 1 | H-190-18/19 | KF-300HC-5 |
| 6 | Transformer Bracket | 1 | ———- | KF-300HC-6 |
| 7 | Screw | 1 | H-163-7 | KF-200HC-7 |
| 7-1 | Spring Washer | 1 | H-163-7-1 | KF-200HC-7-1 |
| 8 | Plastic Washer | 1 | H-163-8 | KF-200HC-8 |
| 9 | Hinge Bracket | 1 | H-293-HINGE | KF-300HC-9 |
| 10 | Screw | 2 | H-1252-39 | KF-200HC-10 |
| 11 | Arm | 1 | H-293-ARM | KF-300HC-11 |
| 12 | Arm Operating Bracket | 1 | H-1252-ARM | KF-500HC-12 |
| 13 | Microswitch Adjusting Screw | 1 | H-963-SCREW | KF-300HC-13 |
| 14 | Arm Return Spring | 1 | H-963-14 | KF-300HC-14 |
| 15 | Microswitch Bracket** | 1 | ———- | KF-200HC-15 |
| 16 | Insulated Plate** | 1 | ———- | KF-200HC-16 |
| 17 | Microswitch** | 1 | ———- | KF-200HC-17 |
| 17-1 | Microswitch Spring Plate** (Not Shown) | 1 | ———- | KF-200HC-17-1 |
| 18 | Microswitch Assembled Screw** | 1 | ———- | KF-200HC-18 |
| 19 | Microswitch Fixed Screw | 1 | H-1029-SCREW | KF-200HC-19 |
| 20 | Hinge Pin | 1 | H-963-HINGE | KF-200HC-20 |
| 21 | Wire Connector | 1 | ———- | KF-200HC-21 |
| 22 | Earth Wire | 1 | ———- | KF-200HC-22 |
| 23 | Earth Wire Nut Washer | 1 | ———- | KF-200HC-23 |
| 24 | Base Plate | 1 | H-293BPLATE | KF-300HC-24 |
| 25 | Earth Wire Screw | 1 | ———- | KF-200HC-25 |
| 26 | Bushing | 1 | ———- | KF-200HC-26 |
| 27 | Power Cord | 1 | H-293-015 | KF-200HC-27 |
| 28 | Rubber Foot | 4 | H-293-022 | KF-200HC-28 |
| 29 | Rubber Foot Screw | 4 | H-963-29 | KF-200HC-29 |
| 30 | Lower Teflon (Adhesive) | 1 | ———- | KF-300HC-30 |
| 31 | Heating Element | 1 | ———- | KF-300HC-31 |
| 32 | Upper Teflon | 1 | H-293-008 | KF-300HC-32 |
| 33 | Teflon Plate | 1 | H-293-033 | KF-300HC-33 |
| 34 | Teflon Plate Screw | 3 | H-963-SCREWS | KF-200HC-34 |
| 35 | Teflon Fixed Plate | 1 | H-293-FIXPLT | KF-300HC-35 |
| 36 | Teflon Fixed Plate Screw | 3 | H-293-036 | KF-200HC-36 |
| 37 | Sealing Bar | 1 | H-293-PLATE | KF-300HC-37 |
| 38 | Sealing Bar Bracket | 2 | H-963-38 | KF-200HC-38 |
| 39 | Sealing Bar Fixed Bracket Screw | 2 | H-1252-39 | KF-200HC-39 |
| 40 | Sealing Bar Return Spring | 2 | H-161-040 | KF-200HC-40 |
| 41 | Sealing Bar Return Spring Screw | 2 | H-293-041 | KF-200HC-41 |
| 42 | Silicon Rubber (Sealing Pad) | 1 | H-293-007 | KF-300HC-42 |
| 43 | Handle Knob Assembly (Includes 44, 51) | 1 | H-306HK | KF-200HC-43 |
| 44 | Handle Knob Washer | 1 | H-1252-44 | KF-200HC-44 |
| 45 | Blade Holder* | 1 | H-161-45 | KF-200HC-45 |
| 46 | Cutter Blade* | 1 | H-963-BLADE | KF-200HC-46 |
| Bulk Pack Cutter Blades | 6 | H-161C | ||
| 47 | Blade Fixed Plate* | 1 | ———- | KF-300HC-47 |
| 48 | Blade Fixed Screw and Nut* | 1 | H-963-48 | KF-400HC-48 |
| 49 | Heating Element Cover | 1 | H-963-49 | KF-200HC-49 |
| 50 | Heating Element Cover Screw | 1 | H-963-50 | KF-200HC-50 |
| 51 | Nut For Handle | 1 | H-1252-NUT | KF-200HC-43-1 |
| *Replacement Cutter Assembly Kit Includes: •Blade Holder #45 (1) •Cutter Blade #46 (1) •Blade Fixed Plate #47 (1) •Blade Fixed Screw Nut #48 (1) | 1 | H-293-8 | Cutter set | |
| **Replacement Microswltch Assembly Kit includes: •Microswltch Bracket #15 (1) •Insulated Plate #16 (1) •Microswltch #17 (1) •Microswltch Spring Plate #17-1 (1) •Microswltch Assembled Screw #18 (1) | 1 | H-306MS | Microswitch set | |
| r Service Kit (Includes: 2 Heating Elements, 2 PTFE Tape Strips, 2 PTFE Covers) | 1 | H-294 | KF-300HC-SK |
