ANETA LIGHTING 71010-01 Scan Strip
Installation should be performed by a qualified electrician
Aneta aluminium profiles
| PROFILE | 71010-01 71013-01 GLOW IP20 | 71011-01 71014-01 GLOW IP65 | 71012-01 71015-01 GLOW IP67 | 71016-01 71019-01 BRIGHT IP20 | 71017-01 71020-01 BRIGHT IP65 | 71018-01 71021-01 BRIGHT IP67 | 71030-01 71031-01 POWER IP20 | 71032-01 71033-01 COB IP20 | 71034-01 DUAL- WHITE IP20 | 71035-01 RGBW IP20 | 71036-01 RGBW IP65 | 71037-01 RGBW IP67 | 71221-01 71222-01 COB slim- line IP20 | |
| 71120-70 /-15 | RECESSED | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 71121-70 /-15 | SLIM | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 71122-70 /-15 | DEEP | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 71123-70 /-15 | XL | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 71124-23 | FLOOR | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 71125-23 | TILE | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 71126-70 /-15 | CORNER | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 71127-23 | PLASTER- BOARD | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 71128-23 | PLASTER- BOARD XL | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 71219-70 / 15 | NARROW | |||||||||||||

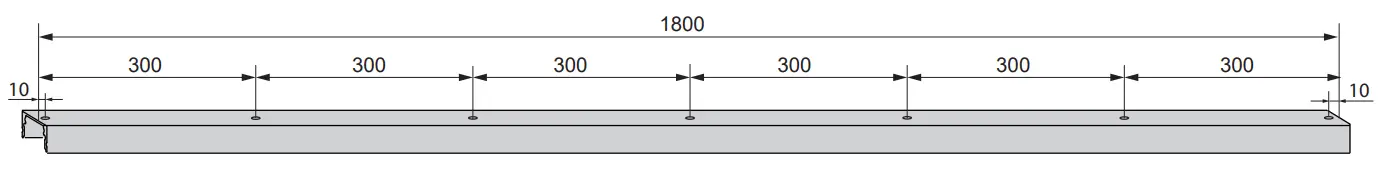

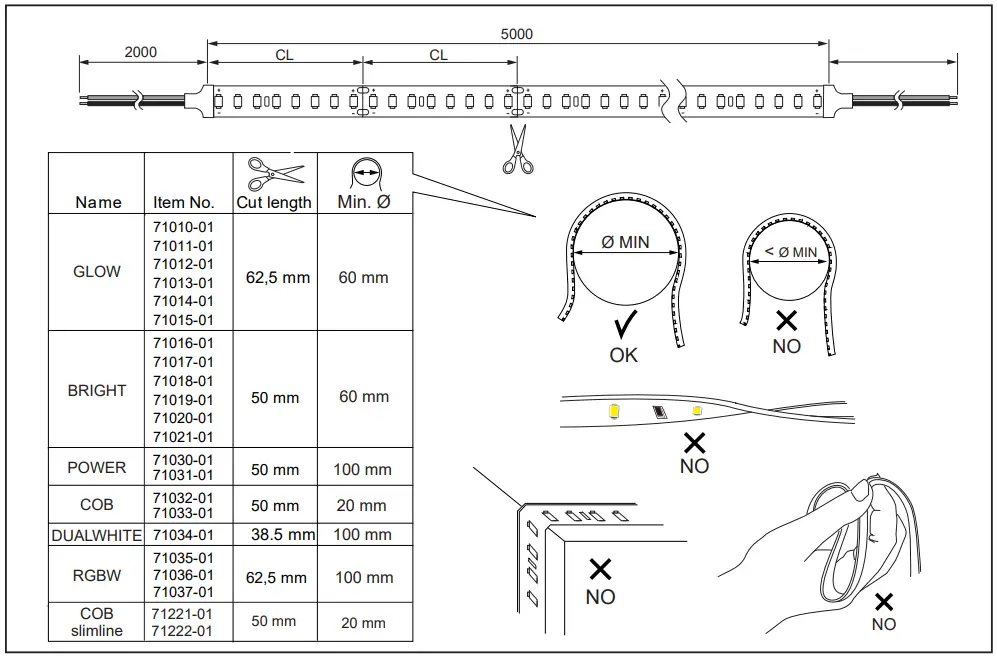

DIMENSIONS

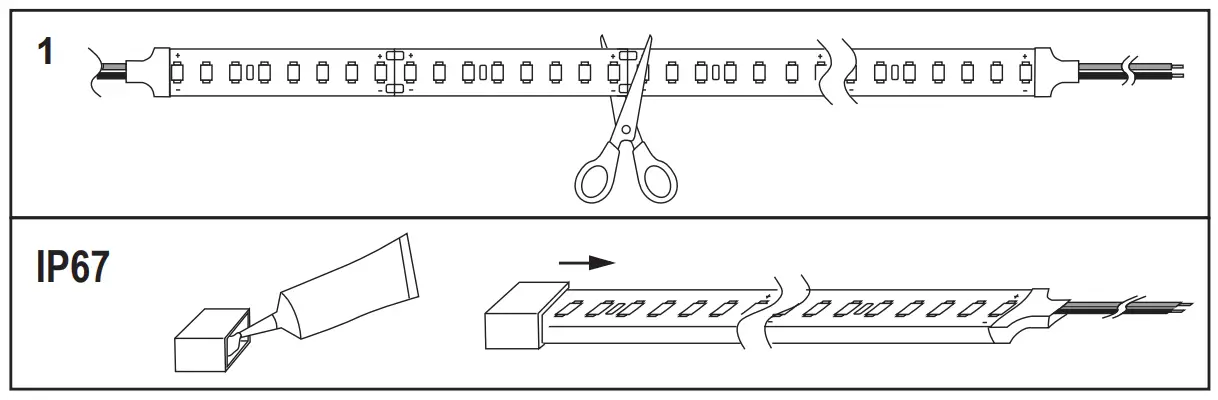

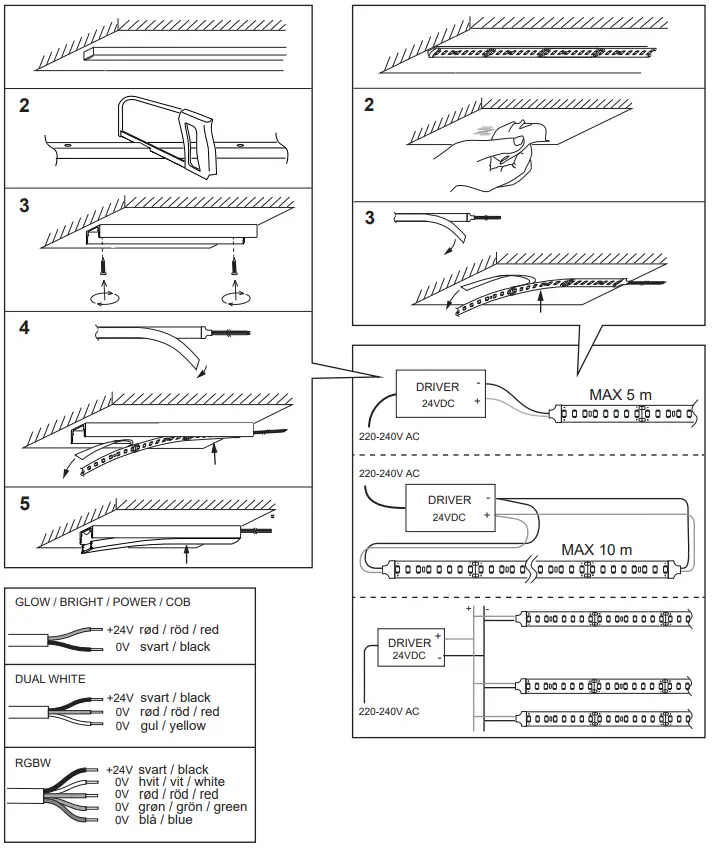

INSTALLATION INSTRUCTIONS
| 24V dimmable drivers | Wattage | Item No. |
| Scanstrip DIM12 IP65 | 2.5-12 W | 71060-01 |
| Scanstrip DIM25 | 2.5-25 W | 71061-01 |
| Scanstrip DIM50 | 12-50 W | 71062-0 |
| Scanstrip DIM100 | 34-100 W | 71063-01 |
| Scanstrip DIM200 IP67 | 67-200 W | 71064-27 |
| 24V NONdim Drivers | Wattage | Item No. |
| Scanstrip CTR18 | 0-18 W | 71158-01 |
| Scanstrip CTR40 | 0-40 W | 71159-01 |
| Scanstrip CTR75 | 0-75 W | 71160-01 |
| Scanstrip CTR150 | 0-150 W | 71162-01 |
