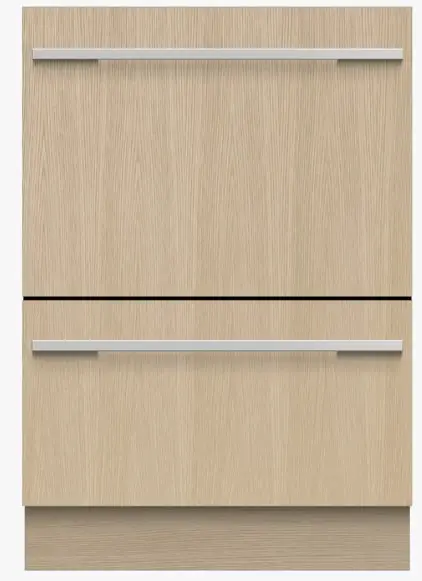

Fisher and Paykel DD24DHTI9 N Integrated Double DishDrawer Dishwasher User Guide
Doing the dishes got easier. Load one drawer while the other washes – with the top drawer fitting your large dinner plates easily.
- Knock to pause function is perfect if you miss a dish
- Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
- Built-in water softener improves wash performance by reducing unwanted minerals in the water
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

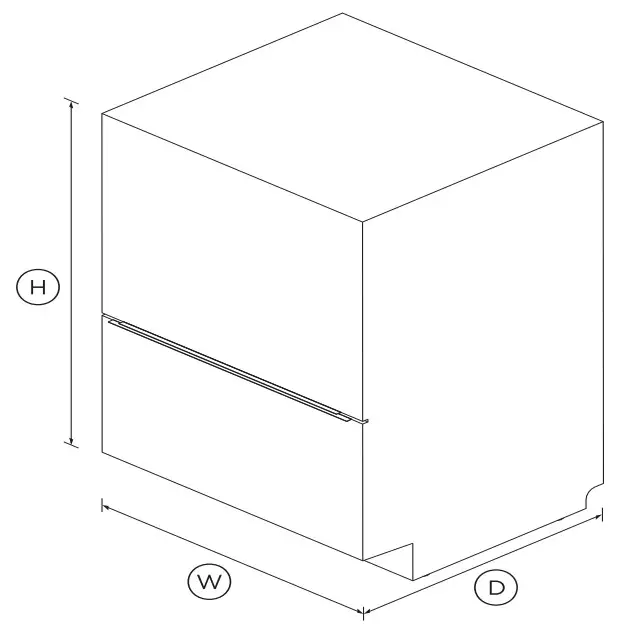

DIMENSIONS
- Height: 34 – 36 3/8″
- Width: 23 9/16″
- Depth: 22 1/2″
SPECIFICATIONS
Accessories
- Contemporary round handle: AHS-OBDD-60S
- Contemporary square fine: AHD5-OBDD-60S
- Contemporary square handle: AHD3-OBDD-60S
- Knife clip and multipurpose: •
- Professional round flush handle: AHP3-DWDD-SX
- Stainless steel door panel: ADDD24DTPX
Capacity and loading
- Accommodates round plates: 12.25″ (top) 11″ (bottom)
- Adjustable height, foldable: •
- Fold down tines: •
- Pitch adjustable tines: •
- Place settings: 14
- Place settings per drawer: 7
Consumption
- Energy rating: Energy star
Controls
- Child lock: •
- Electronic fault/Diagnostic: •
- End of cycle beeps: •
- Energy saving delay start: •
- Internal wash selector: •
- Knock to pause: •
- Rinse aid indicator light: •
- Wi-Fi connectivity: •
Features
- Built-in water softene: •
- Fan assisted drying: •
- Flow through detergent: •
- Motor type: BLDC
- Quiet operation: •
- SmartDrive™ technology: •
Performance
- Noise on standard cycle top: 44dBA
Power requirements
- Amperage: 9.6A
- Electric circuit: 3 wire
- Rated current: 15A
- Supply frequency: 60Hz
- Supply voltage: 120V
Product dimensions
- Depth: 22 1/2″
- Height: 34 – 36 3/8″
- Width: 23 9/16″
Warranty
- Parts and labor: Limited 2 years
Wash Program Modifiers
- Extra Dry: •
- Quick: •
- Sanitize: •
Wash Programs
- Delicate: •
- Eco: •
- Fast: •
- Heavy: •
- Medium: •
- Rinse: •
Water connection
- Supplied hose to suit 3/8″: •
- SKU: 82337
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
