QUICK REFERENCE GUIDE > DD24STI9 N
Integrated Single DishDrawer™
Dishwasher, Tall, Sanitize
Series 9 | Integrated
Panel Ready
Designed to fit your full-sized dinner plates, this DishDrawer™ can be placed anywhere in your kitchen, integrating seamlessly.
- Knock to pause function is perfect if you miss a dish Six wash programs, as well as additional Quick wash, Sanitize, and Extra Dry options
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- American Disabilities Act (ADA) compliant, this can be installed at an accessible height for loading and unloading

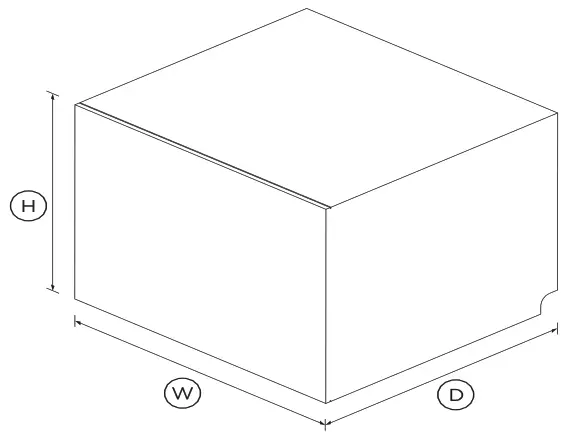

DIMENSIONS
| Height | 17 7/8″ |
| Width | 23 9/16″ |
| Depth | 22 1/2″ |
FEATURES & BENEFITS
Seamless integration
Slide your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry, for a seamless look whilst delivering superior dish care.
Ease of use
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
Quick, Sanitize and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Knock to pause
Instead of needing a remote control, these DishDrawer™ Dishwashers have a knock-to-pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.
Quiet performer
Running at a very low decibel rate, these DishDrawer™
Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Knife clip and multipurpose | • |
| Optional stainless steel door kit | DD24STI9 N |
| Capacity and loading | |
| Accommodates round plates | 12.25″ |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
Consumption
| Energy rating | Energy star |
QUICK REFERENCE GUIDE > DD24STI9 N
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
Features
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
Performance
| Noise on gentle cycle top | 44dBA |
Power requirements
| Amperage | 5A |
| Electric circuit | 3 wire |
| Rated current | 15A |
| Supply voltage | 120V |
Product dimensions
| Depth | 22 1/2″ |
| Height | 17 7/8″ |
| Width | 23 9/16″ |
Safety and compliance
| ADA compliant | • |
Warranty
| Parts and labour | Limited 2 years |
Wash Program Modifiers
| Extra Dry | • |
| Quick | • |
| Sanitize | • |
Wash Programs
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
Water connection
| Inlet water temperature | Max 140°F |
| Supplied hose to suit 3/8″ | • |
| SKU | 81220 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
