QUICK REFERENCE GUIDE > DD24SHTI9 N
Integrated Single DishDrawer™
Dishwasher, Tall, Sanitize
Series 9 | Integrated
Panel Ready
DD24SHTI9 N Integrated Single DishDrawer Dishwasher
Designed to fit your full-sized dinner plates, this DishDrawer™ can be placed anywhere in your kitchen, integrating seamlessly.
- Knock to pause function is perfect if you miss a dish
- Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
- Built-in water softener improves wash performance by reducing unwanted minerals in the water
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory

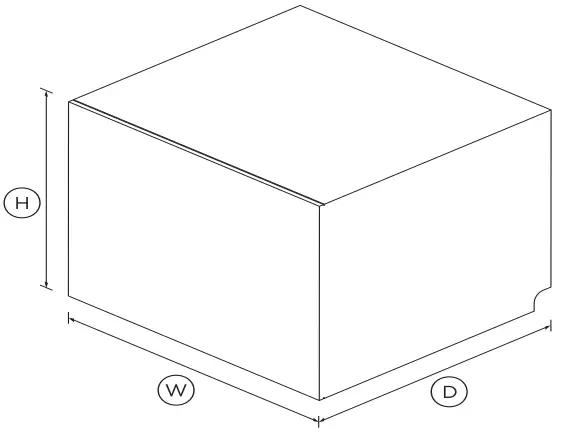

DIMENSIONS
| Height | 17 7/8″ |
| Width | 23 9/16″ |
| Depth | 22 1/2″ |
FEATURES & BENEFITS
Seamless integration
Slide your DishDrawer™ Dishwasher into an existing kitchen space or integrate it into kitchen cabinetry, for a seamless look whilst delivering superior dish care.
Quick, Sanitize, and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Ease of use
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
Knock to pause
Instead of needing a remote control, these DishDrawer™ Dishwashers have a knock-to-pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.
Quiet performer
Running at a very low decibel rate, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
Accessories
| Contemporary round handle | Part number 81671 |
| Cutlery basket | • |
| Optional handle | 513545 D3 front mount fitting |
| Optional stainless steel door kit | 81263 Door DD24ST |
Capacity and Loading
| Accommodates round plates | 12.25″ |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 7 |
Consumption
| Energy star rating | • |
| Energy usage | 152kWh/year |
| Water usage | 1.79 gal/cycle |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
Features
| Built-in water softener | • |
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
Performance
| Noise on gentle cycle top | 44 |
Power requirements
| Amperage | 5A |
| Electric circuit | 3 |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Product dimensions
| Depth | 22 1/2″ |
| Height | 17 7/8″ |
| Width | 23 9/16″ |
Warranty
| Parts and labor | Limited 2 Year Parts & Labor |
Wash Programs
| Delicate | • |
| Eco | • |
| Extra Dry | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Number of wash programs | 15 |
| Quick | • |
| Rinse | • |
| Sanitize | • |
| Wash modifiers | 3 |
Water connection
| Inlet water temperature | Max 140°F |
| Supplied hose to suit 3/8″ | • |
| Water pressure | 0.1 Mpa – 1 Mpa (14.5-145 psi) |
| SKU | 81219 |
TEST The product dimensions and specifications in this page apply to the specific
