Kitchen Kit Docu0034b Double Base Cabinet Instructions

Kitchen Kit Docu0034b Double Base Cabinet Instructions

KITCHEN logo

Double Base Cabinet Instructions
DOCU0034B

Contents hide
1 Fittings
2 Assembly
3 Documents / Resources
4 Related Posts

Fittings

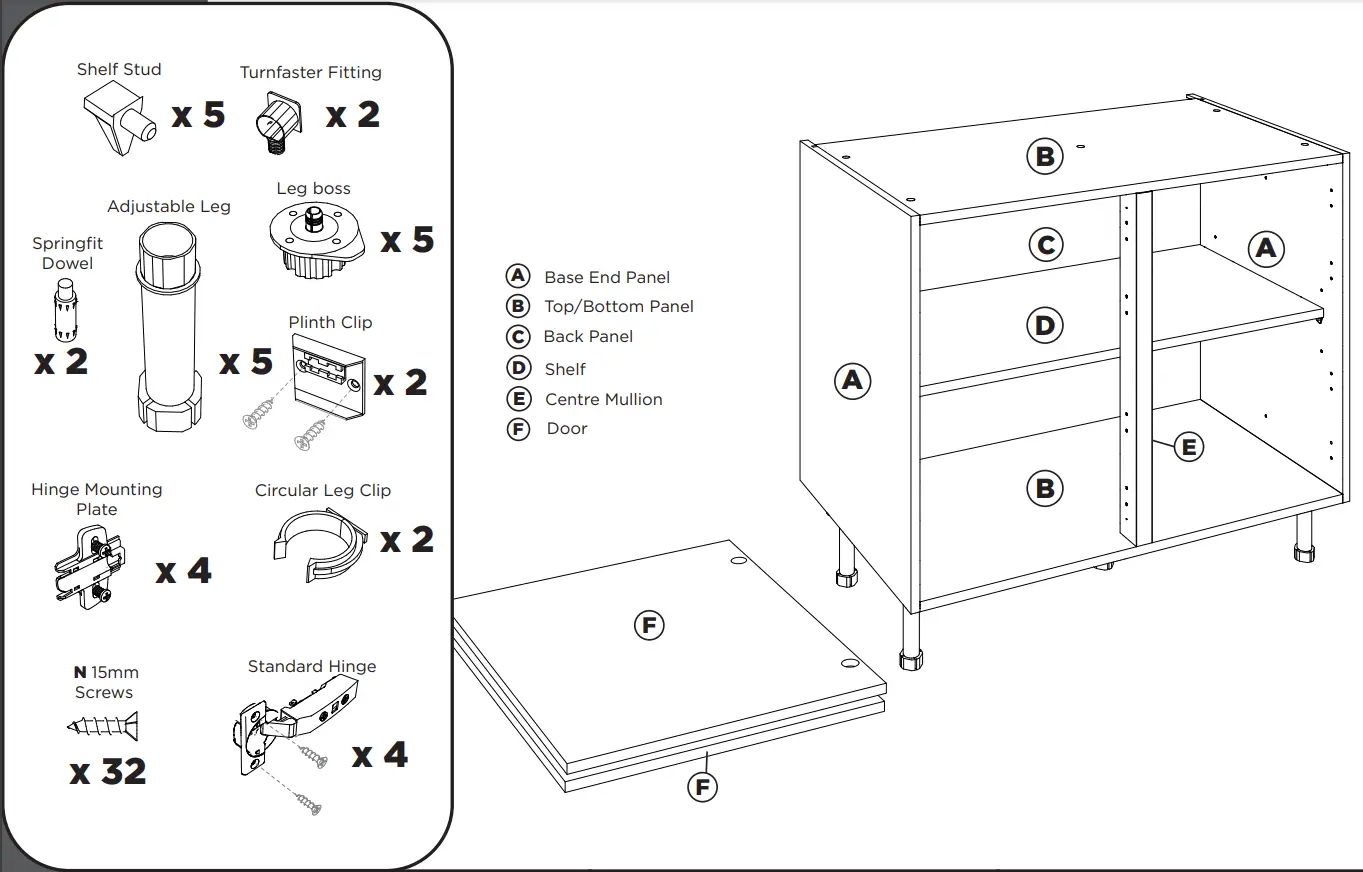

KITCHEN KIT DOCU0034B Double Base Cabinet - fig 1

Assembly

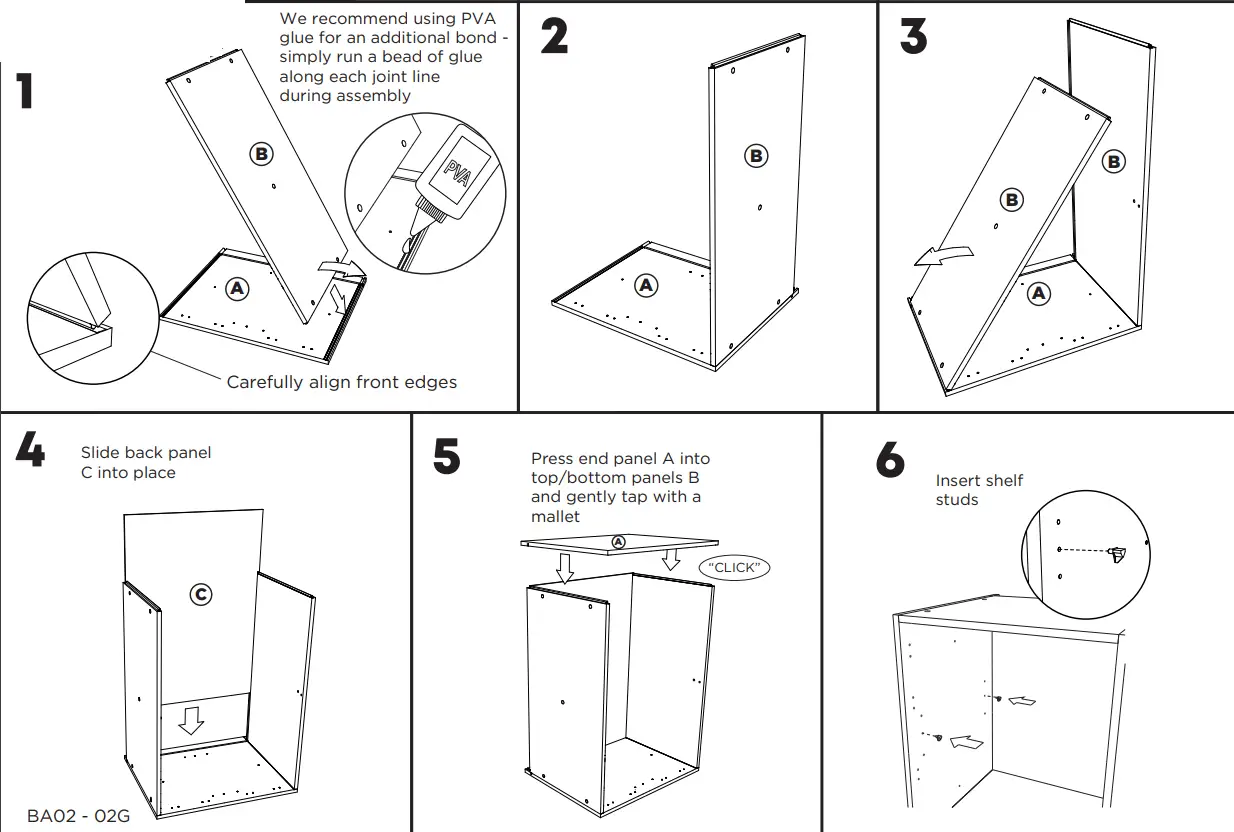

KITCHEN KIT DOCU0034B Double Base Cabinet - fig 2

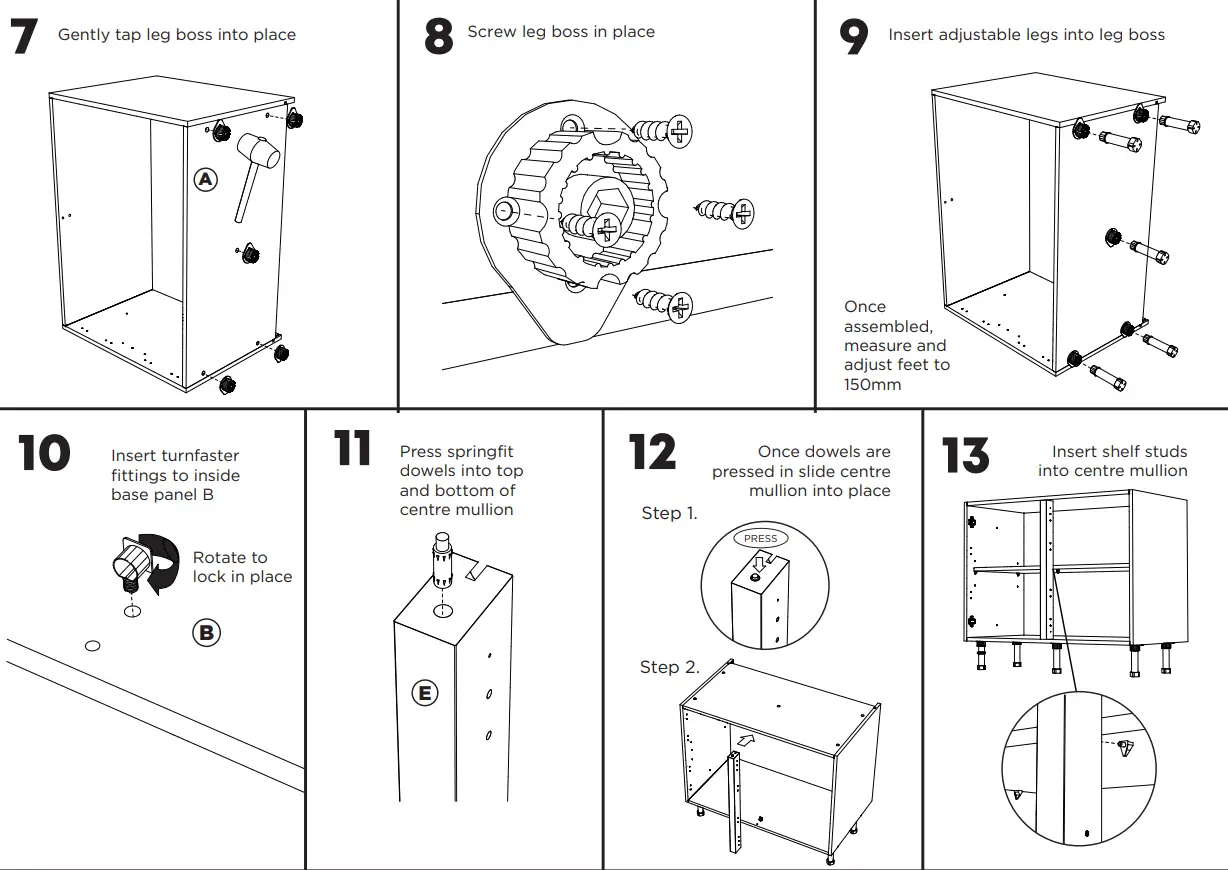

KITCHEN KIT DOCU0034B Double Base Cabinet - fig 3

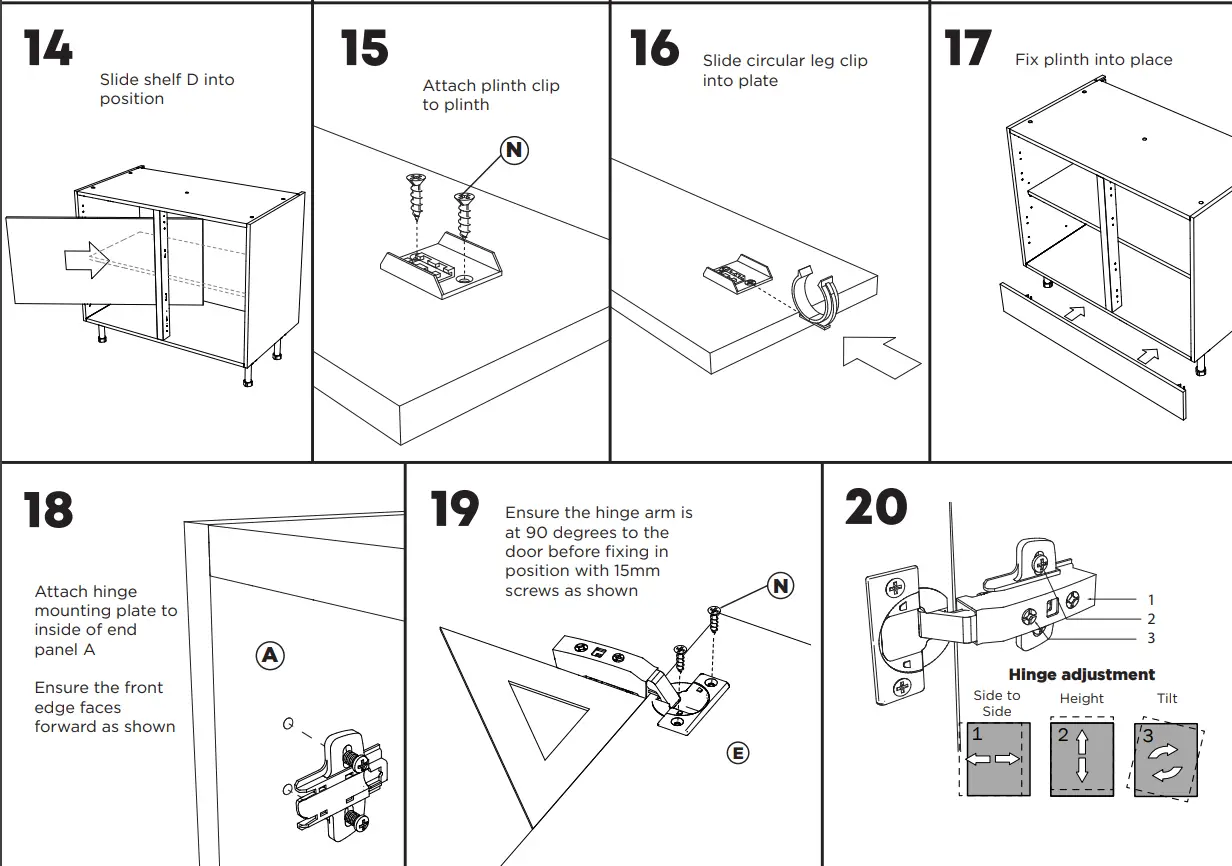

KITCHEN KIT DOCU0034B Double Base Cabinet - fig 4

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
