DD24SI9 N Integrated Single Dish Drawer Dishwasher
User Guide
Series 9 | Integrated
Panel Ready

Contents hide

1 DD24SI9 N Integrated Single DishDrawer Dishwasher

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

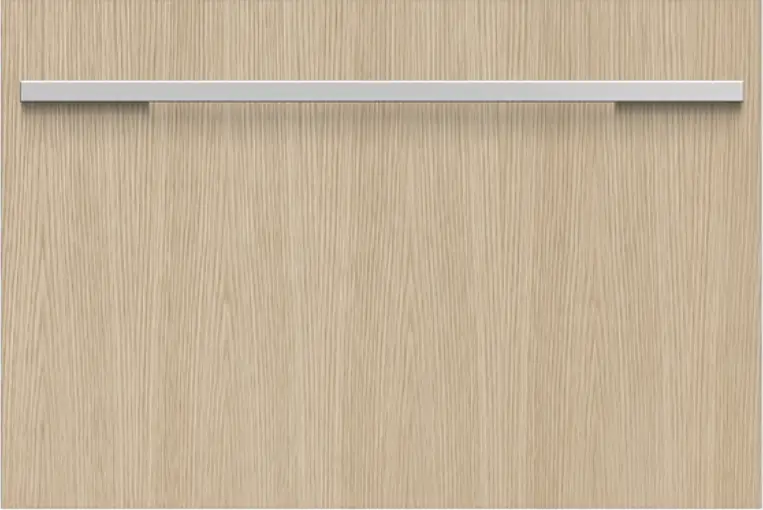

DD24SI9 N Integrated Single DishDrawer Dishwasher

A compact size to fit anywhere, room to wash a half load, and less bending.

Knock to pause function is perfect if you miss a dish
Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
American Disabilities Act (ADA) compliant, this can be installed at an accessible height for loading and unloading

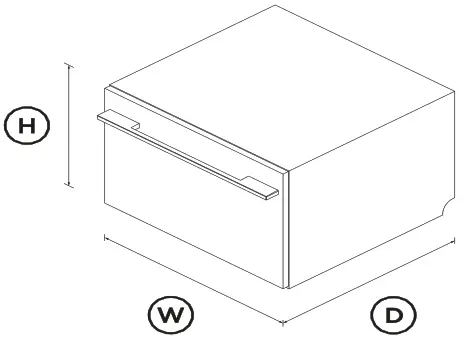

DIMENSIONS

Height	16 1/8″
Width	23 9/16″
Depth	22 1/2″

FEATURES & BENEFITS

SEAMLESS INTEGRATION
Slide your Dish Drawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry, for a seamless look whilst delivering superior dish care.
EASE OF USE
Dish Drawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
QUICK, SANITISE AND EXTRA DRY OPTIONS
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
KNOCK TO PAUSE
Instead of needing a remote control, these Dish Drawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.
QUIET PERFORMER
Running at a very low decibel rate, these Dish Drawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.

SPECIFICATIONS

Accessories
Contemporary round handle	AHS-OBDD-60S
Contemporary square fine	AHD5-OBDD-60S
Contemporary square handle	AHD3-OBDD-60S
Cutlery basket	•
Knife clip and multipurpose	•
Professional round flush handle	AHP3-DWDD-SX
Professional round handle kit	AHP2-DWDD-SX
Stainless steel door panel	ADDD24SPX
Capacity and loading
Accommodates round plates	11″
Adjustable height, fordable	•
Fold down tines	•
Pitch adjustable tines	•
Place settings	7
Consumption
Energy rating	Energy star
Water usage (per wash cycle)	1.6 gal
Controls
Child lock	•
Electronic fault/Diagnostic	•
End of cycle beeps	•
Energy saving delay start	•
Internal wash selector	•
Knock to pause	•
Rinse aid indicator light	•
Wi-Fi connectivity	•
Features
Fan assisted drying	•
Flow through detergent	•
Quiet operation	•
Smart Drive™ technology	•
Performance
Noise emissions	44dBA
Power requirements
Amperage	5 A
Electric circuit	3 wire
Rated current	15A
Supply voltage	120 V
Product dimensions
Depth	22 1/2″
Height	16 1/8″
Width	23 9/16″
Safety and compliance
ADA compliant	•
Warranty
Parts and labor	Limited 2 years
Wash Program Modifiers
Extra Dry	•
Quick	•

Sanitize	•
Wash modifiers	3
Wash Programs
Delicate	•
Eco	•
Fast	•
Heavy	•
Medium	•
Rinse	•
Wash programs	6
Water connection
Inlet water temperature	Max 140°F
Supplied hose to suit 3/8″	•
SKU	82342

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
