DD60SI9 Integrated Single Dish Drawer Dishwasher
User Guide
QUICK REFERENCE GUIDE > DD60SI9
Integrated Single Dish Drawer™
Dishwasher, Sanitise
Series 9 | Integrated
Panel Ready

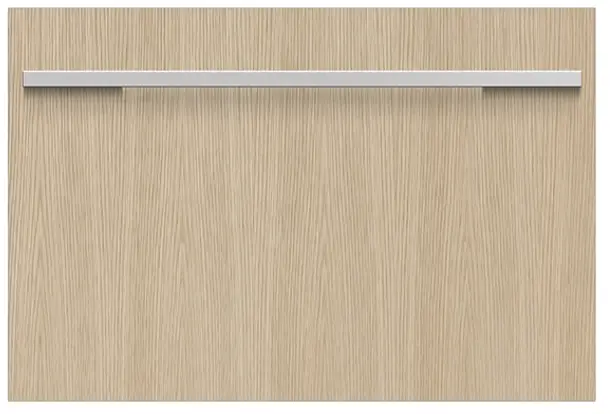

DD60SI9 Integrated Single Dish Drawer Dishwasher
Integrating into your kitchen design seamlessly, each drawer fits a half load that you can load and wash independently.
- Knock to pause function is perfect if you miss a dish
- Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry options
- Customise with your own front panel and handle to match your kitchen cabinetry

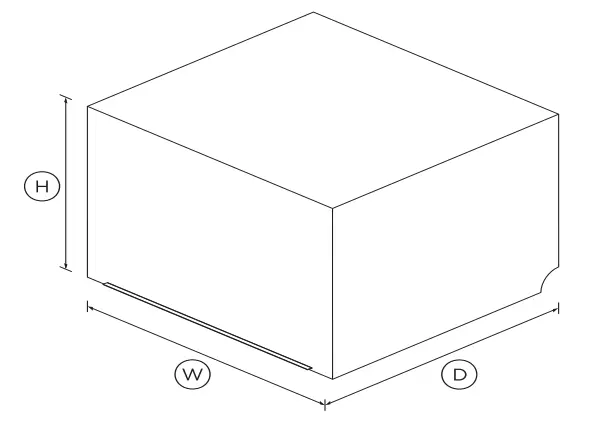

DIMENSIONS
| Height | 410mm |
| Width | 599mm |
| Depth | 571mm |
FEATURES & BENEFITS
EASE OF USE
Dish Drawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending.
QUICK, SANITISE AND EXTRA DRY OPTIONS
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
KNOCK TO PAUSE
Instead of needing a remote control, these Dish Drawer™ Dishwashers have a knock to pause function. A double knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.
QUIET PERFORMER
Running at a very low decibel rate, these Dish Drawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
| Accessories (included) | |
| Cutlery basket | • |
| Knife clip and multipurpose | • |
| Accessories (sold separately) | |
| Black stainless steel door panel | ADDD60SPB |
| Contemporary round handle | AHS-OBDD-60S |
| Contemporary square black | AHD3-OBDD-60B |
| Contemporary square fine | AHD5-OBDD-60SB |
| Contemporary square fine | AHD5-OBDD-60S |
| Contemporary square handle | AHD3-OBDD-60S |
| Stainless steel door panel | ADDD60SPX |
| Capacity and loading | |
| Accommodates round plates | 280mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 7 |
| Controls | |
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
| Wi-Fi connectivity | • |
| Features | |
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| Smart Drive™ technology | • |
| Performance | |
| Noise on standard cycle top | 43dBA |
| Power requirements | |
| Amperage | 4.2A |
| Product dimensions | |
| Depth | 571mm |
| Height | 410mm |
| Width | 599mm |
| Warranty | |
| Parts and labour | 2 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Quick | • |
| Sanitise | • |
| Wash Programs | |
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Water connection | |
| Water pressure | 0.1 Mpa – 1 Mpa |
| SKU | 82321 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T +65 6741 0777 Wwww.fisherpaykel.com
Date: 03.04.2023 > 2
