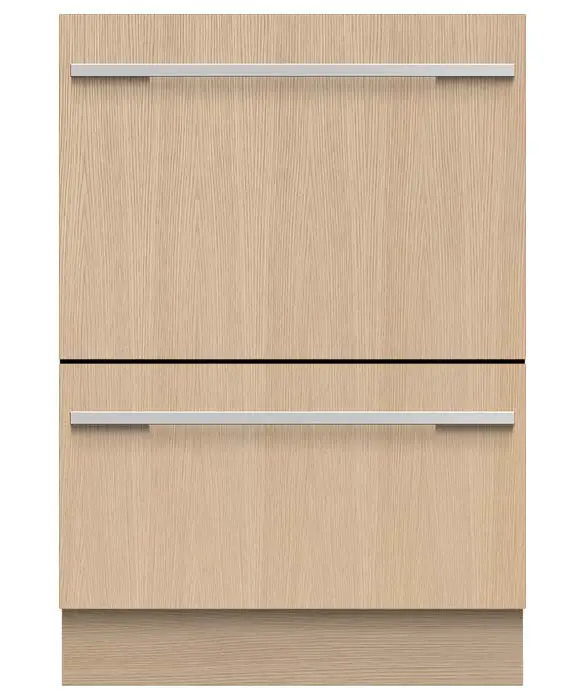

FISHER PAYKEL DD24DHTI9 N Integrated Double DishDrawer Dishwasher
Doing the dishes got easier. Load one drawer while the other washes – with the top drawer fitting your large dinner plates easily.

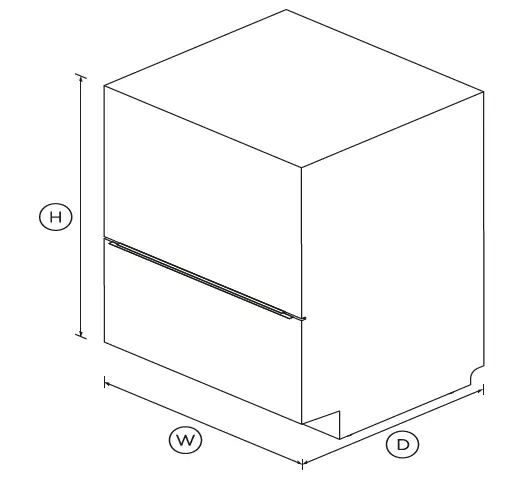

DIMENSIONS
| Height | 34 – 36 3/ 8 |
| Width | 23 9/ 16 |
| Depth | 22 1/ 2 |
FEATURES & BENEFITS
Seamless integration
Slide your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry, for a seamless look whilst delivering superior dish care.
Ease of use
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
Independent wash
With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
True half load
Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can run simultaneously to accommodate a variety of loads.
Quick, Sanitize and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Knock to pause
Instead of needing a remote control, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.
Quiet performer
Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
Accessories
| Cutlery basket | 2 |
| Kickstrip | • |
| Knife clip and multipurpose | • |
| Optional handle | 513545 D3 front mount fitting |
| Optional stainless steel door kit | 81261 Doors DD24DT |
Capacity and loading
| Accommodates round plates | 12.25″ (top) 11″ (bottom) |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings | 14 |
Controls
| Child lock | • |
| Electronic fault/Diagnostic | • |
| End of cycle beeps | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
Features
| Built-in water softener | • |
| Fan assisted drying | • |
| Flow through detergent | • |
| Quiet operation | • |
| SmartDrive™ technology | • |
Performance
| Noise on gentle cycle top | 44 |
Power requirements
- Amperage: 9.6A
- Electric circuit: 3
- Rated current: 15A
- Supply frequency: 60Hz
- Supply voltage: 120V
Product dimensions
| Depth | 22 1/ 2 |
| Height | 34 – 36 3/ 8 |
| Width | 23 9/ 16 |
Wash Programs
| Delicate | • |
| Eco | • |
| Extra Dry | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Number of wash programs | 15 |
| Quick | • |
| Rinse | • |
| Sanitize | • |
| Wash modifiers | 3 |
Water connection
| Inlet water temperature | Max 140°F |
| Supplied hose to suit 3/8″ | • |
| Water pressure | 0.1 Mpa – 1 Mpa (14.5-145 psi) |
| SKU | 81216 |
Other product downloads available at fisherpaykel.com
- Quick Start Guide
- User Guide
- Service & Warranty Booklet
- Installation Guide
- Resources (zip)
