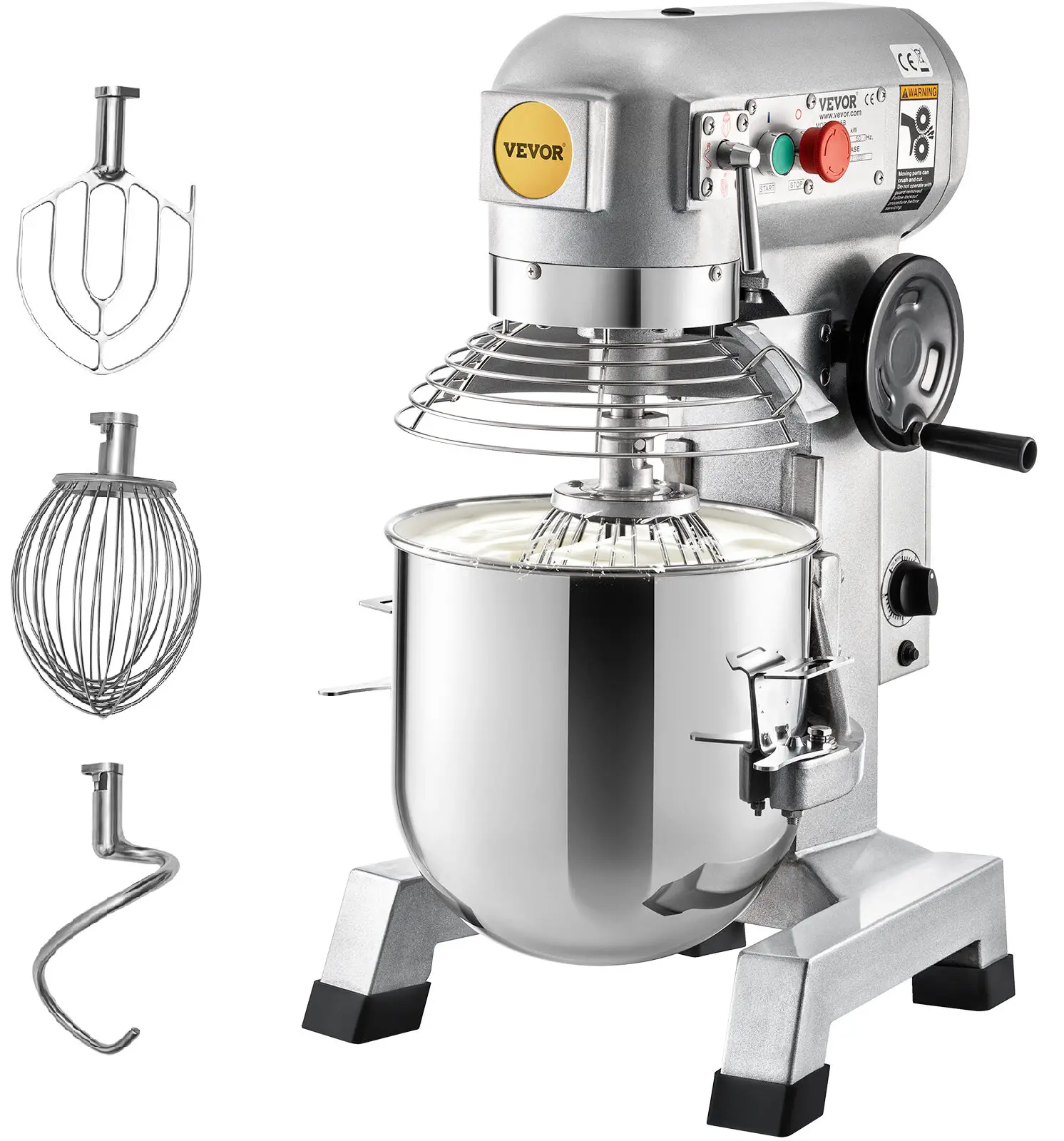

VEVOR B15B Series Food Mixers
Main Specialty
- According to the planet movement theory，beater moves like planets in the bowls so that the food is mixed completely.
- They have three-range rotation speed.
- All the spare parts in the machines are made of premium stainless steel to ensure that they meet the national hygiene standard for food.
- The machine is good looking, easy operable and high in efficiency.
Technical Specifications
|
Model | Bowl Volume (L) | Voltage (V) | Rated Frequency (Hz) | Power (kW) | Max. Kneading Capacity(kg) | Mixing Speed (r/min) |
Size(mm) |
| B15B | 15 | ~110 | 60 | 0.5 | 1.5 | 110/178/390 | 474×372×676 |
Operation and Notes
Before use， ensure the emergency stop button is released, the safety cover is closed well and the mixing bowl in the right/highest position. Check that the power supply corresponds to that required by the machine. Check that the external earthing wire is reliably connected. The machine which 3 phase motor must be checked that the machine rotates in the direction indicated by the rotation mark.If the rotation direction is wrong, change the two of the three livewires to each other. Note For test of machine， mixing tools should never be installed otherwise they would fall out in case of wrong rotation direction and cause damage to machine parts.
Select speed and agitator
- a)Dough arm: It is frequently used for heavy bread dough， the weight of flour is indicated by the mark， the weight of water is 47%~50%of the fill flour， and preferable to be used at low speed.
- b)Beater: It is commonly used for thin batters， cakes, and mashing potatoes， like stuffing， and preferable to be used at middle speed.
- c) Wire whip: It is best for whipping cream and beating eggs and is preferable to be used at high speed.
Important notice: Stop the machine to change speed， don’t mix the dough at middle or high speed.
Bowl lift:
- a) When mixing， rotate the hand wheel to raise the bowl until you feel it touch the stop， this also makes the bowl more accessible for filling.
- b) After mixing， rotate the hand wheel to lower the bowl. It is necessary to lower the bowl to change agitators, avail to remove the bowl or agitators.
Note: When assembling an agitator the bowl must be in the down position, Slip the agitator up on the shaft and turn until the driving pin in the shaft reaches the L-shaped slot in the agitator shank, avoid the agitator to be fallen down in running.
Maintenance
After use each time，an carefully the bowl agitators etc，make sure to keep the machine clear. Lubricate the bowl slide ways occasionally by applying a small amount of oil or grease with the tip of linger.
Troubleshooting
| Trouble | Probable cause | Remedy | ||||||||
| The mixing shaft doesn’t rotate after switch on | Electric connectors are loose | Check he electric circuit, tighten those loose connectors | ||||||||
| Oil leakage | Oil seals are worn out | Replace those oil seals | ||||||||
|
The raising handle is too tight | Guide ways are corroded | Clean and oil the guide ways | ||||||||
| The lead screw, bevel gear and hand wheel shaft etc is dry | Oil them | |||||||||
|
Temperature rise of motor is too high, below speed | Lack of voltage | Check the supply voltage | ||||||||
| Over load | Less load | |||||||||
| The working speed selected is too high or agitator is not suitable | Select agitator | a | suitable | speed | and | |||||
| The noise of the gearbox is serious, its temperature is too high | Lubrication is insufficient | Add or replace the oil | ||||||||
| The agitator knocks with the bowl | The agitator deformed | or | the | bowl | is | Repair or replace deformed part | ||||
|
Unable to open the machine | Cover opened, bowl lifted down or emergency stop button opened | Close the safety cover, bowl lift up, release the emergency stop button | ||||||||
