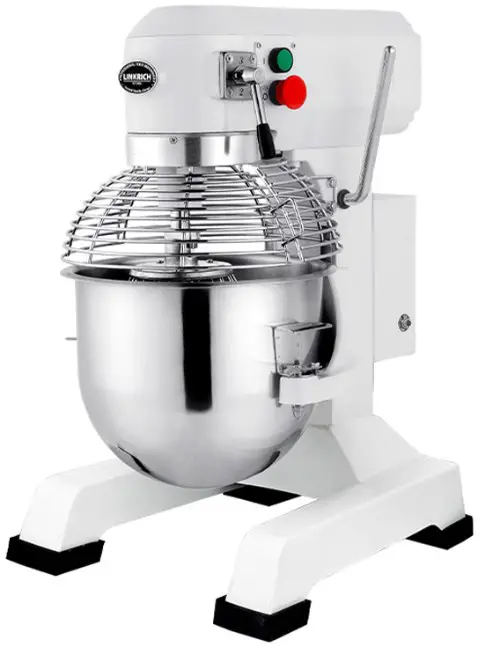

LinkRich B15BT Series Food Mixers User Manual
Main Specialty
- According to the planet movement theory，beater moves like planetsinthebowls so that the food is mixed completely.
- They have three-range rotation speed.
- All the spare parts in the machines are made of premiumstainless steel toensure that they meet the national hygiene standard for food.
- The machine is good looking, easy operable and high in efficien
Technical Specifications
| Model | Bowl Volume (L) | Voltage (V) | Rated Frequency (Hz) | Power (kW | Max. Kneading Capacity(kg) | Mixing Speed (r/min) | Size(mm) |
| B15BT | 15 | ~110 | 60 | 0.5 | 1.5 | 110/178/390 | 474×372×676 |
Operation and Notes:
Before use，check that power supply corresponds to that required by themachine.Check that the extern earthing wire is reliably connected.
The machine which 3 phase motor must be checked that the machinerotatesinthe direction indicated by the rotation mark .If the rotation directionis wrong,change the two of the three livewires each other. Note For test of machine，mixingtools should never be installed otherwise they would fall out in caseof wrongrotation direction and cause damage to machine parts. Select speed and agitator:
a)Dough arm: It is frequently used for heavy bread dough，the weight of flourindicated by the mark，the weight of water is 47%~50%of the fill flour andpreferable to be used at low speed.
b)Beater: It is commonly used for thin batters，cakes and mashing potatoes likestuffing，and preferable to be used at middle speed.
c) Wire whip: It is best for whipping cream and beating eggs, and preferabletobeused at high speed.
Important notice: Stop the machine to change speed，don’t mix doughat middleor high speed.
Bowl lift:
a) When mixing，rotate the hand wheel to raise the bowl until you feel it touchthestop，this also makes the bowl more accessible for filling.
b) After mixing rotate the hand wheel to lower the bowl. It is necessarytolowerthe bowl to change agitators, avail to remove the bowl or agitators.
Note: When assembling an agitator the bowl must be in the down position, Slipthe agitator up on the shaft and turn until the driving pin in the shaft reachestheL-shaped slot in the agitator shank, avoid the agitator to be fallendowninrunning.
Maintenance
After use each time，an carefully the bowl agitators etc，make sure= to keep the machine clear.
Lubricate the bowl slide ways occasionally by applying a small amount of oil orgrease with the tip of linger.
Trouble shooting
| Trouble | Probable cause | Remedy |
| The mixing shaft don’t rotates after switch on | Electric connectors are loose | Check he electric circuit, tightenthose loose connectors |
| Oil leaka | Oil seals are worn out | Replace those oil seals |
| The raising handle is too tight | Guide ways are corroded | Clean and oil the guide ways |
| The lead screw, bevel gear and hand wheel shaft etc is dry | Oil them | |
| Temperature rise of motor is too high, below speed | Lack of voltage | Check the supply voltage |
| Over load | Less load | |
| The working speed selected is too high or agitator is not suitab | Select a suitable speedandagitator | |
| The noise of the gearbox is serious, its temperature is too high | Lubrication is insufficient | Add or replace the oil |
| The agitator knocks with the bowl | The agitator or the bowl is deformed | Repair or replace deformedpart |
