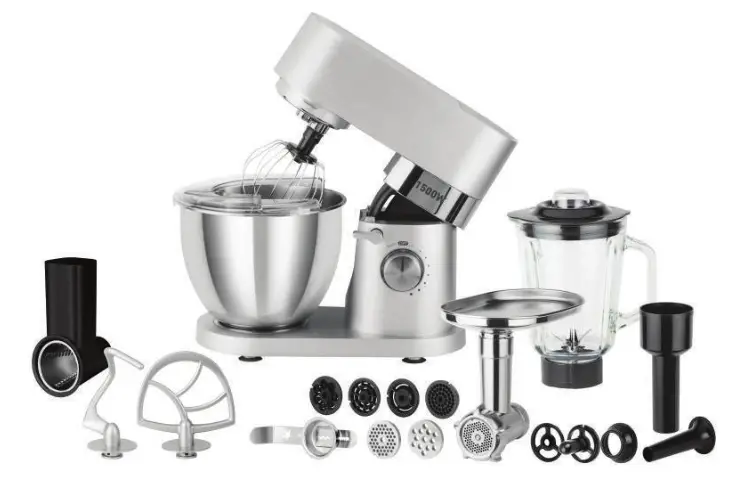

STAND MIXER

PHSM 9100
User’s Manual

Dear customer,
Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user’s manual.

IMPORTANT SAFETY PRECAUTION

READ CAREFULLY AND STORE FOR FUTURE USE.

• Children must not use this appliance or play with it. Keep this appliance and its power cord out of reach of children.
• This appliance may be used by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use the product in
  a safe manner and understand the potential dangers.
• Make sure that all packaging material is out of reach of children, especially plastic bags.

WARNING!
Do not allow children to play with the packaging materials.
This presents a risk of suffocation.

• Before connecting this appliance to a power socket, make sure the voltage stated on its rating label corresponds to the voltage in your power socket.
• Never use accessories, which have not been supplied with this appliance or which have not been explicitly recommended by the manufacturer.
• The appliance is intended and designed for processing a standard amount of food in the household.
• Do not use the appliance for any other purposes than those intended.
• Do not use the appliance in an industrial environment or outdoors.
• Do not place the appliance on window sills or on unstable surfaces. Only place the appliance on an even, dry and stable surface.
• Do not place the appliance on an electric or gas stove, in the vicinity of an open flame, or on appliances that are sources of heat.
• Ensure that the power plug contacts do not come into contact with water or moisture.
• Never use multiple attachments simultaneously.
• Do not wash the appliance (except for the removable parts) under running water and do not submerge it in water or any other liquid.
• Always turn off the appliance, disconnect it from the power socket when not be using it, when leaving it without supervision, and before assembling, disassembling, cleaning or moving it. Prior to disassembling the appliance and replacing accessories or accessible parts that move during use, wait until all moving parts come to a stop.
• For safety reasons, this appliance is equipped with a safety mechanism that prevents the motor from being started if the appliance’s arm is tilted out.
• Before putting the appliance into operation, check that it is correctly assembled and that the arm is in the horizontal position.
• Allow hot liquids or food to cool down before mixing them.
• Do not attempt to grind bones, nut shells or other hard ingredients.
• Do not leave the appliance in continuous operation under a heavy load for a period longer than 15 minutes. Before turning it on again, allow it to cool down for at least 30 minutes.
• Do not tilt out the arm or put your hands or items, such as a kitchen knife, fork or wooden spoon, into the bowl while the appliance is running. Do not touch rotating parts of the appliance or attachments and ensure that foreign items such as clothing, hair, etc. are kept away. An injury could occur or the appliance could be damaged.
• If an item, such as a spoon, falls into the mixing bowl while the appliance is running, immediately set the speed control knob to position 0 (standby mode), disconnect the power cord from the power socket, and take the item out of the bowl.
• If ingredients stick to the attachments or the inside of the bowl, turn off the appliance and disconnect it from the power socket. Use a spatula to clean the attachments and the inside of the bowl. Then you can continue mixing.
• Never use your fingers or other items to push ingredients through the feed tube of the meat grinder or the slicing and grating attachment. For this purpose, there is a pusher included as an accessory to this appliance.
• Do not turn the appliance on when empty. The incorrect use of the appliance may negatively affect its lifetime.
• Before storing the appliance, check that the stand arm is tilted to the horizontal position.
• Do not place heavy items on the power cord. Make sure the power cord does not hang over the edge of a table or that it does not touch a hot surface.
• Do not disconnect the appliance from the power socket by pulling on the power cord. This could damage the power cord or the power socket. Disconnect the cord from the power socket by gently pulling the plug of the power cord.
• If the power cord is damaged, have it replaced at a technical service center. It is forbidden to use the appliance if it has a damaged power cord or plug.
• To avoid the danger of injury by electrical shock, do not repair the appliance yourself or make any adjustments to it. Have all repairs or adjustments of the appliance performed at an authorized service centre. By tampering with the appliance you risk voiding your legal rights arising from unsatisfactory performance or quality warranty.

AC 220 – 240 V 50 Hz 1500 W
Save these instructions

SPEED CONTROL SWITCH

* Do not use “Blender” to mix heavy mixtures (e.g. bread or short pastry)
* Set Speed Control Switch to “OFF” after the job is complete.
RECOMMENDED SPEED SETTINGS AND OPERATION TIME

Accessories	Picture	Speed level	Rotating Speed	Time
Meat Grinder		Speed 4 – 5 for cookies	80 – 100 rpm	6 min
		Speed 7 – 8 for meat	130 – 150 rpm
Dough Hook		1	40 – 50 rpm	6 min
Flat Beater		2 – 7	50 – 130 rpm	6 min
Balloon Whisk		8	150 rpm	6 min
Blender		Blender	>20000 rpm	2 min
Vegetable slicer		8	150 rpm	3 min
Pasta maker		4 – 5	80 – 100 rmp	6 min

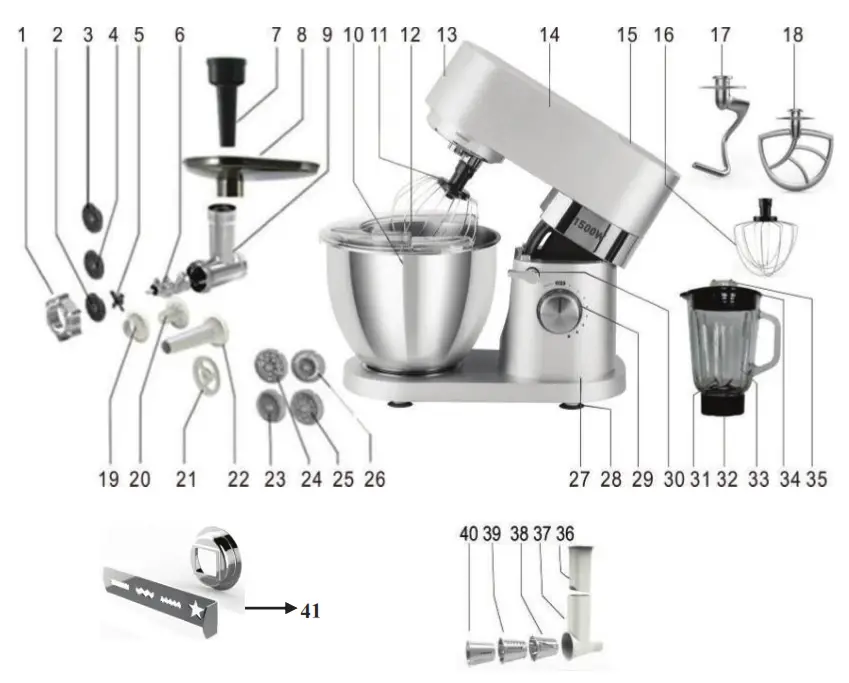

FEATURES AND FUNCTIONS

OPERATING POSITIONS

Warning!
Do not operate the appliance for more than 15 minutes.
After one time use, the Appliance should be cooled down for 30 minutes.
Use speed 4 or 5 to make pasta.
Do not use two or more two functions in the same time.
Do not make pasta exceed 500g of dough continuously. After making pasta with 500g dough, the Appliance needs 30 minutes of rest to cool down.
Operate the appliance only when the accessory/tool is attached according to this table and is in the operating position.
Always keep the bowl in the appliance when during the operation any function

No.	Output position	Accessories
1
2
3
4
5		Assemble Dough Hook, Flat Beater, or Balloon Whisk, according to your desire.

Risk of injury from the rotating tools!
While the appliance is operating, keep your fingers clear of the mixing bowl. Do not change tools until the appliance is at a standstill and has been unplugged. When switch off, the drive continues running briefly.

 HOW TO USE:

DOUGH HOOK, FLAT BEATER, BALLOON WHISK

7		Remove flat mixing hook (Flat beater, balloon whisk, or dough hook) clockwise.
8		Remove bowl cover.
9		Remove bowl with prepared food counter-clockwise

MEAT GRINDER / SAUSAGE MAKER / PASTA MAKER / COOKIES MAKER

	Press the arm down until hear the “click”. Take off the front protection cover upwards. Keep the bowl in the appliance when use this function.
	Following the sequence shown in the picture, assemble the worm shaft, cutting blade and cutting disc into the cutting meat canister, then assemble the cutting screw bar into the cutting meat canisMake sure the cutting blade direction as the picture show.
	Following the sequence shown in the picture, assemble the worm shaft, conductor, and meatball canister into a cutting meat canister. then assemble cutting screw bar into the Cutting meat canister clockwise.

* Please remember to disassemble the cutting canister/cylinder from the appliance, when changing these accessories.
* Always keep the mixing bowl in the appliance when use any function of the appliance.

	Following the sequence shown in the picture assemble the worm shaft, lead cover, and sausage canister into the cutting meat canister; then assemble the cutting screw bar into the cutting meat canister clockwise.
	Following the sequence shown in the picture, assemble the worm shaft and noodle accessory into the cutting meat canister, then assemble the cutting screw bar into the cutting meat canister clockwise.
	Following the sequence shown in the picture, assemble the worm shaft, lead cover, and cookies maker accessory into the cutting meat canister, then assemble the cutting screw bar into the cutting meat canister clockwise.
	Align the arrow on the end of the cutting cylinder to the other one on arm, about a 45-degree angle, then turn it counter-clockwise to assemble the prepared cutting meat canister into arm front output shown in the picture.  Fasten the cutting screw bar after cutting the meat canister fixed correctly.
	Assemble the loading tray into the cutting meat canister then place another bowl or container under the outlet of the cutting meat canister.
	Turn the control switch to the appropriate speed then put food into the feeding inlet with a pusher to push down food.

	When food ready, Turn the Control switch to the “OFF” position, Then unplug and cut off power. Remove the pusher and loading tray.

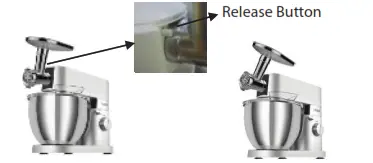

	Press the release button near the front output by one hand, while another hand removes the cutting meat canister from the arm clockwise.
	Assemble the front protection cover downwards. Do not use other functions when using a meat grinder.

VEGETABLE SLICER

	According to your need, assemble one of the slicers cutting disc into a slicer canister

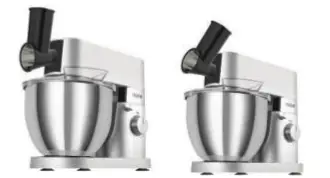

	Align the arrow on the cutting cylinder to the other one on arm then assemble the prepared Slicer canister into the arm counter-clockwise shown in the picture.
	Turn the control switch to the appropriate speed then put food into the feeding inlet with pusher to push down food.
	Turn the control switch to “OFF” counter-clockwise when food is ready, then unplug and cut off power. Remove pusher.
	Press the release button near the front output, and remove the slicer canister from the arm clockwise.
	Assemble the front protection cover downwards. Do not use other functions when using the vegetable slicer.

BLENDER

	Open the safety cover. Do not use other functions when using the blender
	Put the glass jar, with food loaded and covered by jar lid, on the Appliance properly. Power on. Set the speed control switch to „Blender“. Do not release the arm, when the glass jar on the Appliance.
	Put the safety cover back after the food is ready.

CLEANING AND SERVICING

Before cleaning, make sure to unplug the appliance from the main socket and allow it to cool down.
Never immerse the base unit in water or hold it under running water.
Do not use abrasive detergents or alcohol to clean the main unit and bowl cover.
Wipe the unit with a damp cloth, if required; use a little washing-up liquid to clean the exterior of the appliance.
Then wipe the unit dry.
Mixing bowl and bowl cover can be washed under a tap and need to be wiped dry.
The dough hook, flat beater, balloon whisk, meat grinder, sausage maker, and vegetable maker are not dishwasher safe.
Accessories should only be cleaned in warm, soapy water, and rinsed and dried thoroughly.
After washing and drying, immediately place the attachment into the protective sleeve for storage.
Do not wedge plastic parts in the dishwasher as they could be warped.

CAPABILITY OF BOWL

1.0 kg flour and 0.55 kg water.
Application examples:

	Beating of egg-white 8 egg-white in the BOWL with the Balloon whisk at speed 8. Kb 6 – 8 minutes.
	Beating of cream 600 g cream with the Balloon whisk in the BOWL at speed 2-7. Kb 6 – 8 minutes.
	Kneading of dough 1000 g flour 200 g chopped almonds 15 g salt 28 g butter 28 g sugar App. 550 g water (Temperature 40 +/- 2 °C). Kb 6 – 8 minutes at speed 1

Our company reserves the ultimate right of explanation of this Instruction Manual.
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS
Dispose of packaging material at a public waste disposal site.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES
The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states, you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection center for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.
For business entities in the European Union
If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.
Disposal in other countries outside the European Union
If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.
This product meets all the basic EU regulation requirements that relate to it.
Changes to the text, design, and technical specifications may occur without prior notice and we reserve the right to make these changes.
