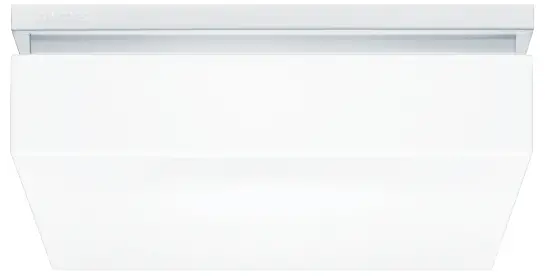

ZUMTOBEL Perluce Q620 LED Luminaire

ZUMTOBEL-Perluce-Q620-LED-Luminaire-PRODUCT

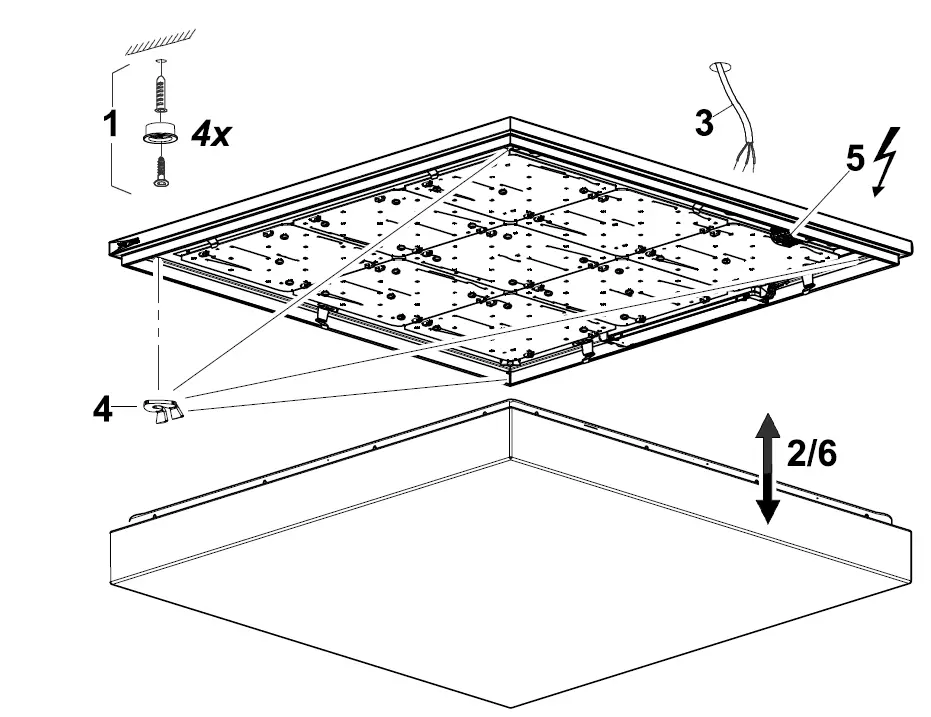

WHAT IN THE BOXZUMTOBEL-Perluce-Q620-LED-Luminaire-FIG-1

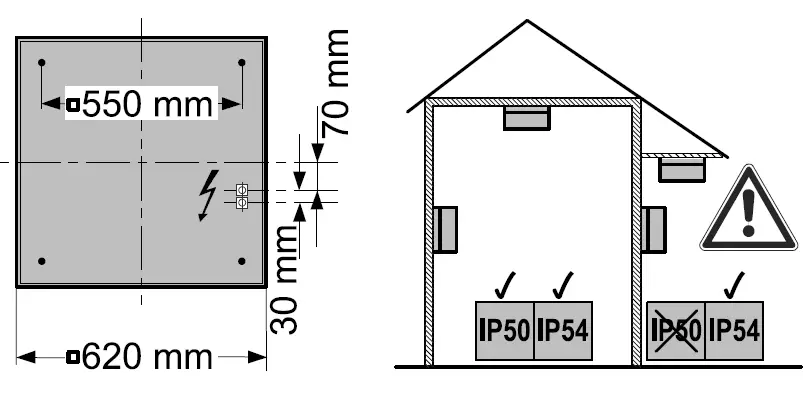

DIMENSIONZUMTOBEL-Perluce-Q620-LED-Luminaire-FIG-2

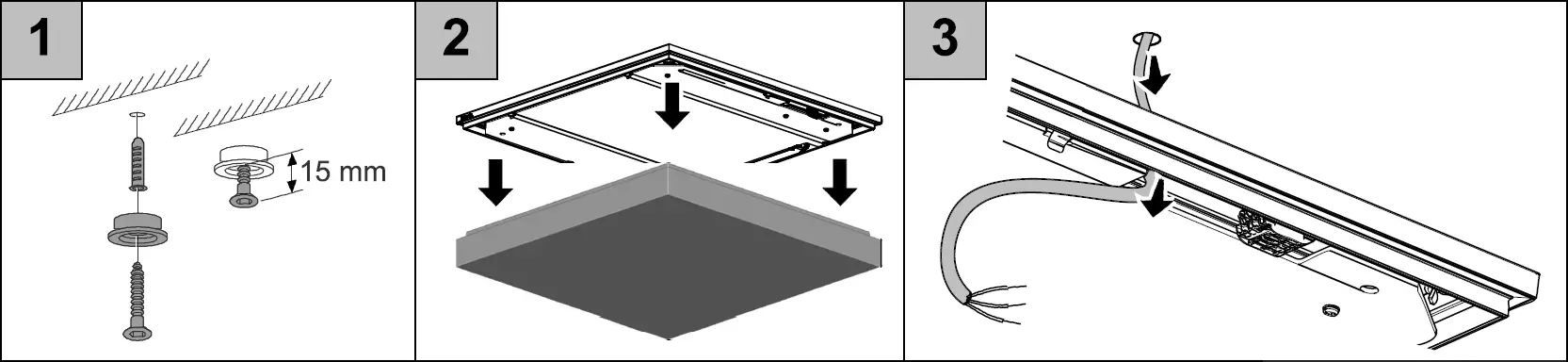

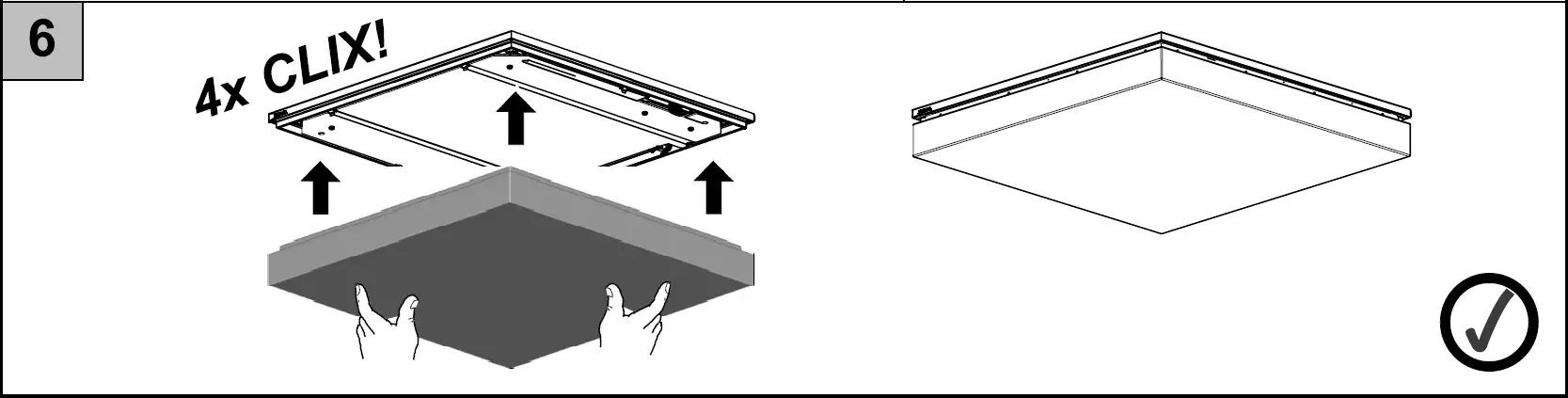

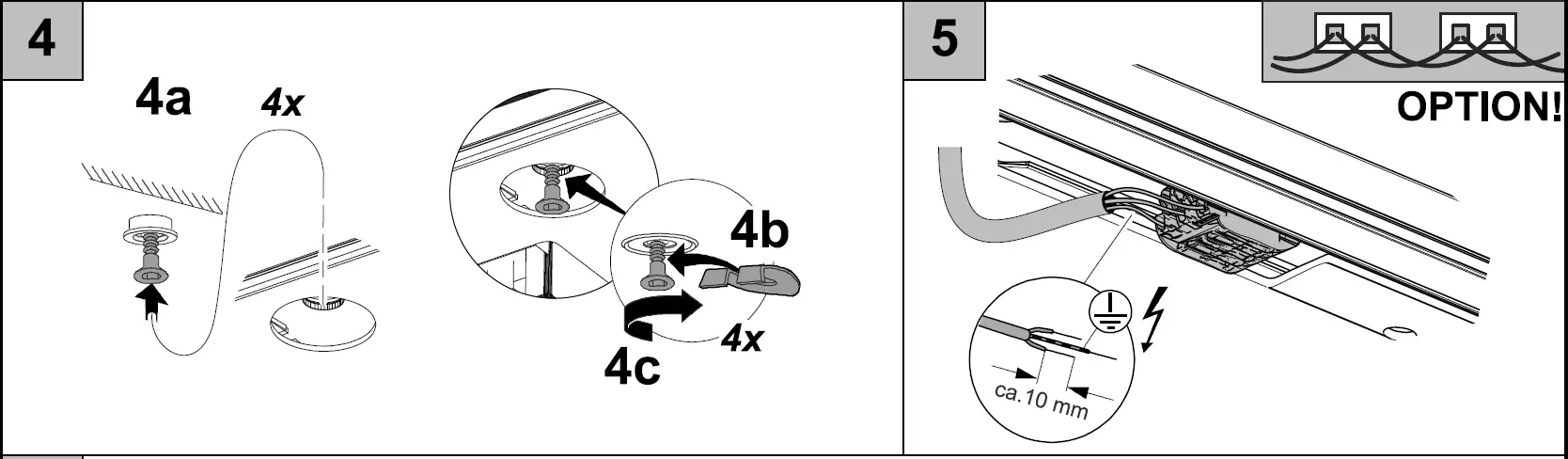

INSTALLATIONZUMTOBEL-Perluce-Q620-LED-Luminaire-FIG-3ZUMTOBEL-Perluce-Q620-LED-Luminaire-FIG-4ZUMTOBEL-Perluce-Q620-LED-Luminaire-FIG-5

Note: Due to problems with chemical resistance, choose cleaning materials which are suitable for plastic.

Instructions for installation and operation
The installation and commissioning of the luminaire as well as any modification to the luminaire may only be performed by authorized personnel (qualified electrician). National installation regulations must be observed. Before any work on the appliance is done, it must be disconnected from mains. Hot plug-in is not an option and may cause damage to the lamp or luminaire

The manutacturer is not liable for damages resulting from improper or faulty installation or operation or from unauthorized modifications to the luminaire.
Caution: risk of electric shock! Specifications are subject to change without notice! If you have questions, please contact the manufacturer.

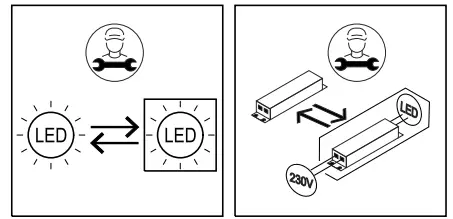

Info on (non-) replaceability

ZUMTOBEL-Perluce-Q620-LED-Luminaire-FIG-6

QR SCANZUMTOBEL-Perluce-Q620-LED-Luminaire-FIG-7
