070650 Suzuki SV650 Hugger
fitting Instructions
SFV 650 Suzuki
Kit Includes:
| 1X | C070650 | Moulding |
| 4X | CBOLM60008 | M6 X 16mm Bolts |
| 4X | CGROM60001 | Grommets |
| 4X | CSPAM60006 | Steel Spacers |
- Remove the OEM chainguard.
- Fit the Grommets & Steel Spacers to the 4 mounting points in the Pyramid Hugger.

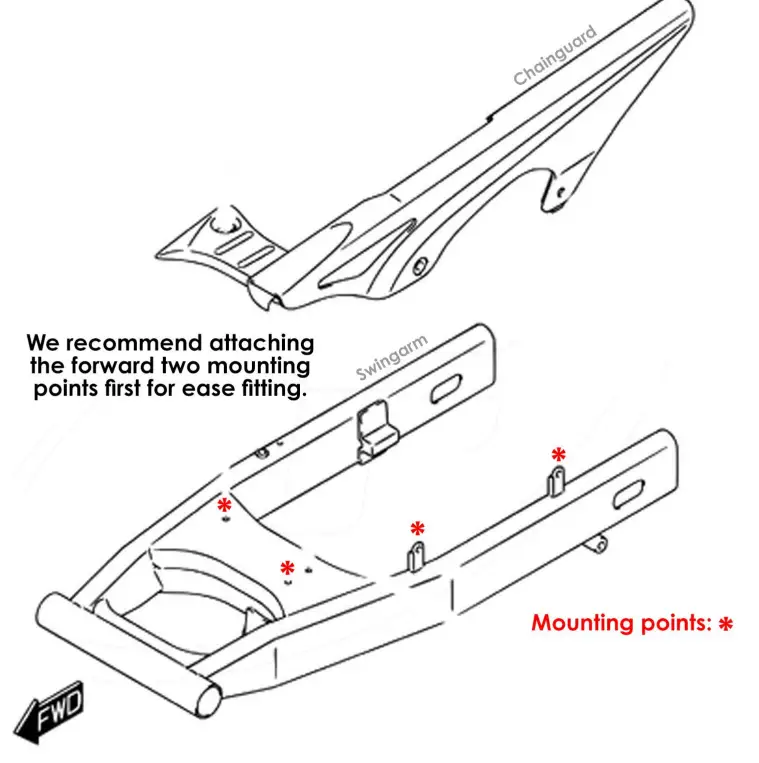

- Now fit the Pyramid Hugger to the 4 mounting points on the swingarm. See diagram below.
- Check fixings periodically.
