ZK Radio
UHF Desktop Card Issuer
User Guide
Version: 1.0
Date 2019.12.12
UD18RW-F UHF UHF Desktop Card Issuer
Change History
| Version | Date | Description |
| V1.0 | 201-12-12 | The first official release. |
FCC ID: 2AKARUD18RW-F
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
Installation Diagram
- Connect the UD18RW-F card issuer to the computer via a USB cable.

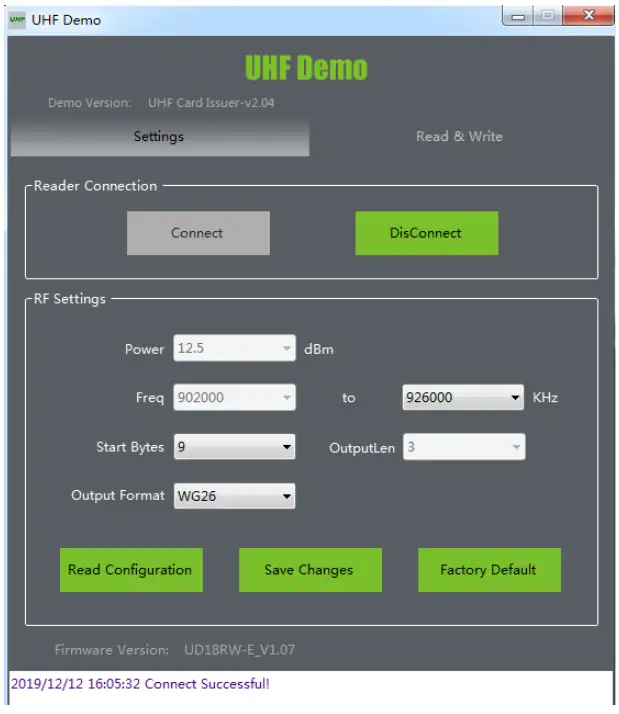

- Open DEMO software, Click Connect.
- Click Read Configuration to read the current configuration parameter information of the card issuer.
- In the RF Settings region, modify the dimensional root and start byte, and click Save Changes.
- Support factory reset function.
- The password of the new card is 00000000, users can set the password of the card by themselves.

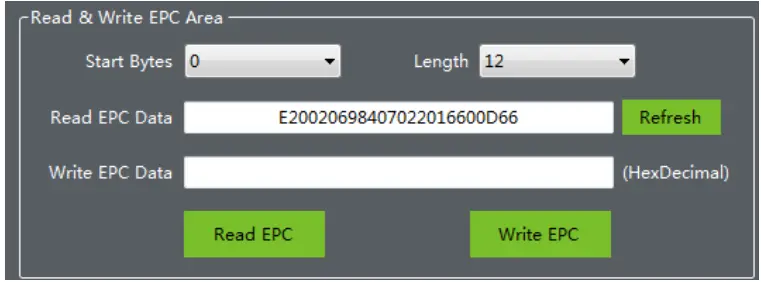

- Put the label in the header area of the card issuer, and read and write the EPC area.

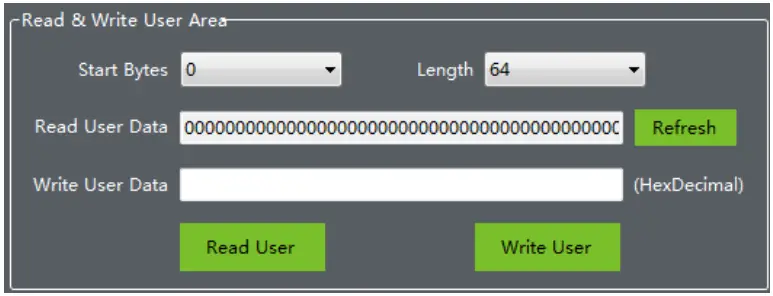

- Put the label in the reader area of the card reader, and read and write in the User area.

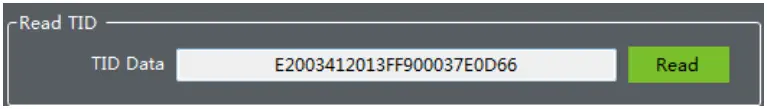

- Read the TID information on the label.
Product Description
Product Picture
Product Introduction
UD18RW-F is a UHF card issuer that supports the American standard frequency band. It reads and writes the EPC area and user area through DEMO software. It combines UHF non-contact RF circuits and various encoding and decoding algorithms. EPCglobal UHF Class 1Gen 2/ISO 18000-6C/Label/Card. Adopt an advanced plug-and-play USB communication interface without driver core technology, and realize the connection with PC and related equipment through the USB port.
Product Feature
- Card reader comes with a card reader antenna, working frequency is 902MHz-926MHz.
- Effective distance 0 ~ 8cm (different according to different working environments and different cards).
- The data receiving time within the effective distance is less than 90ms.
- USB interface power + 5V power supply, working current is less than 150mA.
- USB format data output.
Product Parameter
| Product Type | UD18RW-E |
| Product Standard | EPCglobal UHF Class 1Gen 2/ISO 18000-6C |
| Support Card | EPCglobal UHF Class 1Gen 2/ISO 18000-6c/915MHz card/ label |
| Frequency Band | American standard: 902MHz-926MHz |
| Power Supply | DC 5V (±5%) |
| Standby Current | less than 70 mA |
| Working Current | less than 150 mA |
| Read Card Distance | 0–8cm (Related to different work environments and different cards.) |
| Communication Interface | USB analog keyboard output |
| Operating Temperature | -10°C-4-50°C |
| Storage Temperature | -20°C-4-80°C |
| Product Size | 107mm*107mm*23mm ( Deviation±3mm) Cable length 1500MM |
