F500 UHF RFID Reader
User Manual
Product model: F500

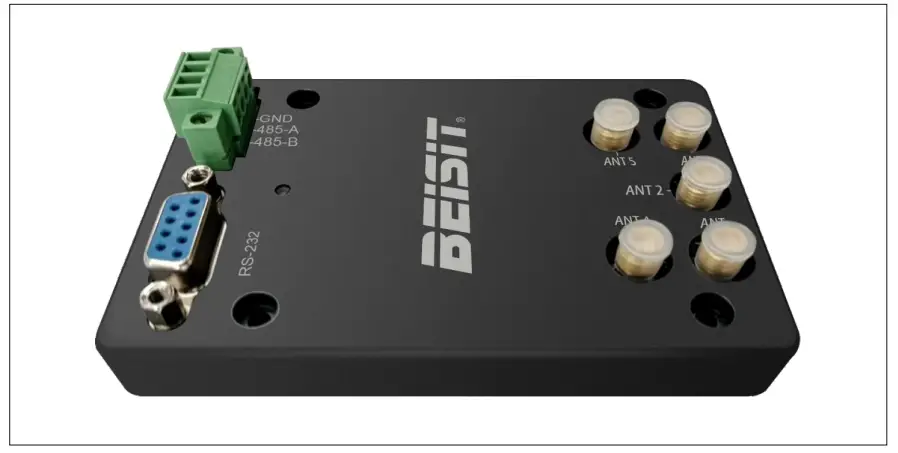

Product Picture
Technical characteristics
| Transponder Protocol | EPCglobal UHF Class 1 Gen 2/ISO 18000- 6C, ISO 18000-6B (Options) | Working Current | <500mA@24V |
| Standby Current | <20mA@24V | ||
| Working Frequency | 860-960MHz | Communication | RS-232, RS-485 |
| Working Region | FCC 902-928 MHz MI 865.6-867.6 MHz CN 920-925MHz Other Area can be set up | Interface | 4PIN Green(+RS-485) ,DB-9, 5 SMA RF Connector |
| RF POWER | 5-30dBm(1dB Step adjustable) | Operating Temperature | -25°C to 65°C |
| Receiving Sensitivity | <-78dBm | Storage Temperature | -40°C to 85°C |
| RF Accuracy | ±1 dB | Relative Humidity | 10% – 95% |
| Flatness Of RF Power | ±0.2dB | Coling Type | Air Cooling |
| Reading Distance | >3.5m (According to different tag) | Dimensions(W x H x D) | 102.0*67.0*17.5mm |
| Reading Speed | >400 PCS/second | Weight | <115g |
| LED Indicator | Support | Housing Material | Aluminum alloy |
| RSSI | Support | Approval | FCC, CE, RoHS |
| Ambient Temperature Monitoring | Support | Software Development Materials | SDK & API |
| Working Voltage | DC 9-24V |

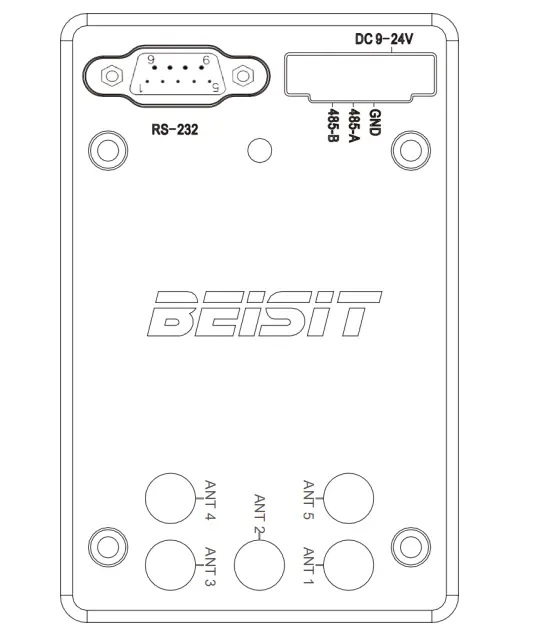

Antenna interface
| ANTI : | SMA | DC9-24 V. | DC Power, voltage range9-24V |
| ANT2: | SMA | GND: | Signal&Power reference GND |
| ANT3: | SMA | 485 A: | Corn RS-485A Signal |
| ANT4: | SMA | 485 B: | Corn RS-485B Signal |
| ANTS: | SMA | RS232 | Standard D9 serial port |
LED Indicator Description
Tricolour light：
Red Lamp — Power，Blue Lamp — On-Reading，Green Lamp — Flash Got Tag。
Announcements：
Do not open the software when the antenna is not connected, otherwise no load may damage the reader!

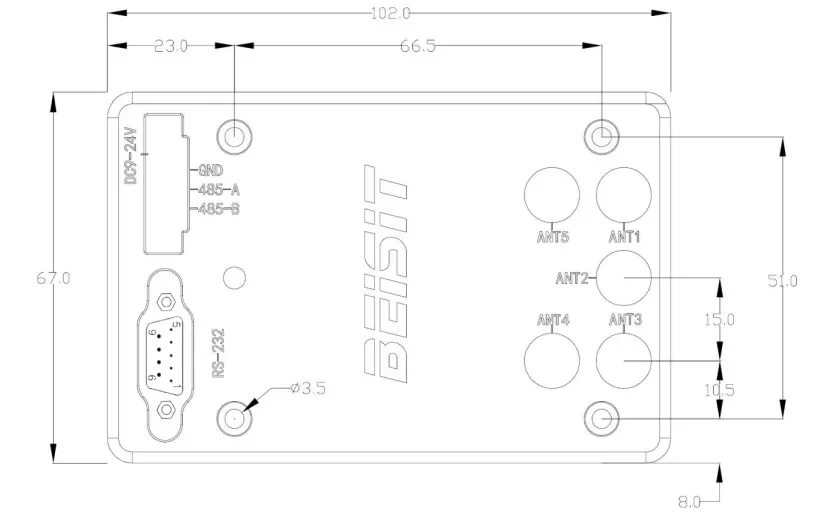

Dimensions
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
