STAHL M32-M20 Polyamide Reducer Installation Guide
M32-M20
- Ex e reducers made from glass fibre- reinforced polyamide
- Large selection of metric thread sizes
WebCode ACC1L
The metal Ex- d reducers enable the simple adaptation of thread sizes. There is a wide selection of different versions available. They have worldwide certification according to IECEx, ATEX und EAC/ TR CU.

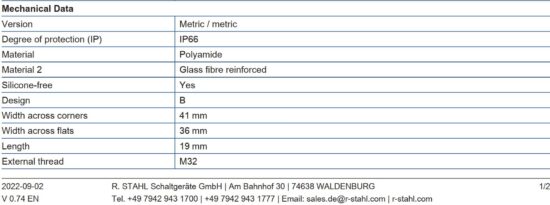

Technical Data

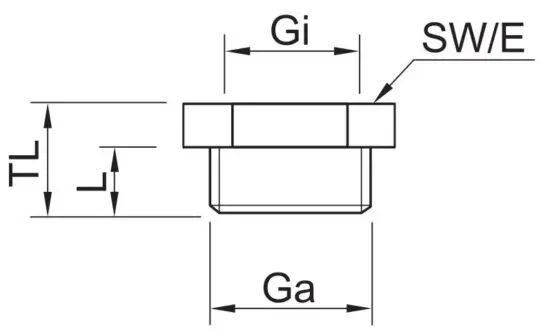

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
Design B
Ga = External thread
Gi = Internal thread
L = Thread length
SW = Width across flats
E = Width across corners
TL = Length
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
R. STAHL Schaltgeräte GmbH | Am Bahnhof 30 | 74638 WALDENBURG
Tel. +49 7942 943 1700 | +49 7942 943 1777 | Email: [email protected] | r-stahl.com
