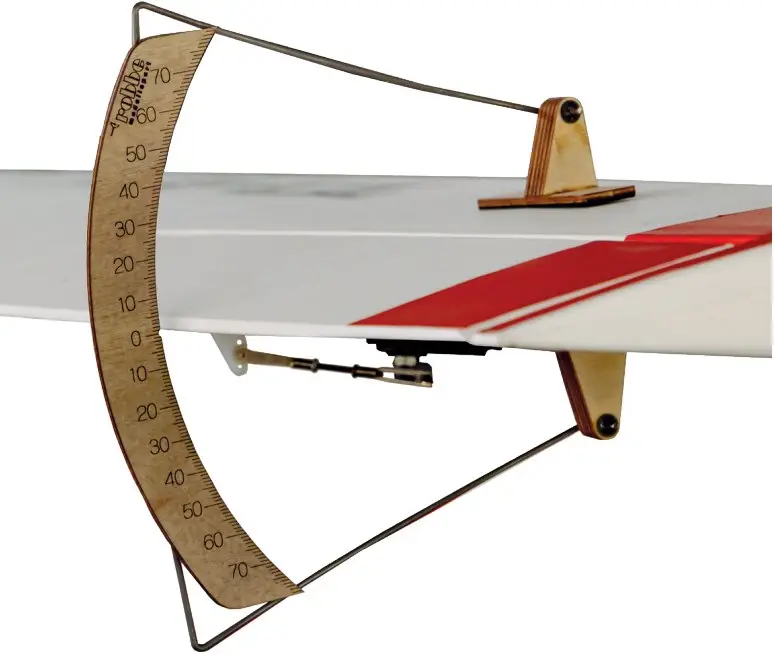

Robbe 50612 Deflection Gauge Instruction Manual

robbe 50612 Deflection Gauge Instruction Manual

Instruction

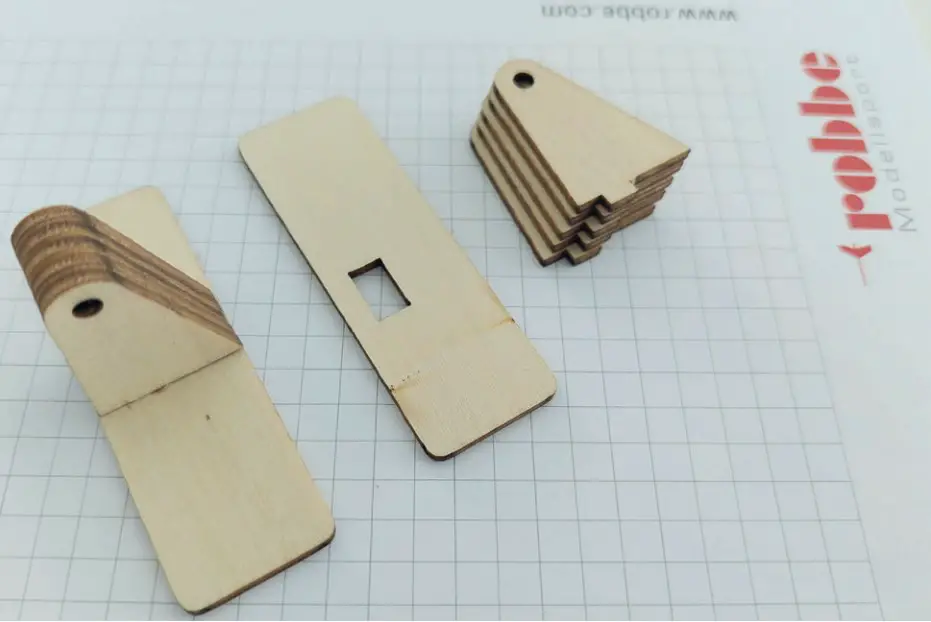

1. Glue 4 pieces of each of the wooden parts shown together (wood glue) and glue them in turn into the recess of the support plate.

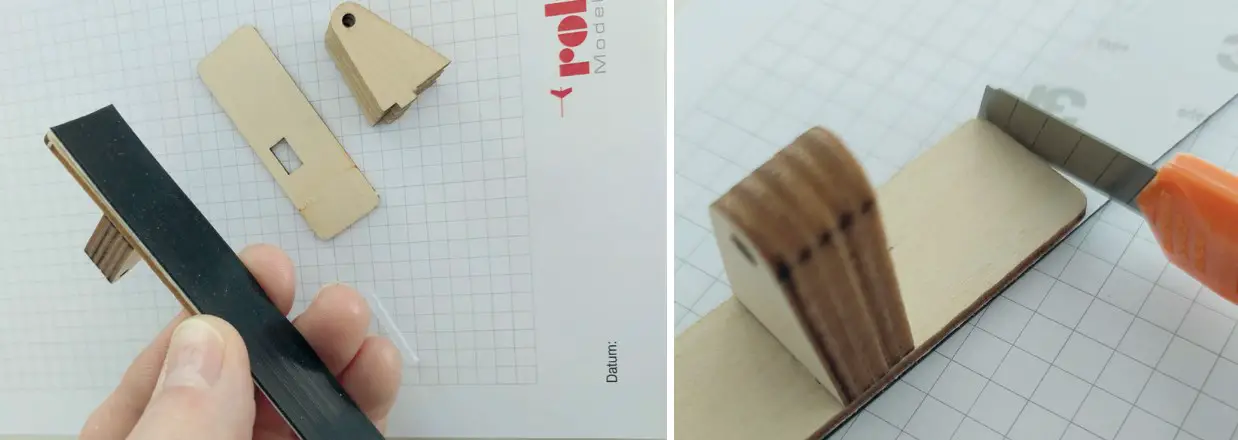

2. Stick on the self-adhesive rubber pad and cut to size:

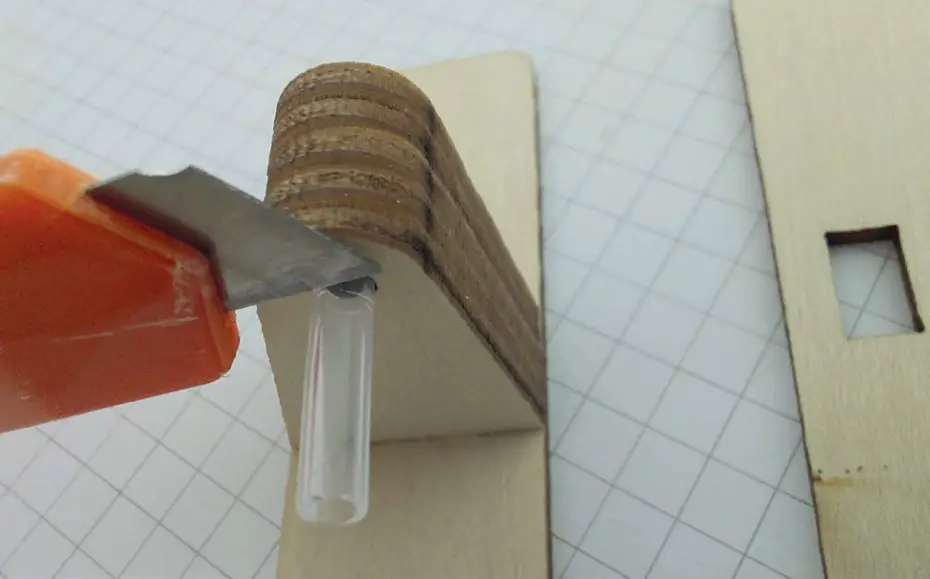

3. Stick on the self-adhesive rubber pad and cut to size:

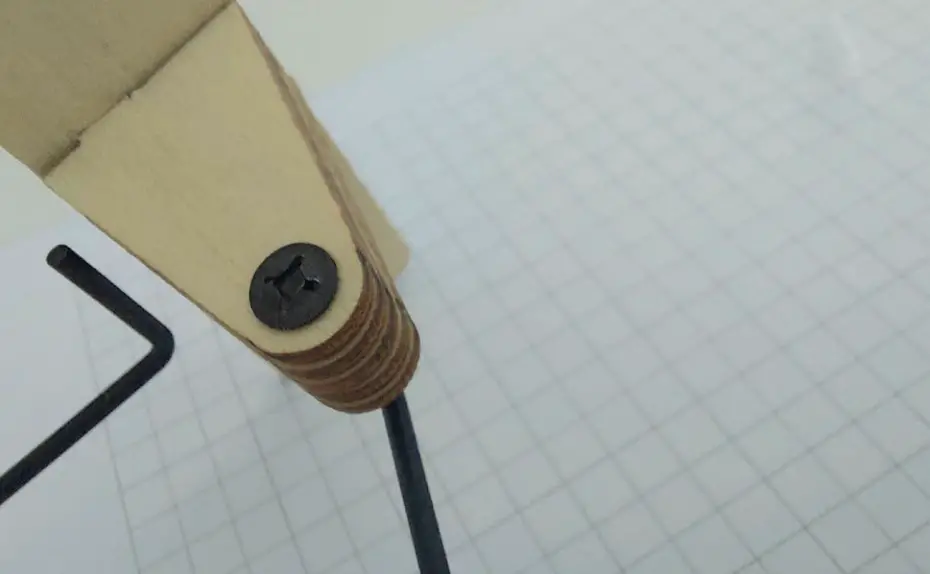

4. The pre-bent steel wire bracket is guided through the tube and fixed with a lock nut:

5. The scale for measuring the rudder deflections must first be glued together (wood glue):

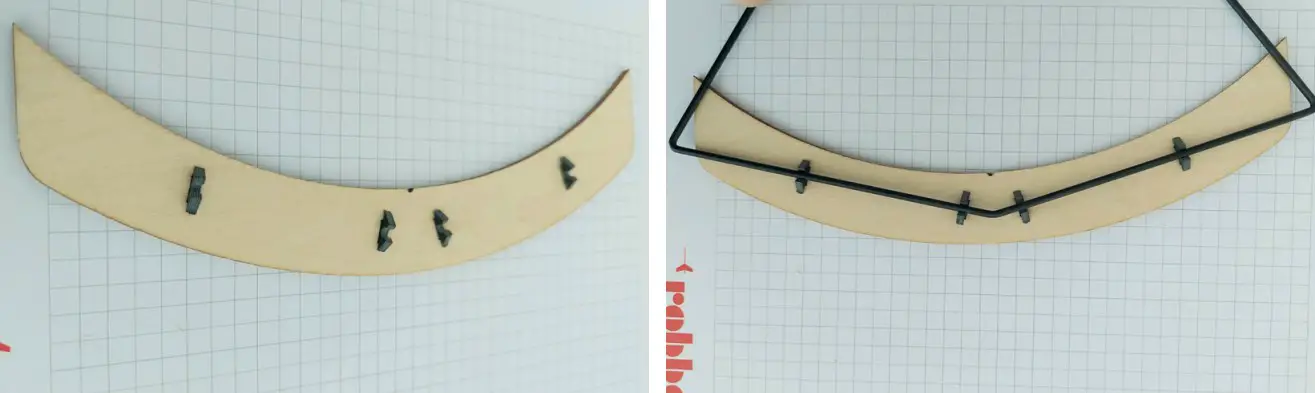

6. Now glue the plastic holders for the steel wire bracket to the back (super glue). Afterwards the bracket can be clipped into the plastic holders:
