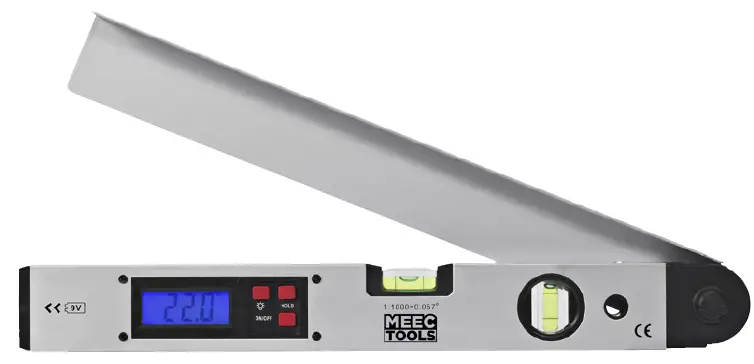

MEEC TOOLS 012665 Digital Angle Gauge
SYMBOLS
- Read the instructions.
- Approved in accordance with the relevant EU directives.
- Recycle as electrical waste.
TECHNICAL DATA
- Length 400 mm
- Measuring angle range 0-225°
- Increase/decrease angle 0,1 °
- Measuring precision ±0,5°
- Working temperature -10 till 50 ° C
DESCRIPTION
- Easily readable LCD display shows the exact angle at once
- Automatically shut off after five minutes to prolong the batteries’ life.
- Backlight design: keep its normal use on dark light.
- Data holding function: Help the users effectively note the angle.
- Low power Alarm.
- Mechanical lock: Keep the angle invariable in the process of line or measure the angle.
- Measuring range:0-225° . The value of the angle increases or decreases in the steps of 0.1 ° when open or close the angle.

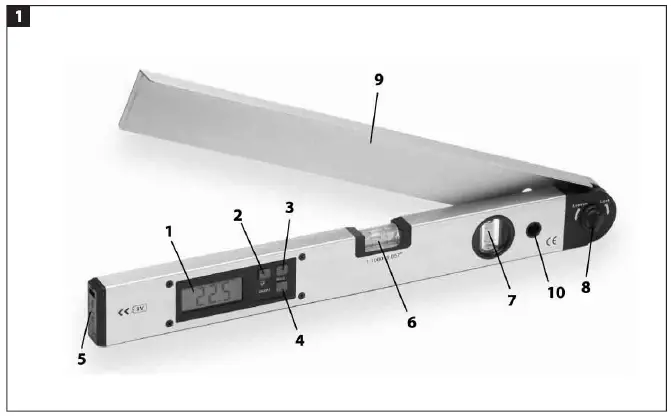

- LCD Display
- ON/OFF LED Lighe display
- HOLD button to lock angle
- ON/OFF Button
- 9 Volt battery (Included)
- Horizontal level
- Vertical level
- Lock knob
- Angle guide
- Hole to hang the digital angle level
USE
IMPORTANT
- Do not random move the screws and components.
- Please hand le your angle meter with care, use even strength to rotate the Rotate Arm, and do not use toa much strength.
- Don’t keep the backlight open fora long time.
- When the low power Alarm icon appears on the display, please change the batteries soon.
- DO not let it fall on the floar strongly.

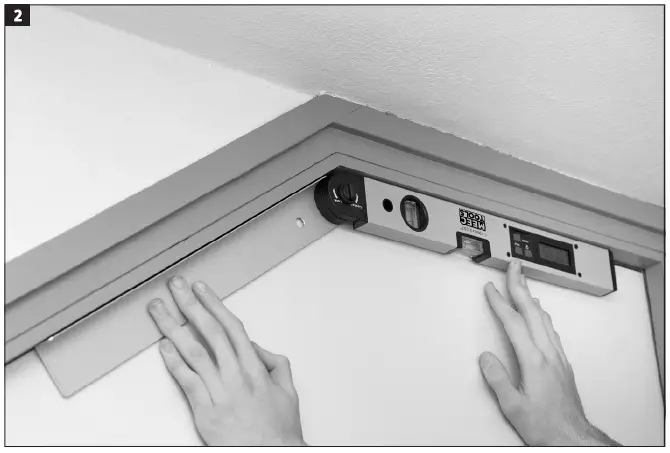

MEASURE ANGLES FUNCTION
- Switch on the angle level.
- Unfold the arm of the angle level ,the opening angle increases or decreases on LCD display in the steps of 0.1 ° .
- Adopt the comparative method to measure the angle or set the lineation angle.
- You can fasten the Lock Button to keep the angle invariable when drawing the angle line.
- Open the backlight when the beam is dark.
- Open the Holding switch, which can help users reliably note the measuring data.
SPIRIT LEVEL FUNCTION
Quickly measure the horizontal and vertical degree.
