ARMANOV 1649241798 Recoil Spring Gauge Instruction Manual

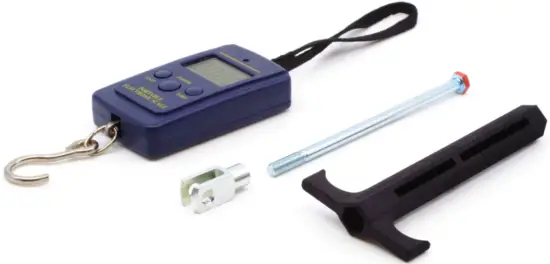

Package contents

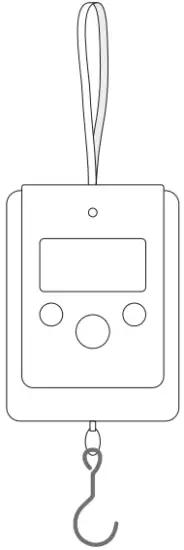

Digital scale

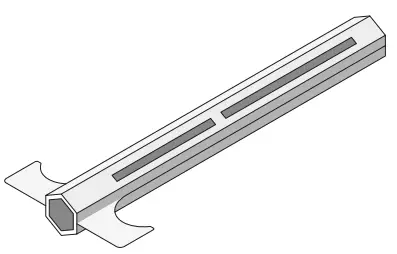

Gauge body

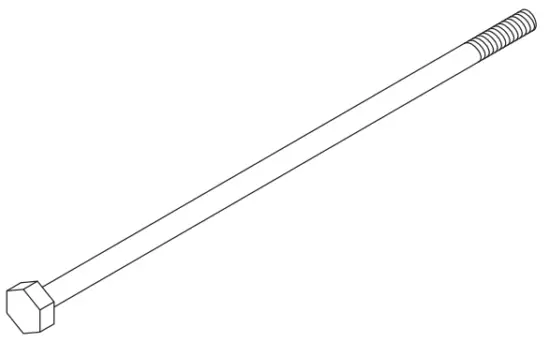

Spring guide
Nut

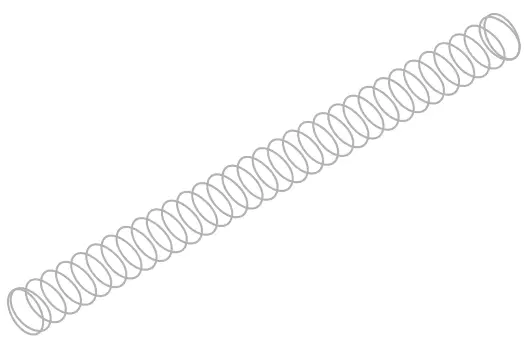

Recoil spring to be measured (not supplied)
Installation

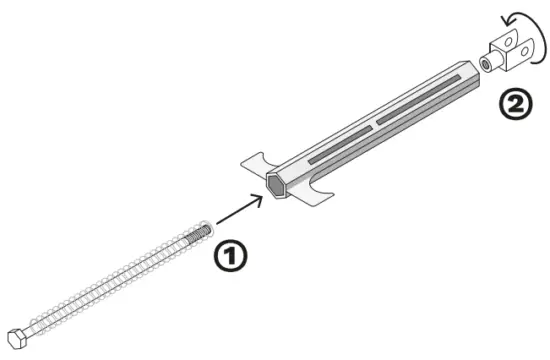

- Insert spring guide bolt through recoil spring of your pistol. Insert both into hexagonal hole in the bottom of gauge body and through round hole on top.
- Screw nut about one full turn.

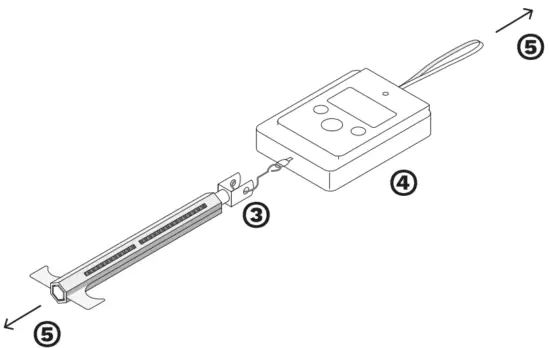

- Insert hook attached to digital scale through hole in the nut.
- Turn on the scale and set desired unit (usually lbs).
- Slowly pull handle of the gauge body and strap of the scale using both hands.

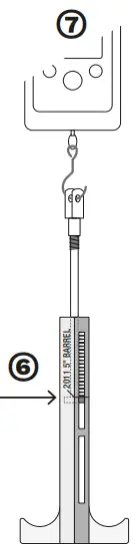

- Align upper side of the bolt head (end of spring) with the notch mark for the desired pistol.
- Read spring power on the scale’s display
Compatibility:
- CZ Shadow 2
- CZ 75 Tactical Sports
- CZ 75B, SP01
- Tanfoglio Stock 2, 3
- 1911 5” barrel
- 2011 5” barrel
- Beretta 92FS
