SHORT ASSEMBLY INSTRUCTIONS
„M“
NO. 50611
RUDDER DEFLECTION GAUGE
DESCRIPTION
Simple and useful tool for clean adjustment of rudder deflections on model aircraft. Secure hold on the wing or rudder by suction cups. Precise and fine resolution scale. Kit, can be assembled in just a few steps.
Scale: 0-40 mm

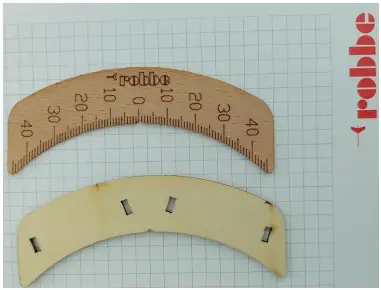

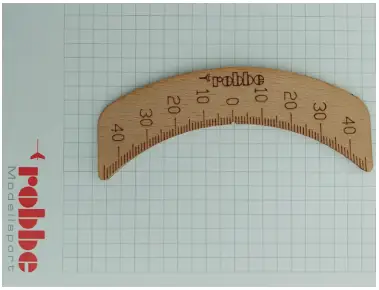

The scale for measuring the rudder deflections must first be glued together (wood glue):

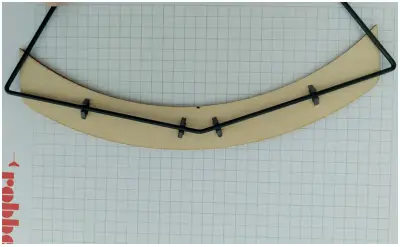

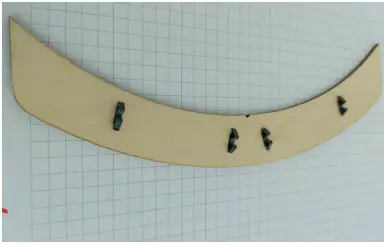

Now glue the plastic holders for the steel wire bracket to the back (super glue). Afterwards the bracket can be clipped into the plastic holders:

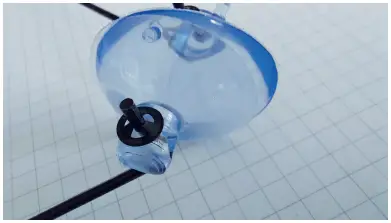

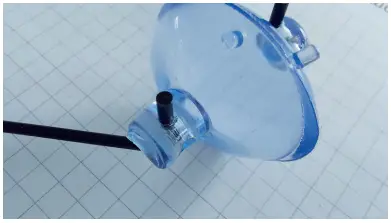

The „suction cup“ is guided through the steel wire bracket and fixed with a lock washer. Make sure to use the smaller of the holes in the suction cup! If necessary, widen them slightly with a screwdriver:

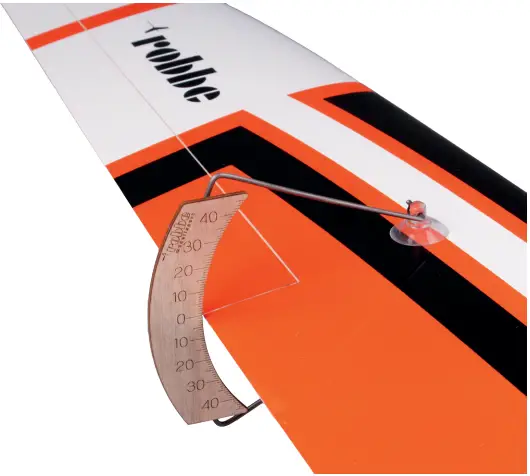

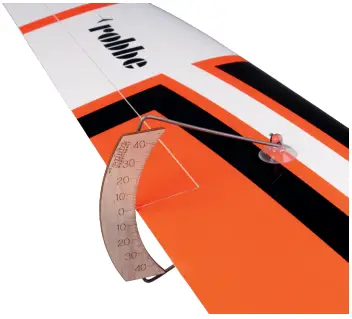

The finished rudder gauge in use:
