Hanyoung Nux Mas-025 Digital Indicator Instruction Manual

Hanyoung Nux MAS-025 Digital Indicator

Digital Indicator MAS Instruction Manual

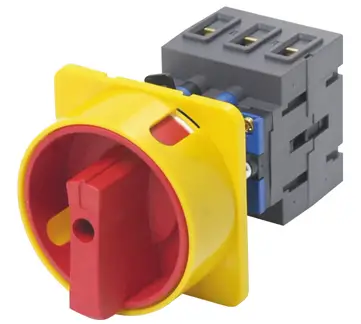

The Digital Indicator MAS is a product manufactured by Hanyoung Nux. The product has a rated capacity of 25A, 63A, or 125A and a rated insulation voltage Ui of 690V. It is equipped with a main switch and comes in two shape classifications – A for emergency use (Guard: YELLOW, HANDLE: RED) and B for normal use (Guard: WHITE,HANDLE: BLACK). The alerts declared in the safety manual are classified into Danger, Warning, and Caution according to their importance. The product dimensions are as follows:

• MAS-025: 66.3mm x 55.0mm x 38.8mm
• MAS-063: 88.0mm x 55.0mm x 48mm
• MAS-125: 88.0mm x 55.0mm x 68.4mm

Usage Instructions

Before using the Digital Indicator MAS, it is important to read the instruction manual carefully and follow the safety guidelines= provided. The product is suitable for use with motor loads according to UL/CSA standards.

To assemble the MAS-025, follow the assembly drawing provided in the manual. When connecting wires, refer to the wire size and tight torque specifications provided:

• MAS-025: Wire size (AWG No.) 14~7, Torque terminal screws – 0.8 Nm
• MAS-063: Wire size (AWG No.) 14~2, Torque terminal screws – 2.5 Nm
• MAS-125: Wire size (AWG No.) 8~1, Torque terminal screws – 2.5 Nm

It is important to use the product correctly and keep the instruction manual for future reference. If there are any issues or concerns, contact Hanyoung Nux for assistance.

Thank you for purchasing Hanyoung Nux products. Please read the instruction manual carefully before using this product, and use the product correctly. Also, please keep this instruction manual where you can see it any time.

Safety information

Please read the safety information carefully before use, and use the product correctly.
The alerts declared in the manual are classified into Danger, Warning and Caution according to their importance

DANGER
Indicates an imminently hazardous situation which, if not avoided,will result in death or serious injury

WARNING
Indicates a potentially hazardous situation which, if not avoided,could result in death or serious injury

CAUTION
Indicates a potentially hazardous situation which, if not avoided,may result in minor injury or property damage

• Use within the product rating.
• Be sure to turn off the power when installing or disassembling the product.

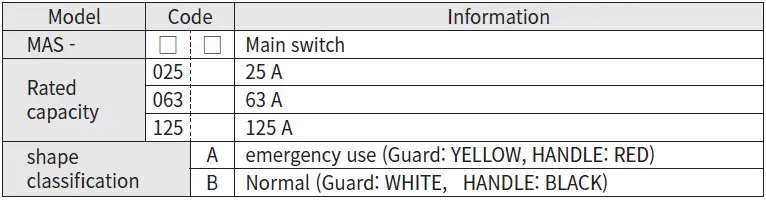

Suffix code

Specification

Wire size and TIGHT TORQUE

Dimensions and panel cutout

Dimensions

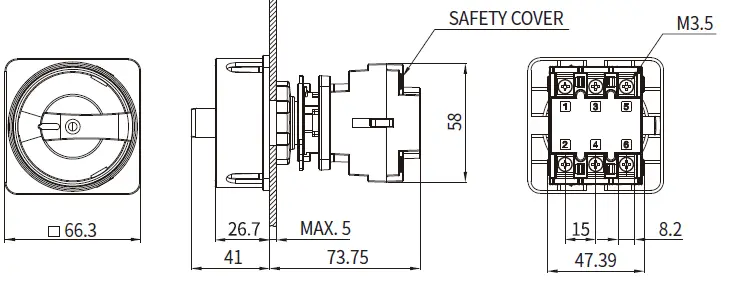

MAS-025

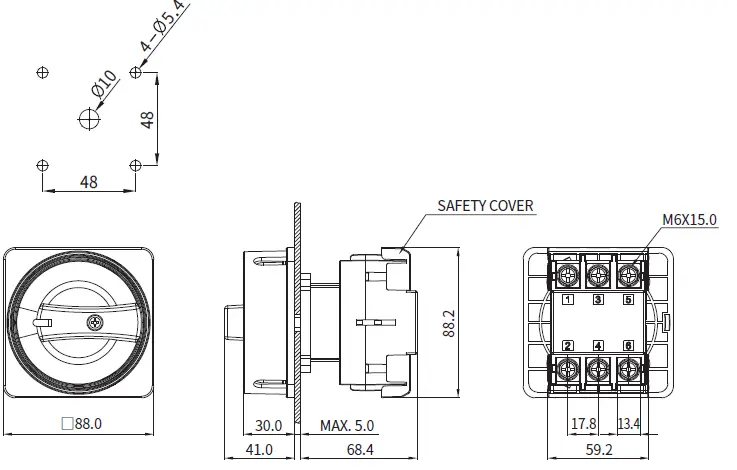

MAS-063

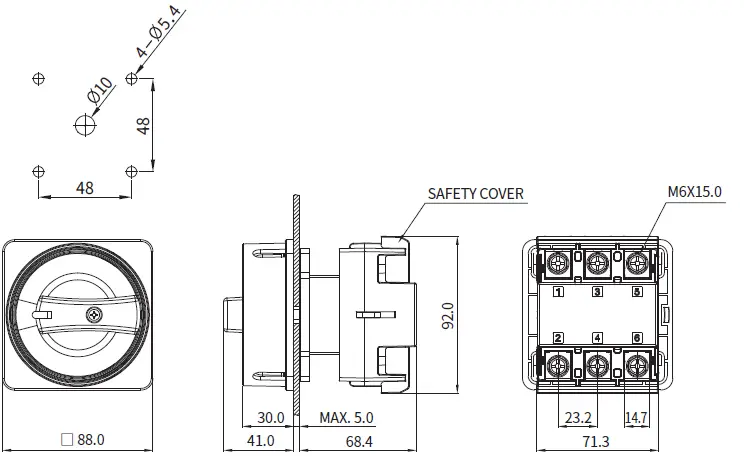

MAS-125

Connection diagrams

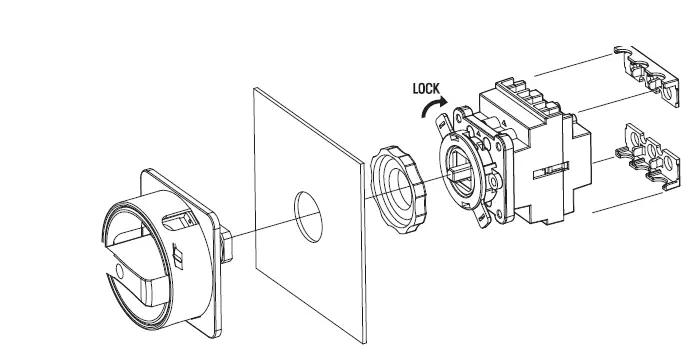

Assembly drawing

HANYOUNGNUX CO.,LTD
28, Gilpa-ro 71beon-gil, Michuhol-gu, Incheon, Korea TEL : +82-32-876-4697 http://www.hanyoungnux.com
