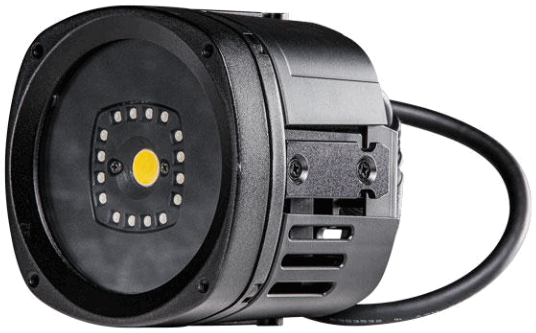

KNV DOT White Light LED
Installation Guide
GLP INSTALLATION
DESCRIPTION
The KNV system from GLP brings a whole new dynamic to entertainment lighting, groundbreaking in both design and functionality. KNV Line and KNV Dot work as independent units or combine seamlessly together. In combination they provide a whole new level of versatility and freedom in design, all in an outdoor rated housing, allowing them to be used on a multitude of events and occasions.
A truly multi-functional fixture, the KNV system is equally happy being used as a pixel mapped surface, strobe, blinder, washlight, or scenic element.
KEY FEATURES
LIGHT SOURCE
LED Power Pixel: 1 x White Light + 16 x RGB
MODULAR SYSTEM
for individual, creative designs
DETAILS
Further information, pictures, and technical details as well as downloads for KNV Dot at our website: www.glp.de
Direct-Link:
www.glp.de
KNV DOT
TECHNICAL DATA
| LIGHT SOURCE | |
| Power Pixel | 1 x 30 W White |
| Power Pixel Count | 16 x 0.25 W RGB |
| CONTROL | |
| Control Modes | 8 |
| Setting and addressing | back-lit Graphic Display, 4 Button Menu Navigation, DMX, RDM |
| Protocol | USITT DMX-512 ArtNET |
| Cooling type | temperature controlled, overheating protection |
| CONNECTORS (PSU) | |
| Signal | Neutrik PowerCon True1 In/Out, 5x Power-Data Cable ODS 6 PIN tail out |
| Power | Neutrik powerCON TRUE1 In/Out |
| DIMENSIONS & WEIGHT | |
| Length | 92 mm / 3.62 in |
| Width | 92 mm / 3.62 in |
| Height | 76 mm / 3.0 in |
| Weight | 0.7 kg / 1.54 lbs |
AVAILABLE ACCESSORIES
| PRODUCT | DESCRIPTION | ART. NO. |
| KNV PSU Rigging | IP 54 / PSU for up to 25x KNV Dot | 7780P |
| GLP Slide Connector | connects KNV Dot Modules (1:2); color: black | 767105 |
| KNV Dot Bracket | tiltable Bracket for mounting of KNV Dot | 778022 |
No responsibility taken for misprints, errors and technical changes. Technical drawings and product depictions are representative only and can vary from the original items. Technical data is subject to change without notice as a result of product modification. Subject to our general terms and conditions.
© GLP German Light Products GmbH
Industriestr. 2 | 76307 Karlsbad
Register court: Mannheim
Trade register (HRB): 361719
CEO: Udo Künzler |
Telephone: +49 (0)72 48 / 927 19 – 0
Fax: +49 (0)72 48 / 927 19 – 30
E-Mail: [email protected]
Internet: www.glp.de
2021/09/R03
