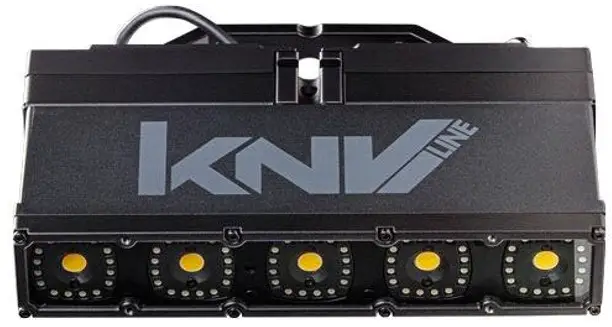

7780L KNV Line
Installation Guide
DESCRIPTION
The KNV system from GLP brings a whole new dynamic to entertainment lighting, groundbreaking in both design and functionality. KNV Line and KNV Dot work as independent units or combine seamlessly together. In combination they provide a whole new level of versatility and freedom in design, all in an outdoor rated housing, allowing them to be used on a multitude of events and occasions.
A truly multi-functional fixture, the KNV system is equally happy being used as a pixel mapped surface, strobe, blinder, washlight, or scenic element.
KEY FEATURES
 | LIGHT SOURCE LED Power Pixel: 1 x White Light + 16 x RGB |
 | MODULAR SYSTEM for individual, creative designs |
 | PIXEL PITCH continuous alignment between fixtures |
DETAILS
Further information, pictures, and technical data as well as downloads for KNV Line at our website: www.glp.de
TECHNICAL DATA
| LIGHT SOURCE | |
| Power Pixel | 1 x 30 W White 16 x 0.25 W RGB |
| Power Pixel Count | 5 |
| CONTROL | |
| Control Modes | 8 |
| Setting and addressing | back-lit Graphic Display, 4 Button Menu Navigation, DMX, RDM |
| Protocol | USITT DMX-512 ArtNET |
| Cooling type | Temperature controlled, overheating protection |
| CONNECTORS (PSU) | |
| Signal | Neutrik PowerCon True1 In/Out, 5x Power-Data Cable ODS 6 PIN tail out |
| Power | Neutrik powerCON TRUE1 In/Out |
| DIMENSIONS & WEIGHT | |
| Length | 50 mm / 1.97 in |
| Width | 250 mm / 9.9 in |
| Height | 165 mm / 6.5 in |
| Weight | 2 kg / 4.4 lbs |
AVAILABLE ACCESSORIES
| PRODUCT | DESCRIPTION | ART. NO. |
| KNV PSU Rigging | IP 54 / PSU for up to 5x KNV Line | 7780P |
| KNV Installation Bracket Line | fix Bracket for mounting of KNV Line | 778023 |
No responsibility taken for misprints, errors and technical changes. Technical drawings and product depictions are representative only and can vary from the original items. Technical data is subject to change without notice as a result of product modification. Subject to our general terms and conditions.
