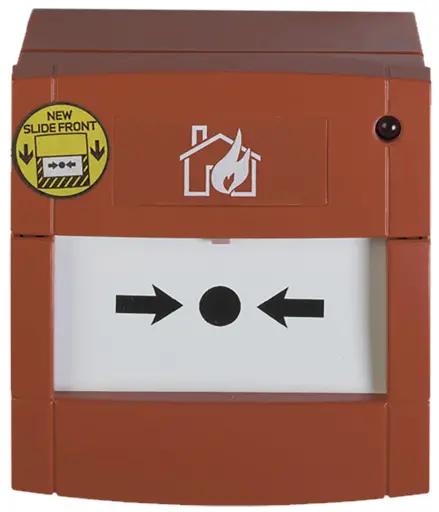

KAL455 Manual Call Point

Installation Sheet

Description

This document includes installation information for UTC Fire &Security KAL455 manual call points. These manual call pointsare designed for use in UTC Fire & Security Kilsen analogueaddressable fire alarm systems and include models for indoorand outdoor use.

Installation

Caution:

This product must be installed by qualified personneladhering to the CEN/TS 54-14 standard and any otherapplicable local authority laws.

Electrical connections

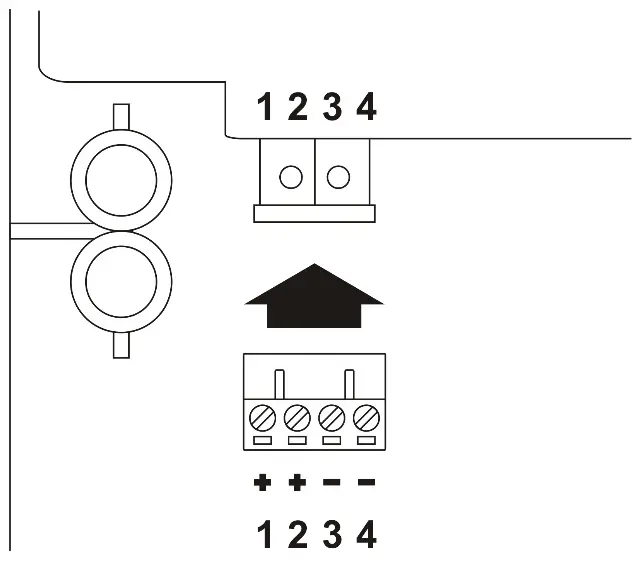

Connect to the KAL455 connection block (Figure 2) as follows:

Line in (positive)
Line out (positive)
Line in (negative)
Line out (negative)

Addressing

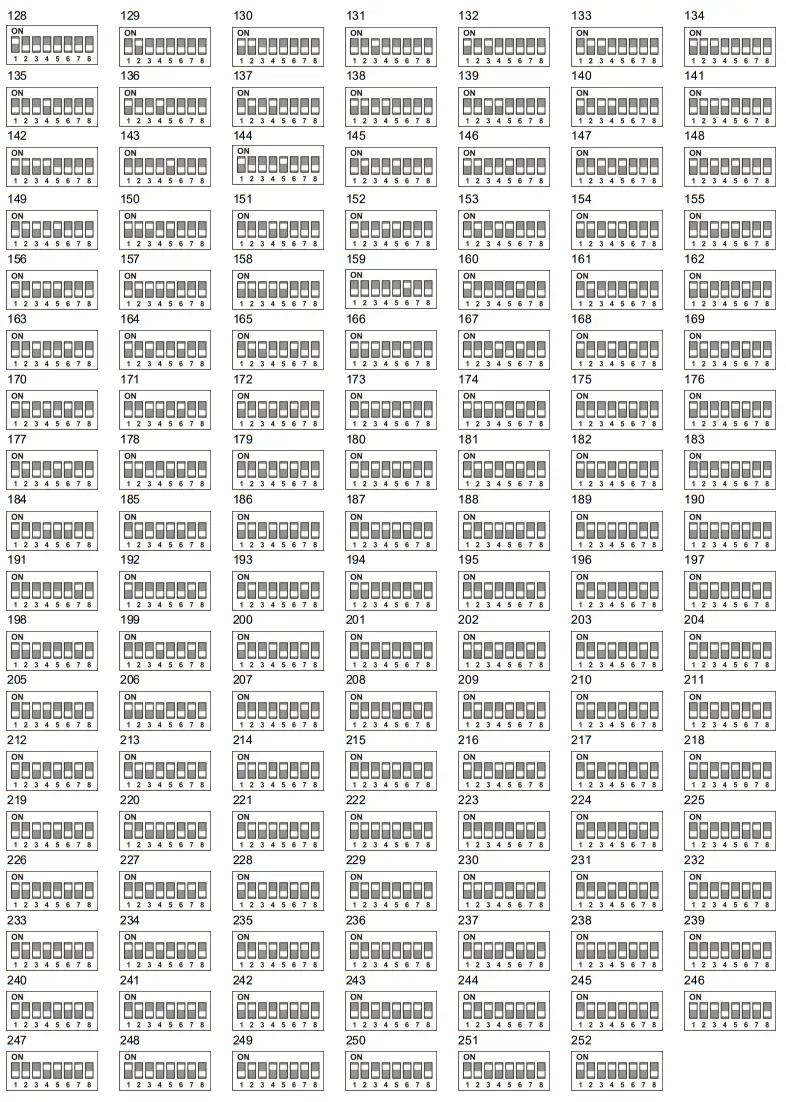

Use the DIP switch (Figure 1) to allocate a device addressfrom 128 to 252 (see page 9).

Maintenance

Basic maintenance consists of a yearly inspection. Do notmodify internal wiring or circuitry.

Specifications

Voltage	22 to 35 VDC
Current Standby Alarm	max. 250 tIA max. 2.5 mA
Cable size Minimum Maximum	0.8 mm2 2.5 mm2
IP rating KAL455, KAL455-18 KAL455E, KAL455E-18	IP24D IP67
Operating environment Operating temperature Storage temperature Relative humidity	-10°C to +70°C -20°C to +70°C 10% to 95% noncondensing
Dimensions (W x H x D) KAL455, KAL455-18 KAL455E, KAL455E-18	89 x 93 x 27.5 mm [1] 97.5 x 93 x 27.5 mm [1]
Weight	187 g

Weight 187 g [1] Excluding surface mount.

Regulatory information

Manufacturer	KAC Alarm Company Ltd. KAC House. Thornhill Road, North Moons Moat. Redditch. Worcestershire, 898 9ND, England Authorized EU manufacturing representative: UTC Fire & Security B.V. Kelvinstraat 7, 6003 DH Weert. Netherlands
Year of manufacture	The first two digits of the DATE MFG number (located on the product identification label) are the year of manufacture.
Certification
CPD certificates KAL455. KAL455-18 KAL455E. KAL455E-18	0832-CPD-0750 0832-CPD-0752
EN 54	EN 54-11 Type A
	2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment. or dispose of it at designated collection points. For more information see: www.recyclethis.info.
