KFi 106330 UTV Plow Track Extension
Plow Accessory
PART #106330
| Kit Components: | ||
| Item # Qty. Description | ||

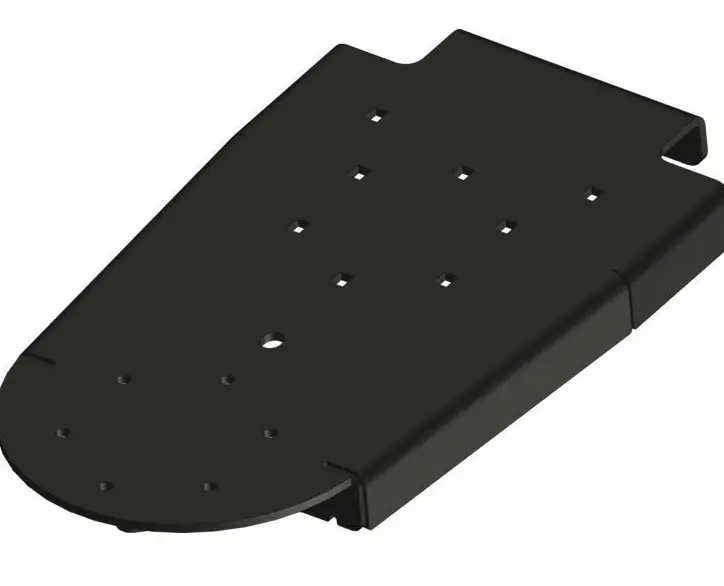

| 1 | 1 | Push Tube Track Extension |
| 2 | 1 | Hardware Kit (HK-393) |
| 2.1 | 8 | 3/8”-16 x 1.00 Carriage Bolt |
| 2.2 | 1 | 3/8”-16 x 1.50 Carriage Bolt (not used) |
| 2.3 | 8 | 3/8”-16 Hex Flange Nylock Nut |
INSTALLATION INSTRUCTIONS
Note: Make sure all hardware needed to complete this mount is in the package. Thoroughly read through and understand the instructions before installing.

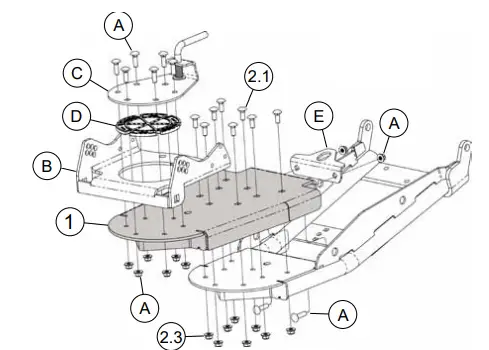

- Unbolt hardware (A) and remove cradle (B), Lift latch assembly (C), pivot bushing (D), cable hook bracket (E)
- Reinstall pivot bushing (D), lift latch assembly (C), cradle (B), and cable hook bracket (E) using hardware (A) removed in step 1 onto UTV Track Extension (1)

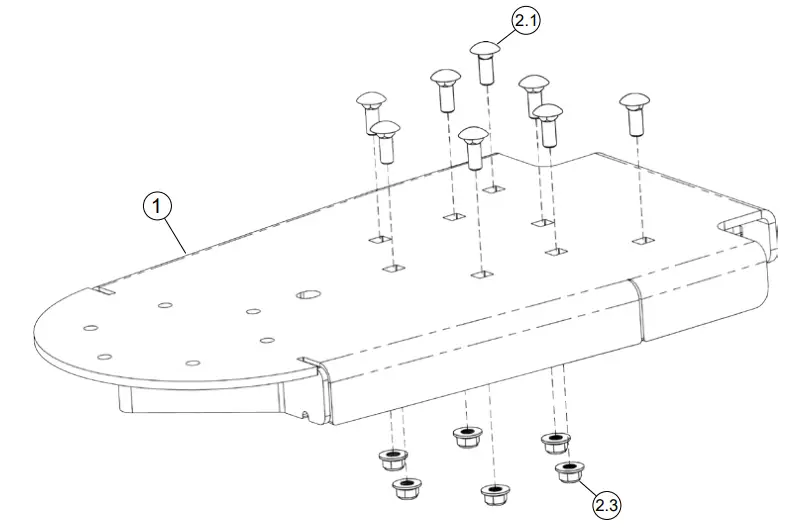

- Install UTV Track Extension (1) onto push tubes using bolts (2.1) and nuts (2.3)
- NOTE: If teh push tube does not have rear holes, drilling is required. See Drilling Note Below
- Tighten all hardware evenly
DRILLING NOTE

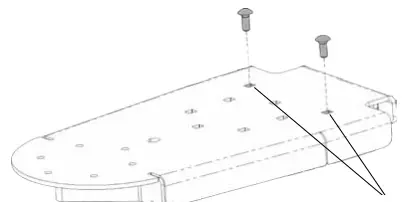

If push tube does not have rear holes, drilling is required. Bolt ITEM 1 to the push tube Using ITEM 1 as a template, drill 2 holes through the push tube using a 13/32” drill bit. Once holes are drilled, finish installing the remaining bolts and nuts (2.1 and 2.3)
