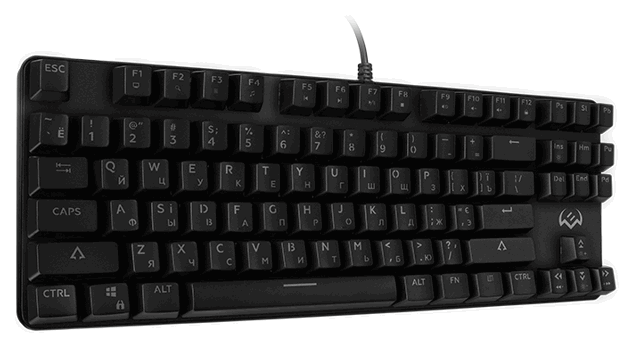

KB-G9150 Gaming Keyboard
User Manual
Gaming Keyboard
KB-G9150
www.sven.fi
KB-G9150 Gaming Keyboard
Congratulations on the purchase of Sven keyboard!
Please read this User’s Manual before using the unit and retain this User’s Manual in safe place for future reference.
COPYRIGHT
© SVEN PTE. LTD. Version 1.0 (21.09.2022).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur.
The information of this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damages which have arisen from the information contained in the given Manual.
UNPACKING
- Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.
- Shipping and transportation equipment is permitted only in the original container.
- Does not require special conditions for realization.
- Dispose of in accordance with regulations for the disposal of household and computer equipment.
- The date of manufacture of the product is indicated on the box.
APPLICATION
KB-G9150 keyboard is an input device. It is designed to enter information into the computer,
as well as control the operation of the computer.
PACKAGE CONTENTS
- Keyboard — 1 pc
- User Manual — 1 pc
- Warranty card — 1 pc
SPECIAL FEATURES
- 12 multimedia (Fn) keys.
- Backlight brightness adjustment.
- WIN key lock.
- Durable braided cable.
SYSTEM REQUIREMENTS
- ОС Windows.
- Free USB port.
INSTALLATION
- Connect the keyboard to an available USB port of your PC.
- Installation of keyboard is automatic after its connection to USB port of PC.
DESCRIPTION OF QUICK ACCESS KEYS FUNCTION
| Fn + F1 | Open “My computer” |
| Fn + F2 | Searching |
| Fn + F3 | Start calculator |
| Fn + F4 | Start media player |
| Fn + F5 | Play previous track |
| Fn + F6 | Play next track |
| Fn + F7 | Play/Pause |
| Fn + F8 | Stop playing |
| Fn + F9 | Mute/Unmute |
| Fn + F10 | Volume down |
| Fn + F11 | Volume up |
| Fn + F12 | Mute/Unmute |
| Fn + WIN | WIN key lock |
Fn + | Increase backlight brightness level |
Fn + | Decrease backlight brightness level |
| Fn + Ins | Change backlight mode |
| Fn + W | Switch WASD keys to arrows and back |
Note. Press the shortcut keys while holding the Fn key.
TROUBLESHOOTING
| Problem | Solution |
| Кeyboard is not working. | 1. Disconnect keyboard from PC and check connector pins for possible damage. If there is no external damage found and connector pins are OK, connect keyboard to PC again. 2. We recommend to address the nearest authorized service center. |
TECHNICAL SPECIFICATIONS
| Parameter, measurement unit | Value |
| Q-ty of keyboard keys, pcs | 87 |
| Q-ty of keyboard shortcut keys, pcs | 12 (Fn) |
| Keyboard layout | Eng. |
| OS compatibility | Windows |
| Interface | USB |
| Dimensions, mm | 580 × 136 × 33 (43) |
| Weight | 633 |
Notes. Technical specifications given in this table are supplemental information and can not give occasion to claims. Technical specifications are subject to change without notice due to improvement of SVEN production.
Model: KB-G9150
Importer: Tirolean OY, Office 102, Kotolahdentie 15, 48310 Kottak, Finland.
Manufacturer: SVEN PTE. LTD, 176 Joon Chiat
Road, № 02-02, Singapore, 427447.
Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kottak, Finland, 48310.
Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
