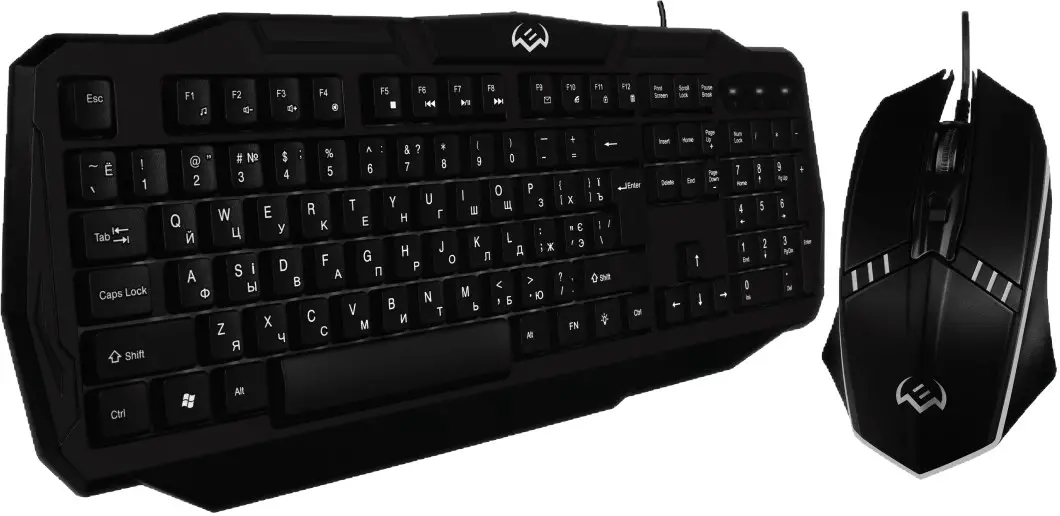

SVEN GS-9100 Keyboard and Mouse User Manual
Congratulations on the purchase of Sven keyboard + mouse combo!
Please read this User’s Manual before using the unit and retain this User’s Manual in a safe place for future reference.
COPYRIGHT
© SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
UNPACKING
- Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.
- Shipping and transportation equipment is permitted only in the original container.
- Does not require special conditions for realization.
- Dispose of in accordance with regulations for the disposal of household and computer equipment.
SPECIAL FEATURES
- 12 shortcut keys (Fn)
- Waterproof construction
- Keyboard brightness backlighting adjustment
- Keyboard breathing backlighting mode
- Mouse breathing backlighting
PACKAGE CONTENTS
- Keyboard — 1 pc
- Mouse — 1 pc
- User Manual — 1 pc
- Warranty card — 1 pc
SYSTEM REQUIREMENTS
- OS Windows.
- Free USB port.
INSTALLATION
- Connect the keyboard to an available USB port of your PC.
- Installation of the keyboard is automatic after its connection to a PC USB port.
DESCRIPTION OF SHORTCUT KEYS FUNCTIONS
- Fn + F1 – Start media player
- Fn + F2 – Volume down
- Fn + F3 – Volume up
- Fn + F4 – Mute/turn on sound volume
- Fn + F5 – Turn off media player
- Fn + F6 – Go to previous media track
- Fn + F7 – Play/Pause
- Fn + F8 – Go to next media track
- Fn + F9 – Start default e-mail program
- Fn + F10 – Оpen home web page
- Fn + F11 – Keylock function
- Fn + F12 – Open Calculator
- Fn + – Go to breathing mode
- Fn + Page Up – Brightness backlighting up
- Fn + Page Down – Brightness backlighting down
TROUBLESHOOTING
| Problem | Solution |
| The keyboard/mouse is not working. | 1. Disconnect the keyboard/mouse from the PC and check connector pins for possible damage. If there is no external damage found and the connector pins are OK, connect the keyboard/mouse to the PC again.2. Address your nearest authorized service center. |
If none of the above methods can solve the problem, please seek professional advice at your nearest service center. Never attempt to repair the product yourself.
TECHNICAL SPECIFICATIONS
| Parameter, measurement unit | Value |
| Q-ty of keyboard keys | 104 |
| Q-ty of keyboard shortcut keys | 12 (Fn) |
| Q-ty of mouse buttons | 3 + 1 (scroll wheel) |
| Keyboard layout | Eng/Rus/Ukr |
| OS compatibility | Windows |
| Interface | USB |
| Extrapolated mean life | more than 20,000,000 strokes |
| Mouse resolution, dpi | 800/1200/1600 |
| Keyboard dimensions (W × H × L), mm | 467 х 180 х 25 (37) |
| Mouse dimensions (W × H × L), mm | 130 х 73 х 40 |
| Weight keyboard, g | 515 |
| Weight mouse, g | 104 |
Notes:
- Technical specifications given in this table are supplemental information and cannot give occasion to claims.
- Technical specifications are subject to change without notice due to the improvement of SVEN production.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№ 02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
