SO + USB C Ovalis Combi Flush Pin Earth
Product Information
Ovalis Combi Flush Pin Earth SO + USB C
The Ovalis Combi Flush Pin Earth SO + USB C is a socket outlet and USB designed by Schneider Electric Industries SAS. The product is intended to allow users to connect and disconnect the plug of an electrical load and the source of a signal from a network. The product reference number is S320089 and the representative product mass is 75.3 g with dimensions of 87 x 87 x 42 mm.
End of Life Instructions
The product family of Ovalis Combi Flush Pin Earth SO + USB C falls under the scope of the European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). Therefore, the product must be disposed of according to the legislation of the country. This document provides information for end-of-life recyclers or treatment facilities to assure appropriate end-of-life treatment for the components and materials of the product.
Component / Material
| Number on drawing | Component / Material | Weight (in g) | Comment |
|---|---|---|---|
| 1 | To be dismantled | 50.23 | Product description |
| 2 | To be dismantled | 12.28 | Manufacturer identification |
| 3 | To be depolluted | 19.3 | Brand name |
The product has a recyclability potential of 40% based on the ECO’DEEE recyclability and recoverability calculation method (version V1, 20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME).
Product Usage Instructions
The Ovalis Combi Flush Pin Earth SO + USB C is designed to connect and disconnect the plug of an electrical load and the source of a signal from a network. To use the product, follow the steps below:
- Insert the plug of an electrical load into the socket outlet.
- Connect the source of a signal from a network to the USB port.
- To disconnect, remove the plug of the electrical load and disconnect the source of the signal from the network.
For any further assistance or information, please contact the Schneider Electric Industries SAS Country Customer Care Center at http://www.schneider-electric.com/contact or call at 35, rue Joseph Monier CS 30323 F- 92506 Rueil Malmaison Cedex RCS Nanterre 954 503 439 Capital social 896 313 776.
End of Life Instructions

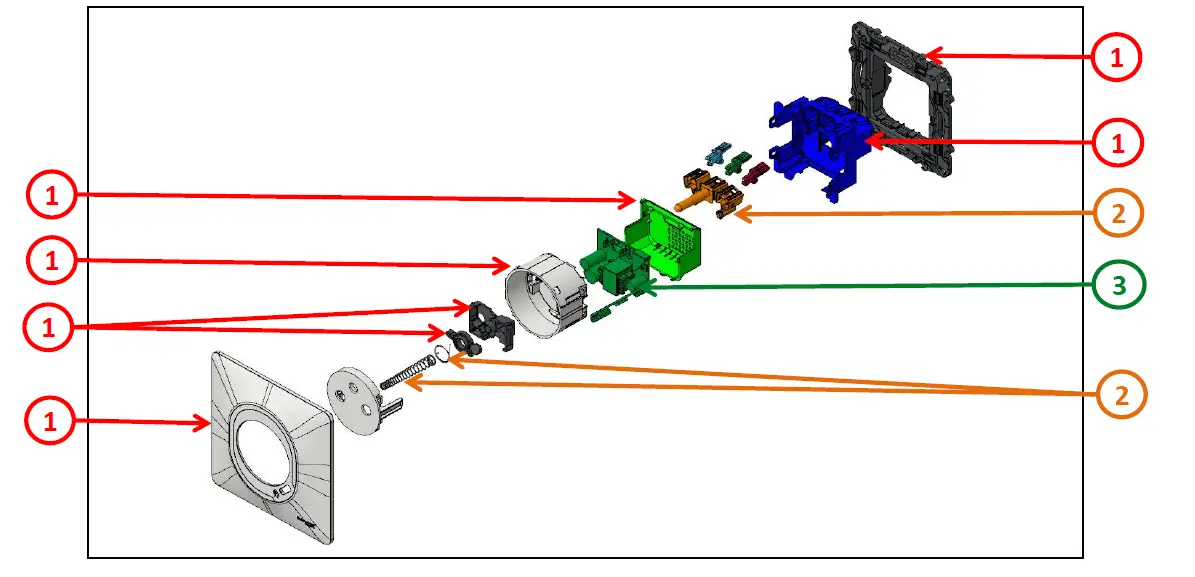

| Recommendation | Number on drawing | Component / Material | Weight (in g) | Comment |
| To be dismantled | 1 | Plastic parts | 50.23 | |
| To be dismantled | 2 | Metal parts | 12.28 | |
| To be depolluted | 3 | Electronic Board (Power) > 10cm² | 19.3 |
Product description
| Manufacturer identification | Schneider Electric Industries SAS |
| Brand name | Schneider Electric |
| Product function | The main function of Ovalis combi socket outlet and USB is to allow users to connect and disconnect the plug of an electrical load and the source of a signal from a network. |
| Product reference | S320089 |
| Total representative product mass | 75.3 g |
| Representative product dimensions | 87 x 87 x 42 |
| Date of information release | 02/2022 |
Additional information
|
Legal information | This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The product family must be disposed according to the legislation of the country. This document is intended for use by end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life treatment for the components and materials of the product. | |
| Recyclability potential | 40% | Based on “ECO’DEEE recyclability and recoverability calculation method” (version V1, 20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME). |
Schneider Electric Industries SAS
Country Customer Care Center
http://www.schneider-electric.com/contact 35, rue Joseph Monier
CS 30323
F- 92506 Rueil Malmaison Cedex
RCS Nanterre 954 503 439
Capital social 896 313 776 €
www.schneider-electric.com
ENVEOLI2202016_V1
