Skross Pro Light Usb World Universal Travel Adapter With Earth Connection User Manual

the original
PRO Light
PRO Light – World

TRAVEL ADAPTERS
World and country-specific (2- & 3-pole)

Check out SKROSS‘s state-of-the-art products for the modern traveler:

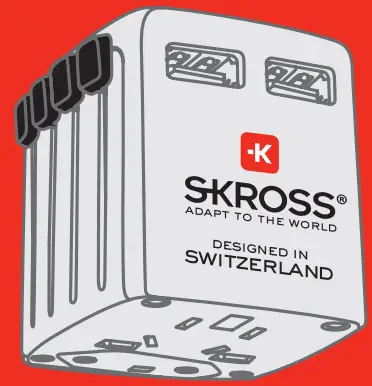

USB CHARGERS Charge all your USB devices	BATTERIES Energy boost on the go	CABLES Charge & sync cables

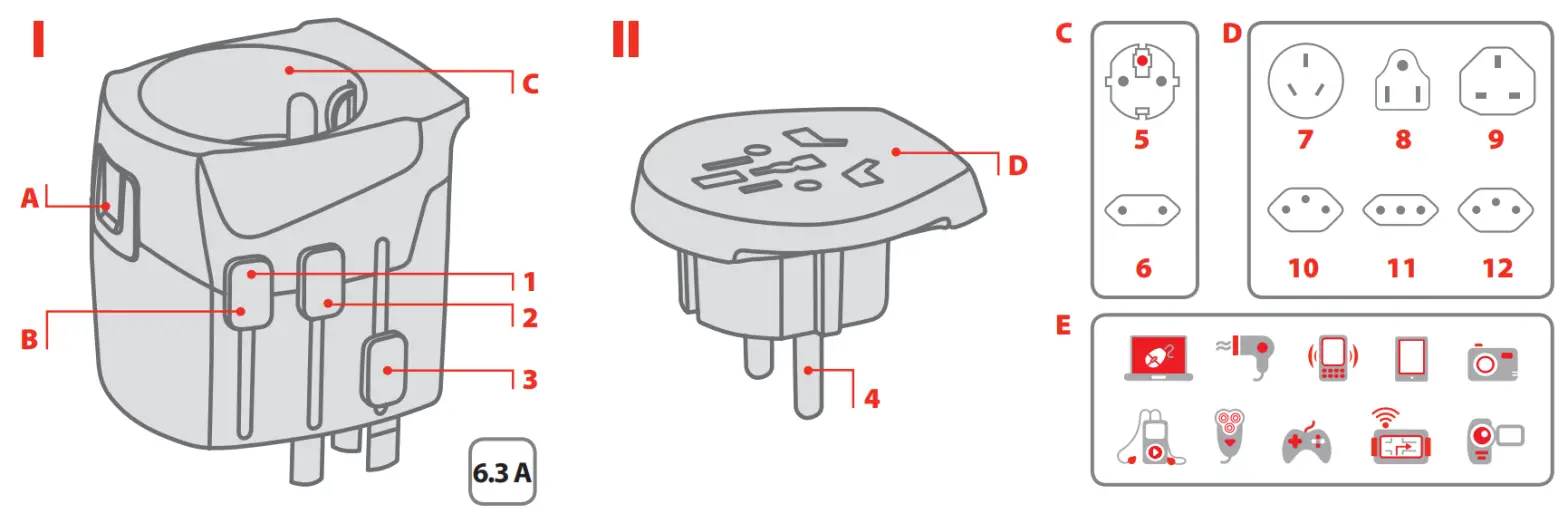

Product overview & functions

I World Adapter PRO Light
FOR TRAVELLERS FROM: Europe
(Schuko and 2-pole European plug)
IN: over 100 countries worldwide
II Country Adapter World to Europe
(only in the PRO Light – World version)
FOR TRAVELLERS FROM:
over 220 countries worldwide
IN: Europe (Schuko)
A Release button
B Country sliders/country-specific plugs

1. USA
2. UK
3. Australia, China
4. Europe (Schuko): only in the
   PRO Light – World version
   C Compatibility – input (PRO Light)
5. Europe (Schuko)
6. Euro (over 120 countries worldwide)
   D Compatibility – input (World to Europe)
7. Australia, China
8. USA, Japan
9. UK
10. Switzerland
11. Italy
12. Brazil

The PRO Light/PRO Light – World is suitable for most 2-pole and 3-pole (earthed) sockets protection classes I and II and is the safest way to ensure you can always use your portable devices when traveling (3-pole sockets). Suitable for the following devices, among others (E): laptops, hairdryers, smartphones, tablets, digital cameras, MP3 players, electric razors, games consoles, GPS devices, video cameras, etc.
Adapter: maximum 6.3 A;
100 V/630 W to 250 V/1575 W

Instructions

Before use, press the release button (A) and push the required slider forwards until it clicks into place. Connect the mains plug to the adapter (F). Connect the adapter to the mains (G) (image: PRO Light – World). After use, press the release button (A) and push the slider back into the starting position.
„Schuko”-standard
Using the Adapter PRO Light – World with a device with a Schuko plug: remove the World to Europe/ World to Europe USB attachment, connect the plug on your chosen device to the adapter (C) and connect the adapter to the mains. To connect devices from all over the world to  Schuko Europe, connect the World to Europeattachment directly to the socket (H).

Accessories

The Country Adapter World to Europe and matching USB charger are also available separately.

Safety precautions

• Keep the adapter out of the reach of children.
• The adapter is not a voltage converter.
• The input voltage for the device to be connected must match the voltage of the local main power supply.
• The adapter is only intended for short-term use and should be disconnected from the mains after use.
• Never use the adapter if the casing is damaged.
• Never expose the adapter to liquids or moisture.
• Using the adapter with higher-powered devices which exceed this product’s specifications (W = A × V) will cause irreparable damage to the adapter.
• Improper use of the adapter will invalidate the manufacturer’s warranty. No liability is accepted for damages.
• Keep these instructions.

Customer service
If you have any problems using the PRO Light series of SKROSS® World Adapters, please contact us at [email protected].
Warranty terms
Two-year warranty. The full warranty terms can be found at www.skross.com. All products and software mentioned in this document are registered brands belonging to the relevant brand owner. Subject to errors. © 2016 WorldConnect AG. All rights reserved. SKROSS® is a registered trademark of WorldConnect AG. All trademarks and registered
trademarks are the property of their respective owners. Subject to changes in technical specifications.

Exclusion of Liability

This product has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken for safety to be assured. WorldConnect  AG shall under no circumstances be liable for any loss and/or damage caused by: fire; earthquake; accidental damage; intentional misuse of the product; use of the product in improper conditions; loss and/or damage caused to the product whilst in the possession of a third party;  any damage or loss caused as a result to the owner’s failure and/or neglect to follow the instructions set out in the owner’s manual; any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment.

Furthermore, under no circumstances shall WorldConnect AG be liable for any consequential loss and/or damage including but not limited to the following: loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product. The information in the operation manual can be changed without prior notice. The manufacturer offers no promise or guarantee, either implicit or explicit, as to the accuracy or completeness of the operation manual.

This symbol (crossed-out bin wheelie symbol according to WEEE Directive 2002/96/EC and Battery Directive 2006/66/EC) indicates a separate collection of waste electrical and electronic equipment as well as batteries in the EU countries. Please do not throw the equipment respectively the batteries into the domestic refuse. Please use the return and collection systems available in your country for disposal.

Country compatibility list (PRO Light USB)
