Skross Muv Micro Usb Travel Adaptor User Manual

The original
MUV Micro
MUV Micro USB

Product overview & functions

Check out SKROSS‘s state-of-the-art products for the modern traveler:

TRAVEL ADAPTERS
World and country-specific (2- & 3-pole)

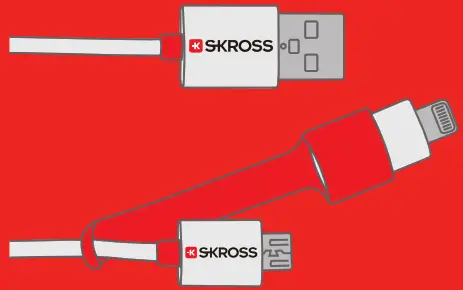

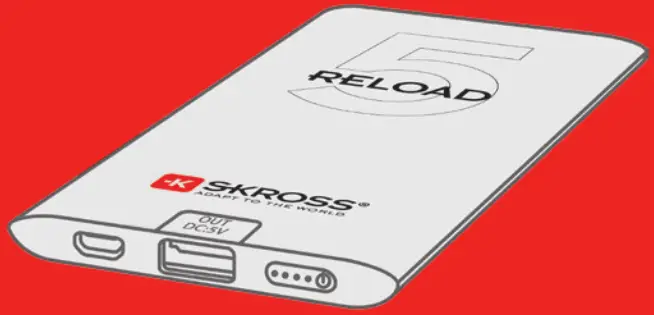

USB CHARGERS Charge all your USB devices	BATTERIES Energy boost on the go	CABLES Charge & sync cables

For more product information and a full view of our product range, please visit us at: www.skross.com or e-mail us at: [email protected]

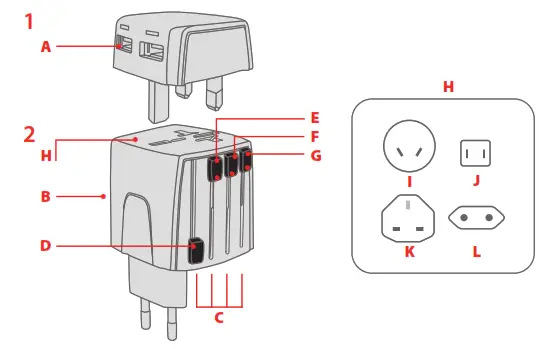

1. UK USB Charger (Only included in the World Adapter MUV Micro USB version)
2. World Adapter MUV Micro
   FOR TRAVELLERS FROM: all over the world (over 220 countries)
   TO: over 220 countries
   A Dual USB port
   B Release button
   C Country sliders/country-specific plugs
   D Euro
   E United Kingdom
   F Australia/China
   G USA/Japan
   H Compatibility (on the socket side)
   I Australia/China
   J USA/Japan
   K United Kingdom
   L Euro

The World Adapter MUV Micro from SKROSS® is the most compact 2-pole, unearthed travel adapter for travelers from all over the world. The patented country slider system guarantees simple and safe connection in over 220 countries on all continents; irrespective of the socket standard. The World Adapter MUV Micro USB is equipped additionally with a powerful dual USB charger.

It can be used with a range of devices, including
(3): tablets, smartphones, razors, MP3 players, digital cameras, game consoles, GPS devices, video cameras, etc.
Adapter: max. 2.5 A
100 V / 250 W – 250 V / 625 W
USB charger: 5 V / 2400 mA shared

Instructions

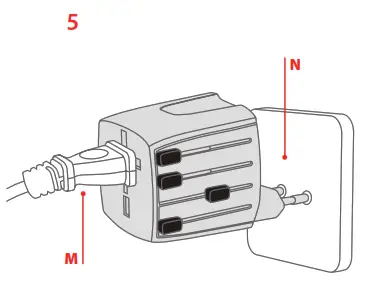

(4) Before use, press the release button (B) and move all country sliders on the side (C) into their starting positions. Move the country slider required (D-G) forwards until it clicks into place. (5) Connect the mains connector to the adapter (M), then connect the adapter to the mains (N). After use, return all the country sliders back to their original position (4).

USB Charger

(Only included in the World Adapter MUV Micro USB version)
(6) Attach the USB charger to the adapter. Plug the device-specific USB charging cable into the USB port.
(7) The USB charger can also be used without the adapter in countries that use the standard UK socket.

Safety precautions

• Keep the adapter out of the reach of children.
• The adapter is not a voltage converter.
• The input voltage for the device to be connected must match the voltage of the local main power supply.
• The adapter is only intended for short-term use and should be disconnected from the mains after use.
• Never use the adapter if the casing is damaged.
• Never expose the adapter to liquids or moisture.
• Using the adapter with higher-powered devices that exceed this product’s specifications (W = A × V) will cause the fuse to blow.
• When replacing the fuse, only use a 2.5 A fuse (ceramic or glass)
• Improper use of the adapter will invalidate the manufacturer’s warranty. No liability is accepted for damages.
• Keep these instructions.

Customer service
If you have any problems using the MUV series of SKROSS® World Adapters, please contact us at [email protected].
Warranty terms
Two-year warranty. The full warranty terms can be found at www.skross.com.
All products and software mentioned in this document are registered brands belonging to the relevant brand owner. Subject to errors.
© 2016 WorldConnect AG. All rights reserved.
SKROSS® is a registered trademark of WorldConnect AG. All trademarks and registered trademarks are the property of their respective owners. Subject to changes in technical
specifications.

Exclusion of Liability
This product has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken for safety to be assured. WorldConnect AG shall under no ircumstances be liable for any loss and/or damage caused by: fire; earthquake; accidental damage; intentional misuse of the product; use of the product in improper conditions; loss and/or damage caused to the product whilst in the possession of a third party; any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the owner’s manual; any loss or damage caused directly as a  result of misuse or malfunction of the product when used simultaneously with associated equipment. Furthermore, under no circumstances shall WorldConnect AG be liable for any consequential loss and/or damage including but not limited to the following: loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product. The information in the operation manual can be changed without prior notice. The manufacturer offers no promise or guarantee, either implicit or explicit, as to the accuracy or completeness of the operation manual.
This symbol (crossed-out bin wheelie symbol according to WEEE Directive 2002/96/EC and Battery Directive 2006/66/EC) indicates a separate collection of waste electrical and electronic equipment as well as batteries in the EU countries. Please do not throw the equipment respectively the batteries into the domestic refuse. Please use the return and collection systems available in your country for disposal.

Country compatibility list
