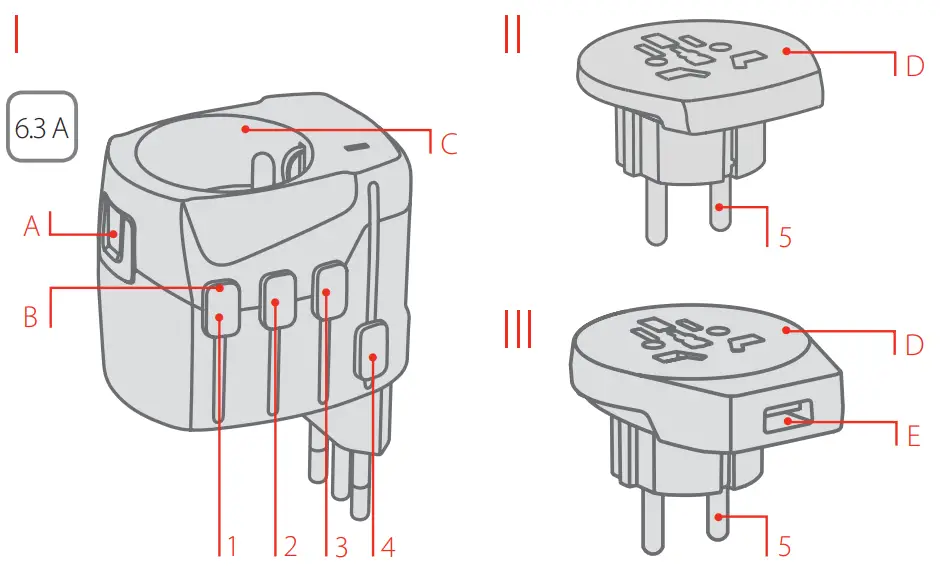

PRODUCT OVERVIEW & FUNCTIONS

I World Adapter PRO
FOR TRAVELLERS FROM: Europe
(Schuko and 2-pole European plug)
IN: over 120 countries
II Country Adapter World to Europe
(PRO – World version only)
FOR TRAVELLERS FROM:
over 220 countries worldwide
IN: Europe (Schuko)
III Country Adapter World to Europe USB
(PRO – World & USB version only)
FOR TRAVELLERS FROM:
over 220 countries worldwide
IN: Europe (Schuko)
INCLUDES: built-in USB port
A Release button
B Country sliders/country-specific plugs

1 USA
2 UK
3 Australia, China
4 Italy, Switzerland, Brazil

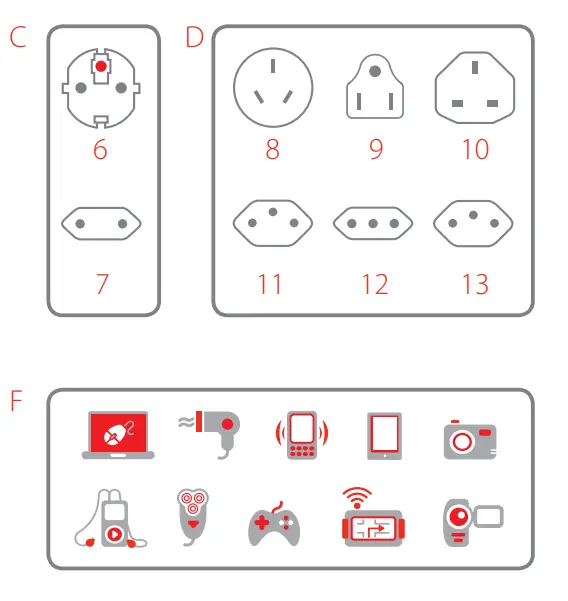

5 Europe (Schuko): PRO – World and PRO – World & USB versions only C Compatibility – input (PRO)
6 Europe (Schuko)

7 Euro (over 120 countries worldwide) D Compatibility – input (World to Europe & World to Europe USB)
8 Australia, China
9 USA, Japan
10 UK
11 Switzerland
12 Italy
13 Brazil

E USB port (World to Europe USB)

The PRO series is suitable for most 2-pole and 3-pole (earthed) sockets in protection classes I and II and is the safest way to connect your portable devices around the world (3-pole sockets). The attachment on the PRO – World & USB version also features a high-performance USB port (E). Suitable for the following devices, among others (F): laptops, hairdryers, smartphones, tablets, digital cameras, MP3 players, electric razors, games consoles, GPS devices, video cameras, etc. Adapter: maximum 6.3 A; 100 V / 630 W to 250 V / 1575 W USB port: 5 V / 2.4 A

INSTRUCTIONS

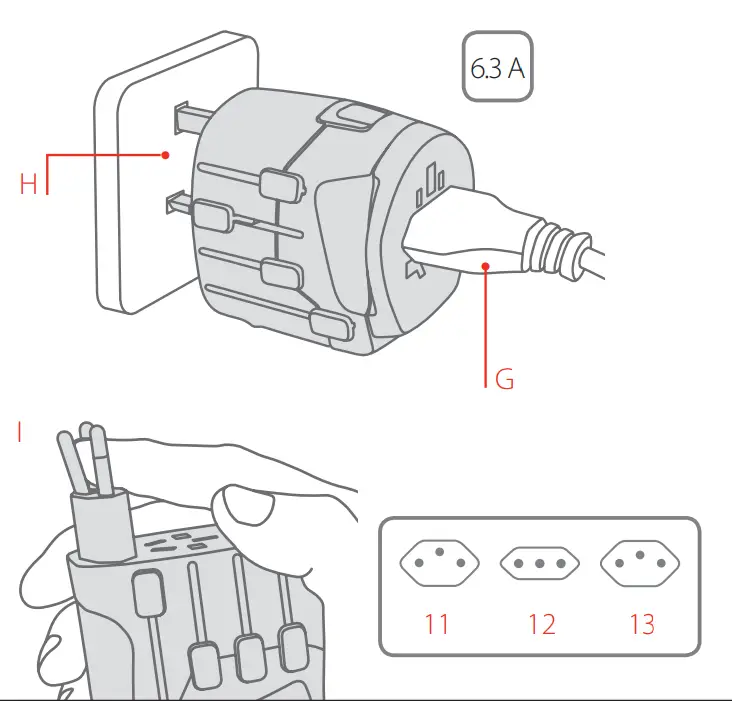

Press the release button (A) and push the required slider forwards until it clicks into place. connect the mains plug or charger to the adapter (G). Connect the adapter to the mains (H) (image: PRO – World). Configuring the plug for use in Switzerland, Italy or Brazil (I)
Push the slider (4) forwards until it clicks into place.
You can now position the middle pin:
11 Switzerland: push the middle pin all the way forwards.
12 Italy: line all three pins up in a row.
13 Brazil: push the middle pin forwards until it clicks once.
“Schuko“ standard

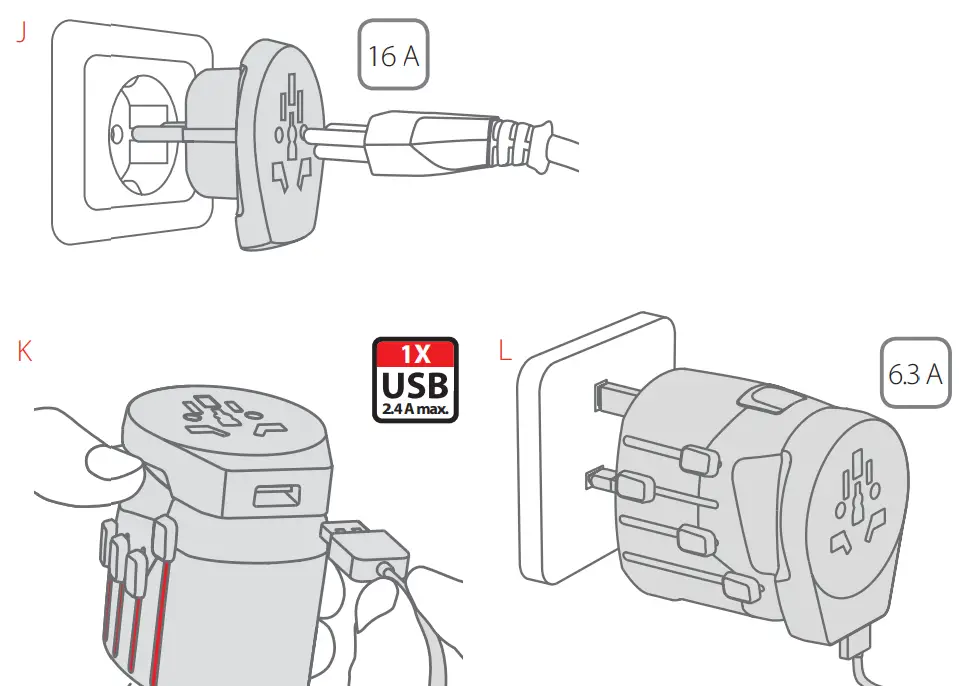

Using the PRO – World / PRO – World & USB adapter with a device with a Schuko plug: remove the World to Europe/World to Europe USB attachment, connect the plug on your chosen device to the adapter (C) and connect the adapter to the mains. To connect devices from all over the world to Schuko Europe, connect the World to Europe/World
to Europe USB attachment directly to the socket (J). (Image: World to Europe)

USB FUNCTION

(PRO – World & USB version only) Connect the World to Europe USB attachment to the PRO adapter. Connect the device-specific USB charger cable to the USB port (K) and connect the adapter to the mains (L). The World to Europe USB attachment can also be used without the PRO adapter in any country with the Schuko plug standard (over 100 countries worldwide).

ACCESSORIES

The Country Adapter World to Europe / World to Europe USB and matching USB charger are also available separately.

SAFETY PRECAUTIONS

Keep the adapter out of the reach of children.
The adapter is not a voltage converter.
The input voltage for the device to be connected must match the voltage of the local mains power supply.
The adapter is only intended for short-term use and should be disconnected from the mains after use.
Never use the adapter if the casing is damaged.
Never expose the adapter to liquids or moisture.
Using the adapter with higher-powered devices which exceed this product’s specifications (W = A × V) will cause the fuse to blow.
When replacing the fuse, only use a 6.3 A fuse (ceramic or glass)
Improper use of the adapter will invalidate the manufacturer’s warranty. No liability is accepted for damages.
Keep these instructions.

CUSTOMER SERVICE

If you have any problems using the PRO series of SKROSS® World Adapters, please contact us on [email protected].

WARRANTY TERMS

Two-year warranty. The full warranty terms can be found at www.skross.com.
All products and software mentioned in this document are registered brands belonging to the relevant brand owner. Subject to errors.
© 2018 WorldConnect AG. All rights reserved.
SKROSS® is a registered trademark of WorldConnect AG. All trademarks and registered trademarks are the property of their respective owners. Subject to changes in technical specifications.

Compatibility list (Output): PRO

A|
American Samoa
Antigua and Barbuda
Argentina
Aruba
Australia
B| Bahamas
Bahrain
Bangladesh*
Barbados
Belize
Bermuda
Bhutan*
Bonaire
Botswana*
Brazil
The British Virgin Islands
Brunei Darussalam
Cambodia*
Canada
Cayman Islands
Chile
China*
Chuuk
Colombia
C|Cook Islands
Costa Rica
Cuba
Curacao
Cyprus
D|
Dominica*
Dominican Republic
E/ Ecuador
El Salvador
Eritrea
Ethiopia
F| Falkland Islands
(Malvinas)
Fiji
G|Gambia
Ghana*
Gibraltar
Grenada
Guam
Guatemala
Guyana*
H|Haiti
Honduras
Hong Kong*
I|Iraq*
Ireland
Isle of Man
Italy
J|
Jamaica
Jordan
K|Kenya
Kiribati
Kosrae
Kuwait
L|Lao People’s Democratic Republic of
Lebanon*
Liberia
Libya*
Liechtenstein
M|Macau* Madagascar*
Malawi
Malaysia*

Maldives*
Malta
Mariana Islands
Marshall Island
Mauritius
Mexico
Montserrat
Myanmar*
Nauru
N|New Zealand
Nicaragua
Niger*
Nigeria*
Oman
O|Pakistan*
P| Palau
Panama
Papua New Guinea
Peru
Philippines (Rep.
of the)
Pohnpei
Puerto Rico
Qatar*
Q|Rwanda
R|Saba
S|Saint Kitts and Nevis*
Saint Lucia
Saint Vincent and the
Grenadines*
Samoa
San Marino
Saudi Arabia
Seychelles
Sierra Leone*
Singapore*
Sint Eustatius
Solomon Islands
Sri Lanka*
Switzerland
The Syrian Arab Republic
Taiwan
T|Tajikistan
Tanzania*
Thailand
Timor-Leste
Tonga
Trinidad and Tobago
Turkmenistan
Turks and Caicos
Islands
Tuvalu
Uganda
U|United Arab
Emirates*
United Kingdom
United States of
America
United States Virgin
Islands
Uruguay
Uzbekistan
Vanuatu
V|Venezuela
Yap
Y|
Yemen*
Zambia*
Z| Zimbabwe*

Compatibility list (Output): PRO – World, PRO – World & USB

A|Afghanistan
Albania
Algeria
American Samoa
Andorra
Antigua and Barbuda
Argentina
Armenia
Aruba
Australia
Austria
Azerbaijan
B|Bahamas
Bahrain
Bangladesh*
Barbados
Belarus
Belgium
Belize
Benin
Bermuda
Bhutan*
Bonaire
Bosnia and
Herzegovina
Botswana*
Brazil
British Virgin Islands
Brunei Darussalam
Bulgaria
Burkina Faso
Burundi
C|Cambodia*
Cameroon
Canada
Cape Verde
Cayman Islands
Central African
Republic
Chad*
Chile
China*
Chuuk
Colombia
Comoros
Congo
Congo (Democratic
Rep. of )*
Cook Islands
Costa Rica
Cote d’Ivoire
Croatia
Cuba
Curacao
Cyprus
Czech Republic
D| Denmark*
Djibouti
Dominica*
Dominican Republic
E|Ecuador
Egypt
El Salvador
Equatorial Guinea
Eritrea
Estonia
Ethiopia
F|Falkland Islands
(Malvinas)
Faroe Islands*
Fiji
Finland
France
French Guiana*
G|Gambia
Georgia
Germany
Ghana*
Gibraltar
Greece
Greenland*
Grenada
Guadeloupe*
Guam
Guatemala
Guinea*
Guyana*
H|Haiti
Honduras
Hong Kong*
Hungary
I| Iceland
Indonesia
Iran
Iraq*
Ireland
Isle of Man
Italy
J|Jamaica
Jordan
K|Kazakhstan
Kenya
Kiribati
Korea (Democratic
People’s Republic of )*
Korea (Republic of )
Kosrae
Kuwait
Kyrgyzstan
L|Lao People’s Demo-

cratic Republic of
Latvia
Lebanon*
Liberia
Libya*
Liechtenstein
Lithuania
Luxembourg
M|Macau*
Macedonia
Madagascar*
Malawi
Malaysia*
Maldives*
Mali
Malta
Mariana Islands
Marshall Island
Martinique*
Mauritius
Mexico
Moldova
Monaco*
Mongolia
Montenegro
Montserrat
Morocco
Mozambique*
Myanmar*
Nauru
N|Netherlands
New Caledonia
New Zealand
Nicaragua
Niger*
Nigeria*
Norway
Oman
O|Pakistan*
P|Palau
Panama
Papua New Guinea
Peru
Philippines (Rep.
of the)
Pohnpei
Poland
Portugal
Puerto Rico
Qatar*
Q|Reunion
R|Romania
Russia
Rwanda
Saba
S| Saint Kitts and Nevis*
Saint Lucia
Saint Martin
Saint Vincent and theGrenadines*
Samoa
San Marino
Sao Tome and
Principe
Saudi Arabia
Senegal*
Serbia
Seychelles
Sierra Leone*
Singapore*
Sint Eustatius
Slovakia
Slovenia
Solomon Islands
Spain
Sri Lanka*
Suriname
Sweden
Switzerland
Syrian Arab Republic
Taiwan
T| Tajikistan
Tanzania*
Thailand
Timor-Leste
Tonga
Trinidad and Tobago
Tunisia
Turkey
Turkmenistan
Turks and Caicos
Islands
Tuvalu
Uganda
Ukraine
U|United Arab Emirates*
United Kingdom
The United States of
America
United States Virgin
Islands
Uruguay
Uzbekistan
Vanuatu
V| Venezuela
Vietnam*
Yap
Y|Yemen*
Zambia*
Z| Zimbabwe*

Exclusion of Liability
This product has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken for safety to be assured. WorldConnect G shall under no circumstances be liable for any loss and/or damage caused by: fire; earthquake; accidental damage; intentional misuse of the product; use of the product in improper conditions; loss and/or damage caused to the product whilst in the possession of a third-party; any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the owner’s manual; any loss or damage caused directly as a result of misuse or malfunction of the product hen used simultaneously with associated equipment. Furthermore, under no circumstances shall WorldConnect AG be liable for any consequential loss and/or damage including ut not limited to the following: loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product. The information in the operation manual can be changed without prior notice. The manufacturer offers no promise or guarantee, either implicit or explicit, as to the accuracy or completeness of the operation manual.

Danger This symbol (crossed-out bin wheelie symbol according to WEEE Directive 2002/96/ EC and Battery Directive 2006/66/EC) indicates a separate collection of waste
electrical and electronic equipment as well as batteries in the EU countries. Please do not throw the equipment respectively the batteries into the domestic refuse. Please use the eturn and collection systems available in your country for disposal.
