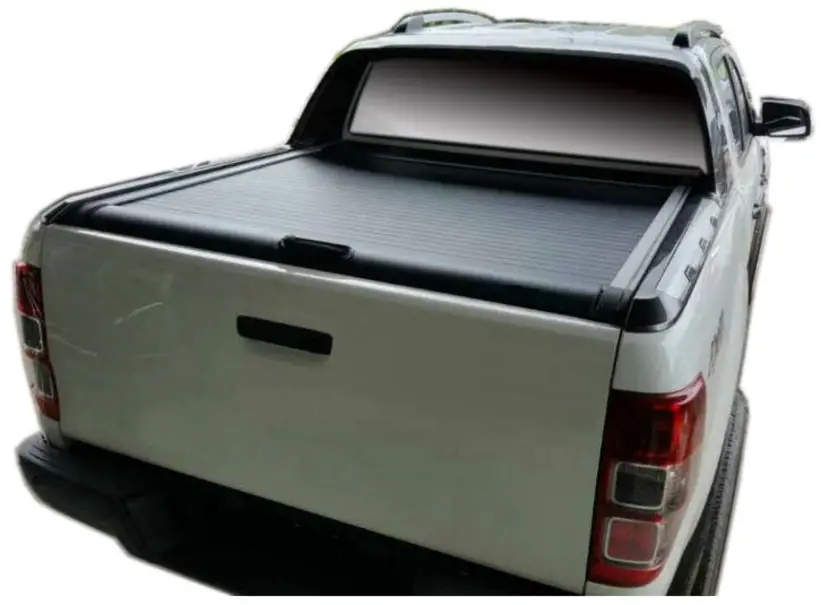

Bodyline Ford Ranger Raptor Roller Cover Shutter Instruction Manual

Roller Shutter
Installation manual

Pi RANGER, IIT-50, COLORADO, 1)-MAX, N11300, IIII, UX REVD, AMAROK

Before installation

Please read the instruction completely for easy installation, which will also help you to avoid Al scratches or other potential damages to your appealing car.
Please periodically check and retighten all the hardware and clean the investment for a dill’s fit w -SIC refresh look.
The figures here are for reference only and may have differences from the actual product you received, however, they share the same assembly way.

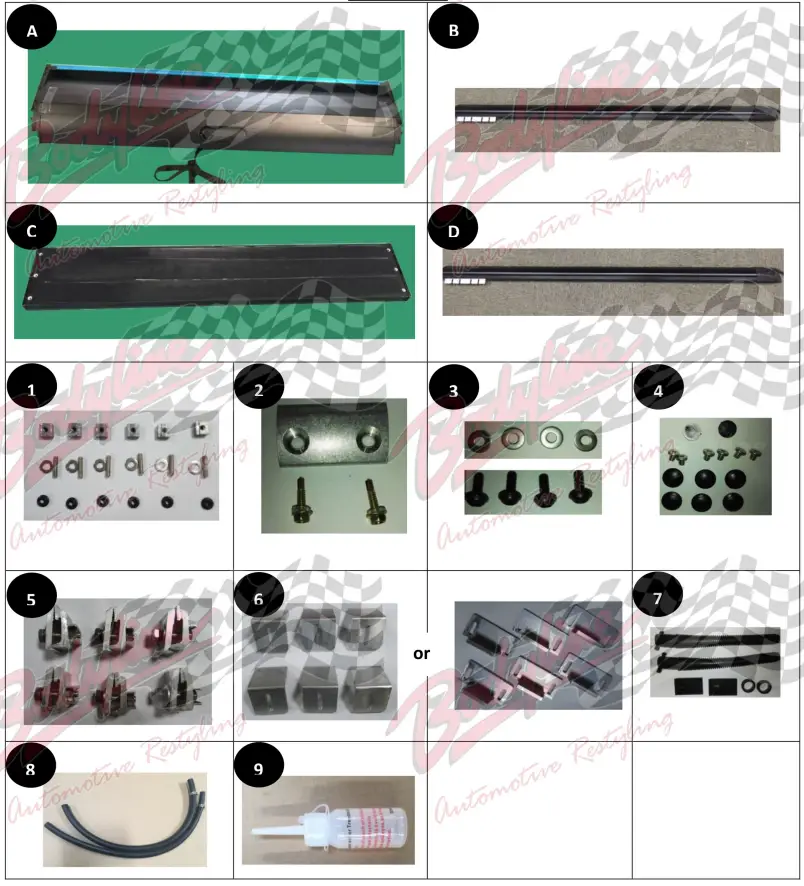

PART LIST

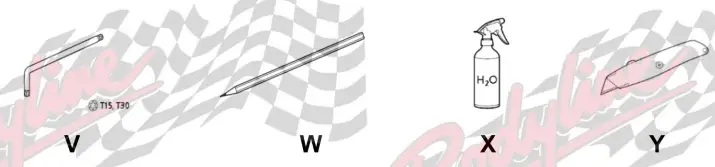

Tools and materials needed

installation Steps

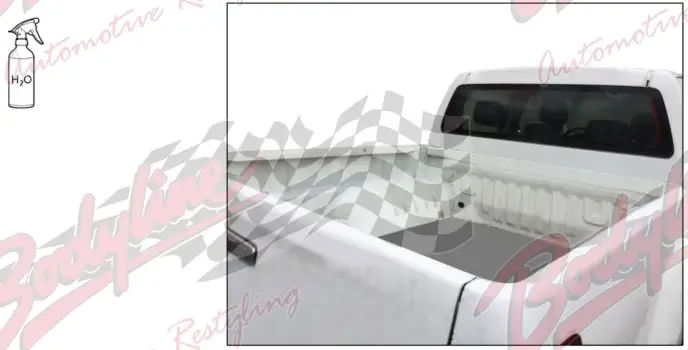

1. Cleaning the trunk and margin with water X, dismantling the other unnecessary part to clean and tidy.

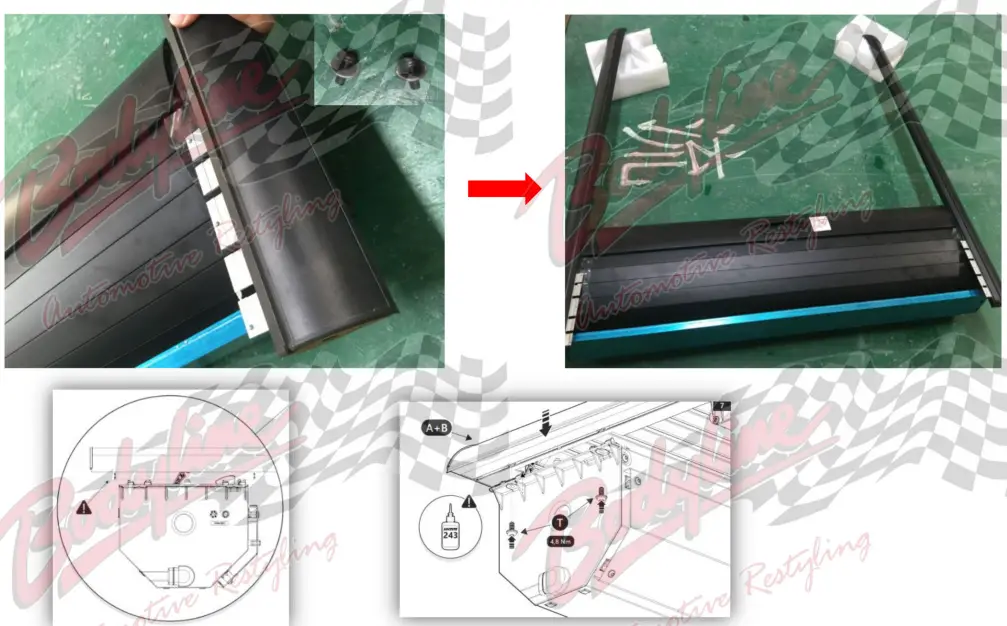

2. Install the track (B/D)on the rolling box (A) with 3

3. Install the waterproof rubber 7, the assembly way is the same on both sides.

4. Install the drain-pipe7, the assembly way is the same on both sides.

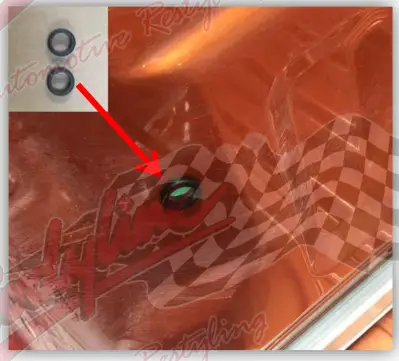

5. Find the 2 holes on the front of the trunk, then install the drain ring on it. Both sides should be the same.

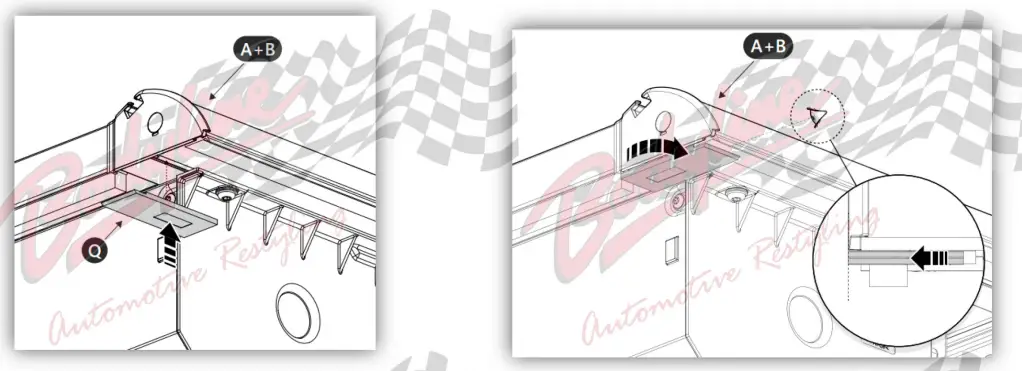

6. Install © plate on the tracks with 4.

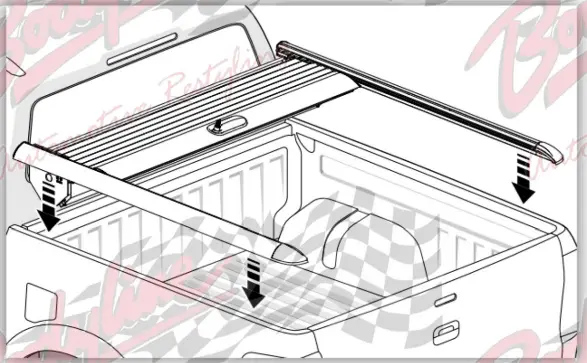

7. Put the roller shutter on the vehicle and adjust it to the appropriate position. Distance between the side tracks should be the same from the front to the rear part.

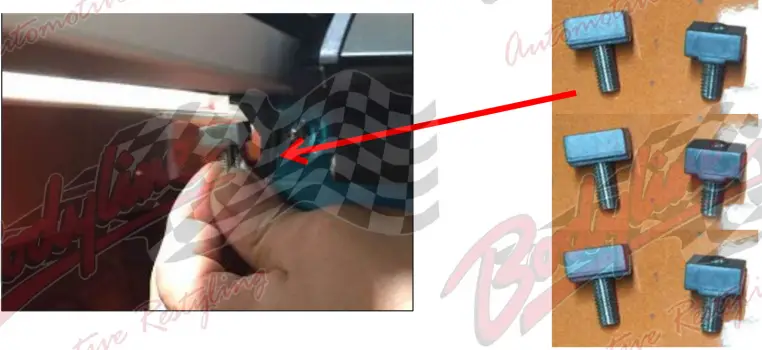

8. As the figure shows, screw in the 1 M6 bolt into the M6 square nut. Then put the bolts into the tracks, 3 pieces on each side.

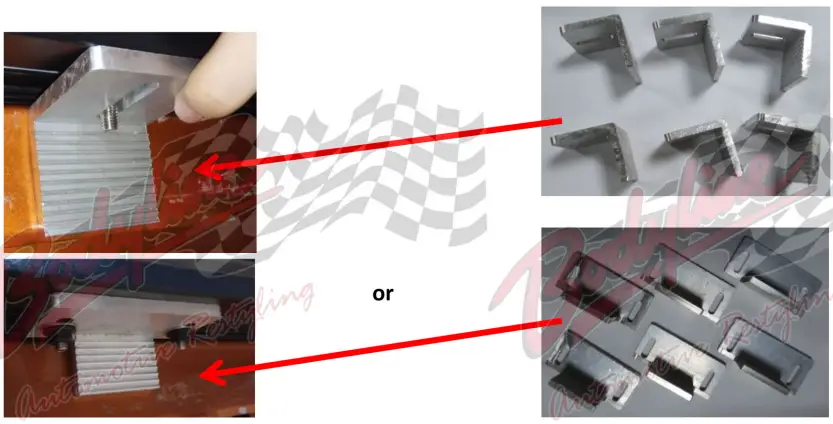

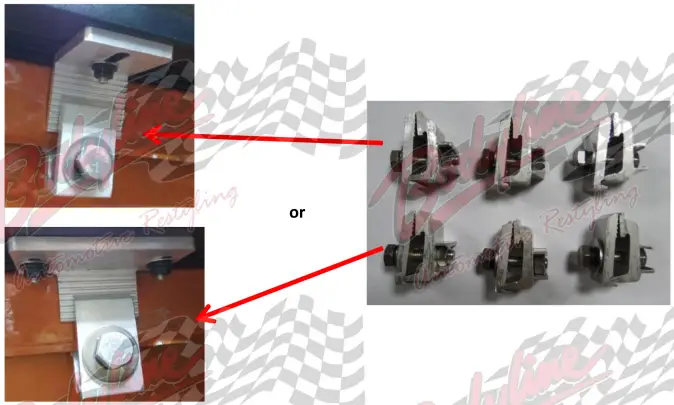

9. Install the 6 brackets, each bracket should keep in the same distance.

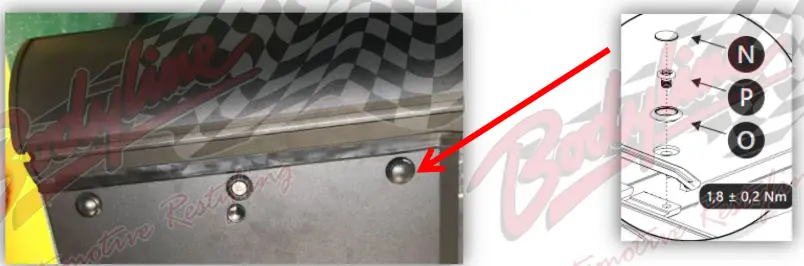

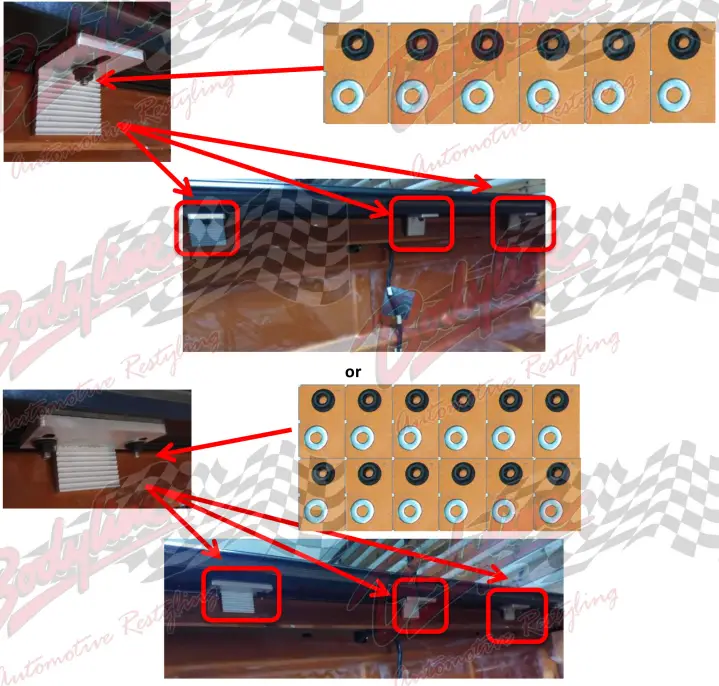

10. Screw in the 1 06 washer and M6 nut into the bolts, 3 sets on each sidetrack.

11. Fixed the tracks with the 5 brackets.

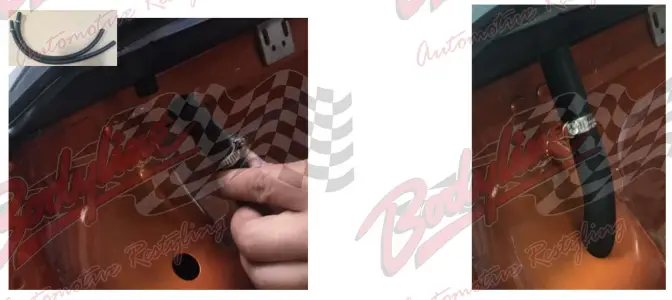

12. Install the 8 drain-pipe at the rear part of the tracks. (Both sides should be the same)

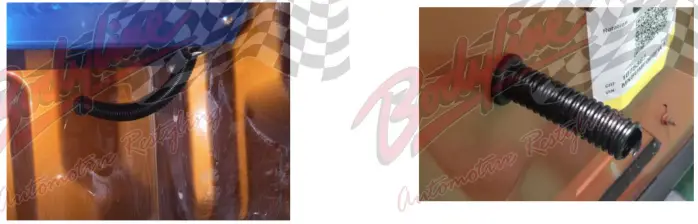

13. Threading the 7 drain-pipe outside of the trunk.
