LAZERLAMPS Ford Ranger Raptor 2018

LAZERLAMPS Ford Ranger Raptor 2018

WHATS’S INCLUDED

  • 2x Grille Mounting Brackets
  • 2x Cutter Guides
  • Anti-Theft Fasteners & Key
  •  Fitting Instructions

Additionally – Kit Includes:

  • 1x High Performance LED Spotlights (Linear-24 Elite)
  • 1x Single-Lamp Wiring Kit

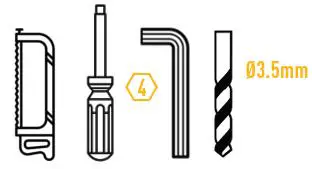

LAZERLAMPS Ford Ranger Raptor 2018-1

SIDE MOUNTING INFORMATION

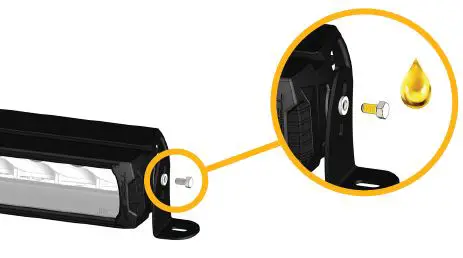

LAZERLAMPS Ford Ranger Raptor 2018-2

INSTALLATION PROCESS

LAZERLAMPS Ford Ranger Raptor 2018-5

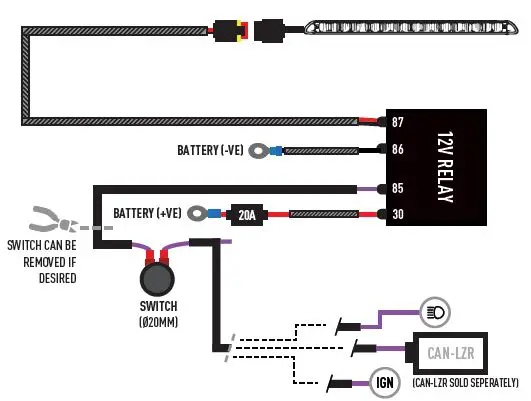

ELECTRICAL CONNECTION

LINEAR-24 ELITE

LAZERLAMPS Ford Ranger Raptor 2018-3

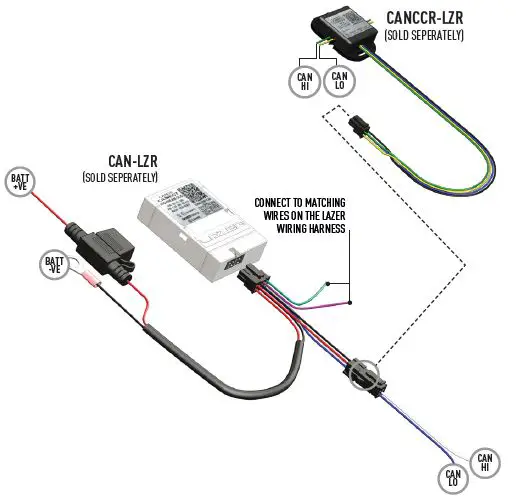

CANBUS INTEGRATION

For vehicles where it is not possible to locate a 12V high beam signal, it will be necessary to take the high beam signal from the vehicle’s CAN system. For vehicle specific CAN instructions, please download the “CANM8 Cannect” App.

LAZERLAMPS Ford Ranger Raptor 2018-4

ALSO AVAILABLE

LAZERLAMPS Ford Ranger Raptor 2018-6

WWW.LAZERLAMPS.COM
+44 (0)1992 677374
[email protected]
Lazer Lamps Ltd, Units 1&2 Harlow Mill Business Centre,Riverway, Harlow, Essex. CM20 2FD. United Kingdom
