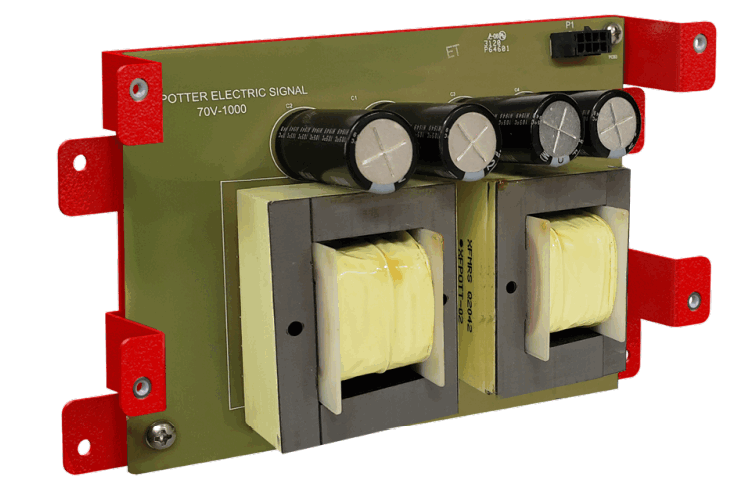

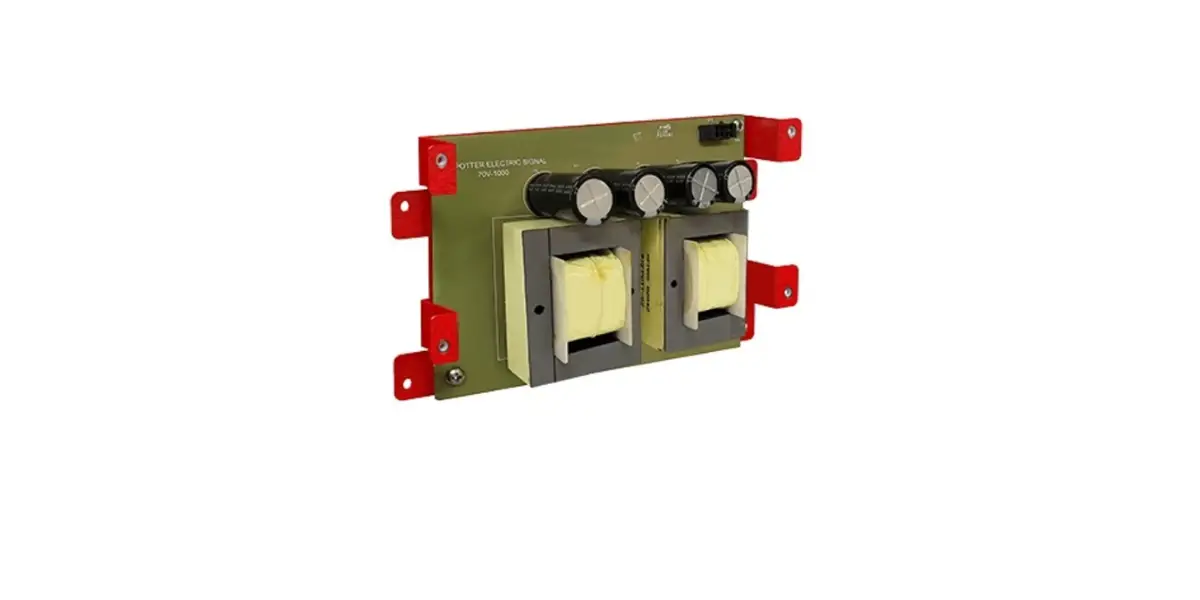

70V-1000 70V Extender
Owner’s Manual
Features
- Extends output voltage to 70VRMS on dual channel amplifiers
- Mounts in the DCA-5025 and DCA-10025 enclosure
- Equipped with a stacker bracket for secure mounting
Description
The 70V-1000 module extends the output voltage to 70V on the DCA5025 and DCA-10025. The 70V-1000 is equipped with a stacker bracket for secure mounting.
Technical Specifications
| Standby Current | 2 mA |
| Alarm Current | 562 mA |
| Operating Temperature | 0°C-49°C (32°F-120°F) |
| Operating Humidity Range | 10%-93% @ 30°C (86°F) noncondensing humidity |
Installation

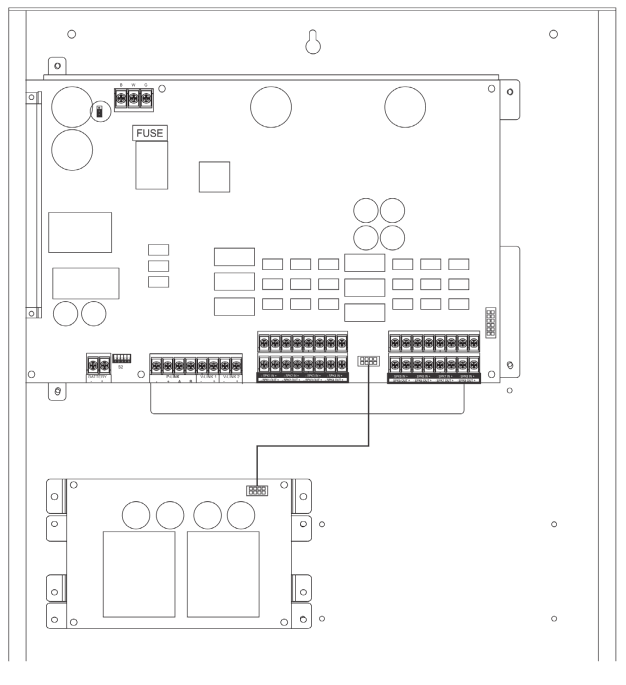

The 70V-1000 is connected to the DCA-5025 and DCA-10025 using a eight (8) pin ribbon cable. The connection is supervised, and power limited. The 70V-1000 must be mounted in the DCA enclosure. The module is equipped with a bracket for secure and accessible mounting.
Ordering Information
| Model | Description | Stock No. |
| 70V-1000 | 70V-1000 70V EXTENDER FOR DCA AMPLIFIERS W/STACKER BRACKET | 3520658 |
Potter Electric Signal Company, LLC
St. Louis, MO
Phone: 800-325-3936
www.pottersignal.com
