Kinan KED101S KVM Extender
Product Description
The KED101S USB DVI HDBaseTTM KVM extender integrates the latest HDBaseTTM technology and delivers HD DVI video, USB and stereo audio signals up to 100m via single Cat5 / Cat6 cable.
A complete set of KED101S including Transmitter (KED101S-TX) and Receiver (KED101S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices.
The KED101S enables remote high-speed access to a single computer at HD display resolution, while improving workplace ergonomics and separating employees from a noisy working environment.
Features
- Allows access to your computer from a remote console upto100
- Support USB keyboard and mouse
- Uncompressed DVI HD video, resolution up to 1920×1200@60Hz@100m
- Transparent USB 2.0 – Supports a wide range of USB devices includingkeyboards, mice, mass storage devices and printers. It provides4USBports on the Receiver and 1 USB on the Transmitter.
- Support individual 2-channel stereo audio, 1 LINEIN+ 1 LINEOUT
- Extends video, audio, USB, RS-232 signals via a single Cat5e/Cat6cable
- Easy to install – no software required – connecting cables tothedevices is all it takes
- Plug and play
- Support EDID transparent transmission

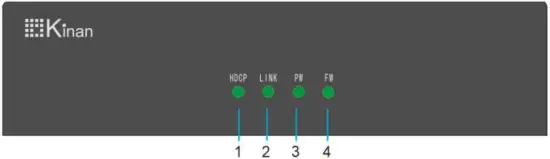

KED101S_RX (Front View)
No. | Function | Description |
1 | HDCP | Indicate video status |
2 | LINK | Indicate the connection status with local unit |
3 | PW | Indicate power status |
| 4 | FW | Device status |

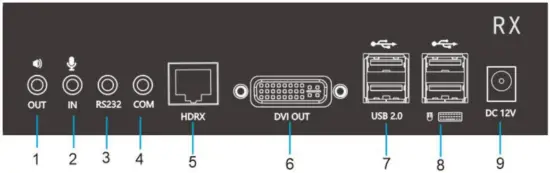

KED101S_RX (Rear View)
No. | Function | Description |
1 | OUT | Audio output |
2 | IN | MIC input |
3 | RS232 | Serial port |
4 | COM | Reserved port |
5 | HDRX | CAT5E/CAT6 cable connection port |
6 | DVI OUT | Display connection port |
7 | USB2.0 | Connect USB peripherals |
8 | USB port | Connect USB keyboard and mouse |
9 | Power socket | 12V power connection port |
KED101S_TX (Front View)
No. | Function | Description |
1 | HDCP | Indicate video status |
2 | LINK | Indicate the connection status with local unit |
3 | PW | Indicate power status |
| 4 | FW | Device status |

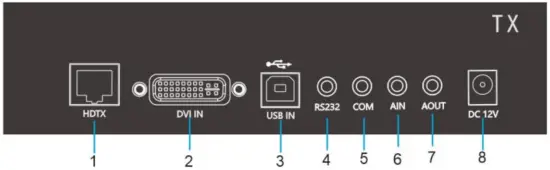

KED101S_TX (Rear View)
No. | Function | Description |
1 | HDTX | CAT5E/CAT6 cable connection port |
2 | DVI IN | Video input port |
3 | USB IN | Server USB Connection port |
4 | RS232 | Serial port |
5 | COM | Reserved port |
6 | AIN | Server MIC input port |
7 | AOUT | Server Audio output port |
8 | Power socket | 12V power connection port |

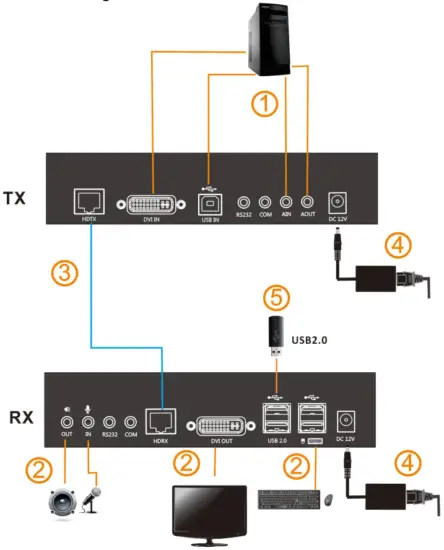

Connection Diagram
- Connect the KED101S_TX to PC’s video, USB port and audio port. (① in the above diagram)
- Connect the KED101S_RX to keyboard, mouse, display and audio device. (② in the above diagram)
- Connect KED101S_TX unit and KED101S_RX unit with CAT5E/CAT6 cable through the HDTX and HDRX ports. (Max 100m (③ in the above diagram)
- Power on the KED101S_TX and KED101S_RX unit. (④ in the above diagram)
Specifications
| Model | KED101S (TX) | KED101S (RX) | |
| Connector | DVI Input | 1 | NA |
| DVI Output | NA | 1 | |
| Power | 12V | 12V | |
| Network | RJ45 x1 | RJ45 x 1 | |
| Microphone | 3.5MM Stereo Jack (pink) x1 | 3.5MM Stereo Jack (pink) x1 | |
| Speaker | 3.5MM Stereo Jack (green) x1 | 3.5MM Stereo Jack (green) x1 | |
| USB | 1 | N/A | |
| USB 2.0 | N/A | USB x 4 | |
| Resolution | 1920×1200 @ 60 Hz | ||
| Cable | CAT 5E / 6 | ||
| I/R Value | DC12V / 2A | DC12V / 2A | |
| Power Consumption | 4W | 7W | |
| Operating Temperature | 0 ~ 50 ℃ | ||
| Storage Temperature | -20 ~ 60 ℃ | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Net Weight (kg) | 0.66 kg | 0.66kg | |
| Product Dimension (W × D × H) | 180mmx122mmx44mm | ||
| Package Dimension (W × D × H) | 260 mmx179 mm x102mm | ||
FQA
| No. | Issue | Solution |
| 1 | PW light does not light up | Check whether the extender is connected to the 12V power adapter |
| Check whether the power adapter is well connected with the power cord and the power strip | ||
| Check whether the power strip has mains power (100-240V) | ||
| 2 | LINK light does not light up | Check whether the TX/RX network cable is connected properly |
| Change a CAT5e/ CAT6/ CAT7 network cable that can be used normally | ||
| 3 | HDCP light does not light up | Check whether the DVI signal cable between RX and monitor, TX and PC host is well connected |
| Check whether the host PC or monitor is in normal working condition | ||
| Plug and unplug the DVI signal cable on the PC host |
