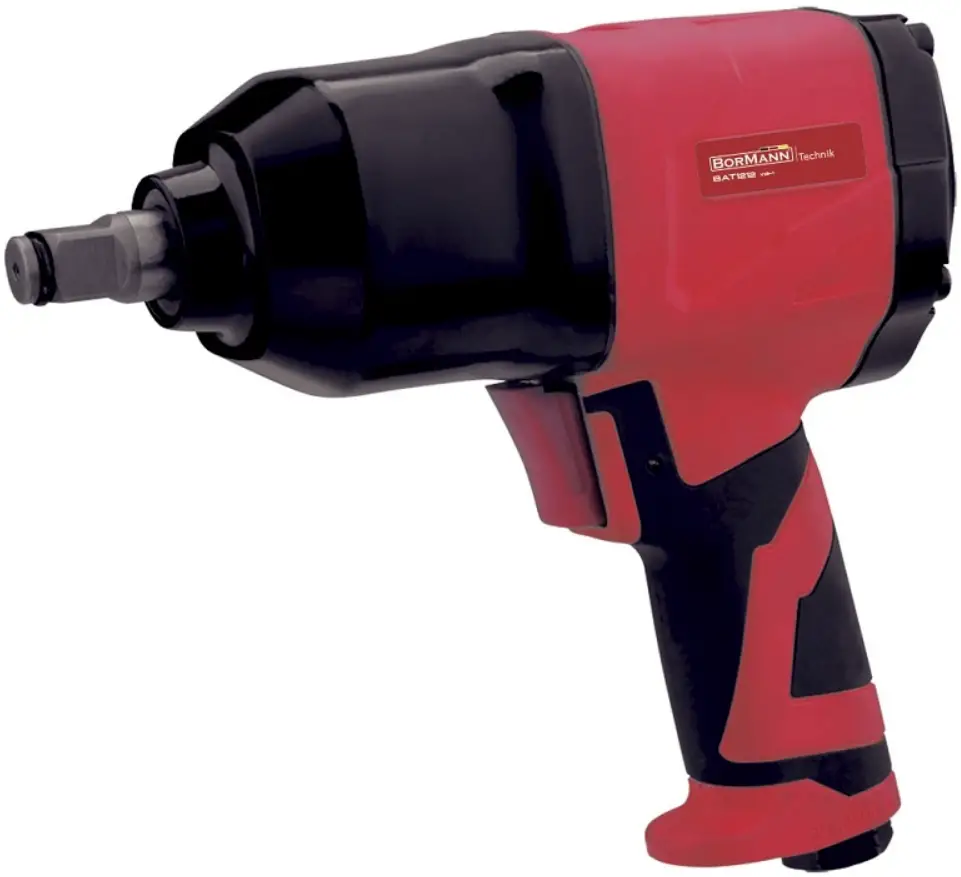

BORMANN BAT1212 Air wrench Owner’s Manual

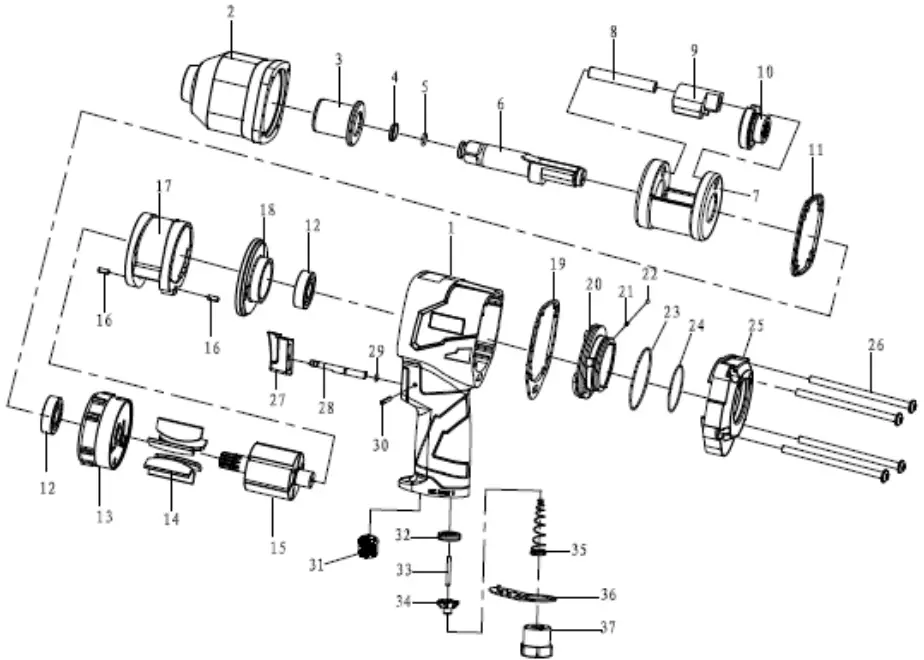

Description
| Ref. | Part# | Description | QTY |
| 1 | WFI-1170-0: | HOUSING | 1 |
| 2 | WEI-1170-02 | Front Housing | 1 |
| 3 | WEI-1070-11 | Oily Bushing | 1 |
| 4 | WFI-1070-12 | Anti—off Circle | 1 |
| 5 | GB/I5452.1-1992 641.5 | 0—Ring | 1 |
| 6 | WEI-1070-13 | Driving Shaft | 1 |
| 7 | WEI-1070-14 | Hammer Cage | 1 |
| 8 | WFI-1070-15 | Pin | 1 |
| 9 | WEI-1070-16 | Hammer Dog | 1 |
| 10 | WFI-1070-17 | Cam | 1 |
| 11 | WEI-1170-03 | Front Gasket | 1 |
| \12 | 6 8 /61020116 —212 9 4 | Bearing | 2 |
| 13 | WEI-1170-04 | Front Cylinder Ilea: | 1 |
| 14 | WE1-1070-19 | Blade | 6 |
| 15 | WF1-1070-20 | Rotor | 1 |
| 16 | GB/1179.2 —2000 3 • S | Straight pin | 2 |
| 17 | WEI-1170-05 | Cylinder | 1 |
| 18 | WEI-1170-06 | Back Cylinder Head | 1 |
| 19 | WF1-1170-07 | Rear Gasket | 1 |
| Ref. | Part# | Description | O’TY |
| 20 | 01 1170-08 | Adjustment Knob | 1 |
| 21 | WEI-1170-11 | spring | 1 |
| 22 | 22 (13/T 308-2002_3.0 | Steel Ball | 1 |
| 23 | GB/Tla i-1992 | 0-Ring | 1 |
| 24 | CH/T3452. 1-1992 35, 5.1 It | U-King | 1 |
| 25 | WFI-1170-09 | Cap | 1 |
| 26 | WFI-1170-12 | Screw | 1 |
| 27 | WFI-1170-10 | Trigger | 1 |
| 28 | WFI-5070-03 | Pin | 1 |
| 29 | 111/96.5191993 | 0-Ring | 1 |
| 30 | Miln2;2000 | Straight pin | 1 |
| 31 | WFS-1038A-24 | muffle cotton | 1 |
| 32 | WF1-3071-04 | Eye ring | 1 |
| 33 | WFI-5070-08 | Valve pole | 1 |
| 34 | WFI-3071-06 | Valve | 1 |
| 35 | WFI-3071-07 | Spring | 1 |
| 36 | WFI-2070-10 | Muffle Cover | 1 |
| 37 | WFI-3071-08 | Air inlet connector | 1 |
Technical Data
- Bolt Capacity: 1/2″ (68mm)
- Speed: 7500rpm
- Max Torque: 340Nm
- Air Inlet: 1/4″
- Working Pressure: 90Psi
DISPOSE OF PACKAGING RESPONSIBLY
DO NOT DISPOSE OD ELECTRICAL GOODS IN HOUSEHOLD WASTE
